Description

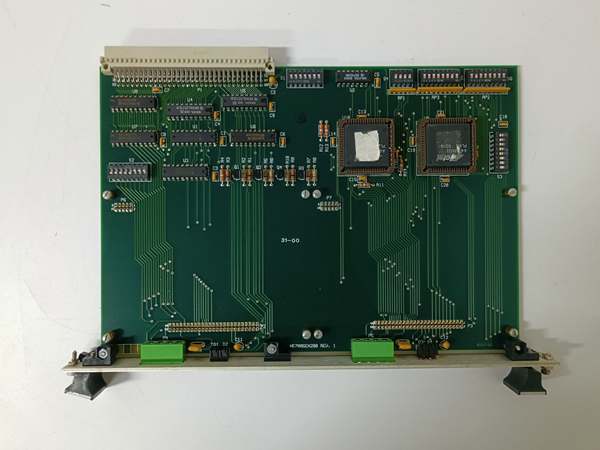

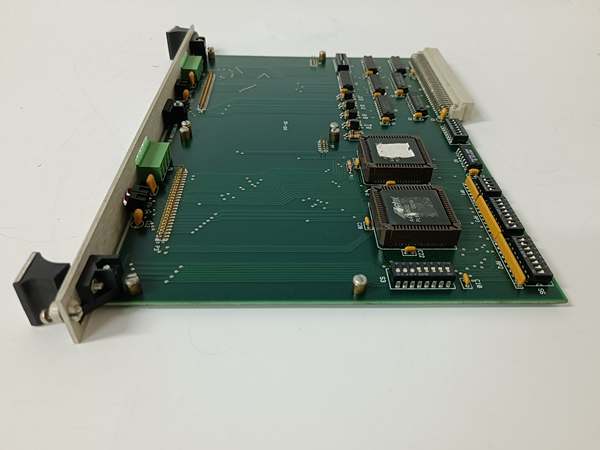

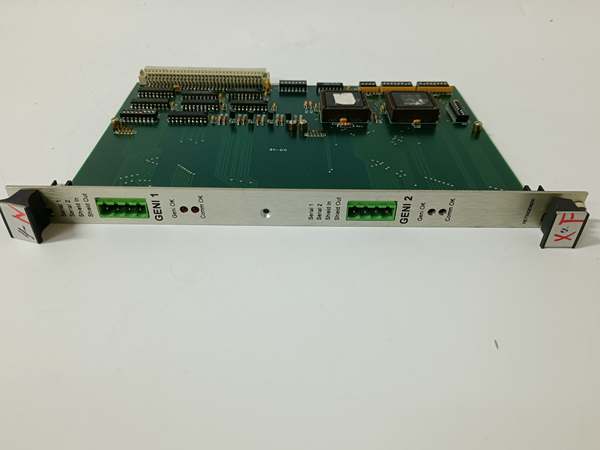

GE HE700GEN200C Universal Input Module

Product Overview

The GE HE700GEN200C is a versatile universal input module belonging to GE’s esteemed RX3i PacSystem family, engineered to deliver exceptional flexibility and reliability in industrial automation data acquisition. As a key component in distributed control systems, GE HE700GEN200C is designed to accept multiple types of input signals—including analog, digital, and temperature—eliminating the need for separate specialized modules. This adaptability makes GE HE700GEN200C a cost-effective solution for diverse industrial environments, from manufacturing plants to energy facilities, where it seamlessly integrates with GE’s RX3i PLCs to provide accurate and real-time data for critical control decisions.

What defines GE HE700GEN200C is its ability to balance multi-signal compatibility with high precision. Equipped with advanced signal conditioning technology, it ensures stable data conversion even in noisy industrial settings, leveraging GE’s decades of expertise in industrial control to maintain signal integrity. Whether deployed in harsh chemical plants or clean pharmaceutical facilities, GE HE700GEN200C delivers consistent performance, supporting smart manufacturing initiatives by enabling comprehensive process monitoring and data-driven optimization.

Technical Specifications

Parameter Name | Parameter Value ———|——– Product Model | HE700GEN200C Manufacturer | GE General Electric Product Type | Universal Input Module Series | RX3i PacSystem Input Channels | 8 Universal Channels (Configurable per Channel) Supported Input Types | 4-20mA, 0-10V, Thermocouple (J/K/T/E/R/S/B/N), RTD (Pt100/Pt1000) Input Resolution | 16-bit (Analog), 17-bit (Temperature) Accuracy | ±0.1% of Full Scale (Analog), ±0.2°C (Temperature, Pt100) Sampling Rate | Up to 100 Samples/Second per Channel Communication Interface | RX3i Backplane (Compatible with PacDrive and PacControl) Operating Voltage | 5V DC (from RX3i Chassis) Operating Temperature Range | 0°C to 60°C Storage Temperature Range | -40°C to 85°C Protection Rating | IP20 (Module), IEC 61010-1 Certified Physical Dimensions | 100mm × 80mm × 25mm (Single-Slot Chassis Mount) Power Consumption | Max 2.5 W

HE700GEN200C

Main Features and Advantages

Multi-Signal Versatility: HE700GEN200C offers 8 fully configurable universal channels, each capable of accepting analog signals (4-20mA, 0-10V), thermocouples, and RTDs—all without hardware modifications. This eliminates the need to stock multiple specialized modules, reducing inventory costs and simplifying system design for applications requiring mixed signal monitoring, such as food processing lines where both temperature and pressure data are critical.

High Precision and Stability: Equipped with 16-bit analog resolution and advanced signal filtering, HE700GEN200C minimizes the impact of electrical noise and interference common in industrial environments. For temperature measurements, its 17-bit resolution and built-in cold-junction compensation ensure accurate readings even in fluctuating ambient conditions, making it ideal for pharmaceutical manufacturing where strict temperature control is mandatory.

Seamless RX3i Integration: Designed exclusively for GE’s RX3i PacSystem, HE700GEN200C plugs directly into RX3i chassis without additional adapters, leveraging the system’s high-speed backplane for fast data transfer to the PLC. It is fully compatible with GE’s PacControl software, enabling intuitive channel configuration, calibration, and diagnostic monitoring—reducing setup time and simplifying maintenance.

Industrial-Grade Durability: HE700GEN200C meets IEC 61010-1 safety standards and features a rugged design that withstands vibration (2 g rms) and transient voltage surges. Its wide operating temperature range (0°C to 60°C) and IP20 protection ensure reliable performance in dusty factory floors, outdoor control cabinets, and other challenging industrial settings, minimizing downtime due to environmental stress.

Application Field

In food and beverage manufacturing, HE700GEN200C plays a pivotal role in process monitoring, using its universal channels to track temperature (via thermocouples) in ovens, pressure (via 4-20mA transmitters) in mixing tanks, and level (via 0-10V sensors) in storage vessels. This unified data collection enables operators to maintain consistent product quality and comply with FDA regulations, as HE700GEN200C ensures accurate and traceable measurements.

The automotive industry relies on HE700GEN200C for assembly line monitoring, where it collects data from RTDs measuring engine component temperatures and analog sensors tracking robotic arm pressure. Its fast sampling rate (up to 100 samples/second) ensures real-time feedback to the RX3i PLC, enabling immediate adjustments to prevent equipment damage and ensure precise assembly—critical for high-volume production environments.

In renewable energy facilities, such as solar farms and wind power plants, HE700GEN200C monitors key operational parameters: RTDs track inverter temperatures, 4-20mA signals measure solar panel current, and digital inputs detect equipment status. Its compatibility with RX3i systems allows integration into centralized control platforms, helping operators optimize energy output, predict maintenance needs, and ensure system reliability in remote locations.

Related Products

HE700GEN201C: 16-channel variant of HE700GEN200C, offering double the input capacity for large-scale applications like chemical processing plants with extensive monitoring points.

HE700OUT100C: Complementary analog output module for RX3i systems, working with HE700GEN200C to send control signals to actuators and valves based on collected data.

IC695CPU315: RX3i PLC CPU module, the central controller that processes data from HE700GEN200C to execute control logic in automation systems.

HE700DIG200C: Digital I/O module for RX3i, providing discrete signal handling to complement HE700GEN200C’s analog and temperature monitoring capabilities.

IC695PSD140: Power supply module for RX3i chassis, delivering stable 5V DC to HE700GEN200C and other installed modules.

HE700HSC100C: High-speed counter module, compatible with HE700GEN200C for applications requiring both process monitoring and speed measurement, such as conveyor systems.

IC754VSF15CTD-JH: GE VersaMax HMI, displaying real-time data from HE700GEN200C to provide operators with intuitive process visibility.

VMIVME2510B-100: GE VMEbus processor module, integrable with HE700GEN200C via gateway modules for legacy VME-based automation systems.

HE700GEN200C

Installation and Maintenance

Pre-installation preparation: Before installing HE700GEN200C, ensure the RX3i chassis is powered off and grounded to prevent ESD damage. Verify the chassis slot is compatible with RX3i PacSystem modules and that the backplane power supply provides stable 5V DC. Label input wires according to signal type (analog/temperature) to avoid misconnection, and use shielded cables for analog signals to reduce interference. Pre-configure channel settings via PacControl software if possible, to streamline on-site setup.

Maintenance recommendations: Conduct bi-monthly visual inspections of HE700GEN200C, checking for loose wiring and dust accumulation—use compressed air (max 0.4 MPa) to clean module vents. Perform quarterly calibration using GE’s calibration tools to maintain measurement accuracy, especially for temperature channels. Use PacControl’s diagnostic features monthly to monitor module health and signal quality, addressing issues like drift or noise promptly. Avoid exposing HE700GEN200C to direct moisture or corrosive gases to extend service life.

Product Guarantee

GE General Electric offers a 30-month quality guarantee for HE700GEN200C, covering manufacturing defects, signal conversion errors, and backplane interface issues under normal operating conditions. Our global technical support team provides 24/7 assistance, including remote calibration guidance, software troubleshooting, and on-site service for complex issues. Customers receive free access to PacControl software updates and technical documentation for HE700GEN200C throughout the guarantee period. For priority clients, we ensure a 72-hour replacement for defective modules, minimizing production downtime. This guarantee reflects our confidence in the product’s reliability and our commitment to supporting industrial automation customers worldwide.
