GE VMIVME2510B-100 VMEbus Processor Module

Product Overview

The GE VMIVME2510B-100 is a high-performance VMEbus processor module developed by GE’s Industrial Systems division, specifically engineered to meet the stringent requirements of mission-critical industrial control and embedded computing applications. As a core component of VME-based automation systems, GE VMIVME2510B-100 integrates a powerful processing unit with robust I/O capabilities, enabling real-time data processing, complex control algorithm execution, and seamless communication with peripheral devices. Its adherence to the VMEbus standard (VME64x) ensures exceptional compatibility with existing VME chassis and components, making it a preferred choice for upgrading legacy systems or building new high-reliability control platforms.

What makes GE VMIVME2510B-100 stand out is its balance of computing power and industrial ruggedness. Equipped with a high-speed processor and ample memory, it excels in applications requiring fast response times, such as industrial robotics, power grid control, and aerospace test systems. Whether deployed in harsh factory floors or controlled laboratory environments, GE VMIVME2510B-100 delivers consistent performance, leveraging GE’s decades of expertise in industrial computing to ensure operational stability and long-term reliability.

Technical Specifications

Parameter Name | Parameter Value ———|——– Product Model | VMIVME2510B-100 Manufacturer | GE General Electric Product Type | VMEbus Processor Module Bus Standard | VME64x, ANSI/IEEE 1014-1987 Processor | Intel Core i7-6700TE (2.4 GHz, 4 Cores, 8 Threads) Cache Memory | 8 MB L3 Cache System Memory | 16 GB DDR4-2133 SODIMM (Max Expandable to 32 GB) Storage | 256 GB SATA III SSD (Optional 512 GB/1 TB Upgrade) Operating System | Windows 10 IoT Enterprise, Linux Ubuntu 20.04 LTS Communication Interfaces | 2 × Gigabit Ethernet (RJ45), 2 × USB 3.0, 1 × RS-232, 1 × RS-485 VMEbus Features | 32-bit/64-bit Data Path, 132 MB/s Transfer Rate Operating Temperature Range | -40°C to 70°C Protection Rating | IP20 (Module), Conformal Coating Optional Physical Dimensions | 160mm × 100mm × 25mm (VME Single-Slot) Power Consumption | Max 35 W @ 5V DC

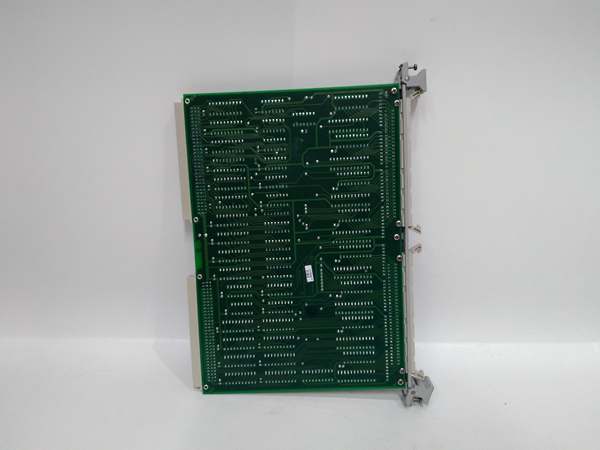

GE VMIVME2510B-100

Main Features and Advantages

Powerful Processing Performance: VMIVME2510B-100 is powered by the Intel Core i7-6700TE processor, delivering exceptional computing power for complex control tasks and real-time data analysis. The 4-core/8-thread architecture and 8 MB L3 cache ensure smooth execution of multi-tasking applications, such as simultaneous process control and data logging, without performance degradation—critical for time-sensitive industrial operations.

Flexible VMEbus Integration: Complying with the VME64x standard, VMIVME2510B-100 seamlessly integrates with a wide range of VMEbus peripherals, including I/O modules, communication cards, and memory boards from GE and third-party vendors. The 64-bit data path and 132 MB/s transfer rate enable high-speed data exchange between the processor and other system components, eliminating bottlenecks in large-scale control systems.

Ruggedized for Industrial Environments: Designed to operate in extreme conditions, VMIVME2510B-100 features a wide operating temperature range of -40°C to 70°C and optional conformal coating to protect against moisture, dust, and chemical corrosion. The robust mechanical design withstands vibration (5 g rms) and shock (50 g peak), making it suitable for deployment in mobile machinery, offshore platforms, and military applications.

Versatile Software Support: VMIVME2510B-100 supports both Windows 10 IoT Enterprise and Linux Ubuntu 20.04 LTS, offering flexibility for different application requirements. It is compatible with GE’s Proficy Control software and third-party industrial programming tools, enabling easy development and deployment of control applications—reducing software development time and ensuring compatibility with existing workflows.

Application Field

In industrial automation and robotics, VMIVME2510B-100 serves as the central processing unit (CPU) for high-precision motion control systems. It processes sensor data in real time to adjust robot arm movements, ensuring accurate positioning and smooth operation in automotive welding lines, electronic component assembly, and packaging machinery. The fast data transfer rate via VMEbus allows seamless coordination with I/O modules, enabling quick response to changing production demands.

The energy sector relies on VMIVME2510B-100 for power grid monitoring and control, where its rugged design and reliable performance ensure continuous operation in remote substations and power plants. It processes data from smart meters, transformers, and protective relays to optimize power distribution, detect faults, and trigger automatic safety measures—helping maintain grid stability and prevent blackouts.

In aerospace and defense applications, VMIVME2510B-100 is used in test and measurement systems for aircraft engines, missile guidance, and radar systems. Its high computing power handles complex data analysis from multiple sensors, while the ruggedized design withstands the harsh conditions of test facilities and field deployments. Additionally, it finds applications in medical equipment such as diagnostic imaging systems, where its stable performance ensures accurate data processing and reliable operation.

Related Products

VMIVME2510B-200: High-performance variant of VMIVME2510B-100 with Intel Core i7-7700TE processor and 32 GB RAM, designed for compute-intensive applications like AI-based predictive maintenance.

VMIVME2500B-100: Entry-level VMEbus processor module, featuring Intel Core i5-6500TE, ideal for cost-sensitive projects with moderate processing requirements, complementary to VMIVME2510B-100.

VMIVME3120: 16-channel analog I/O module, perfectly paired with VMIVME2510B-100 to collect and process analog signals from temperature, pressure, and flow sensors in industrial processes.

VMIVME7750: Gigabit Ethernet switch module for VMEbus systems, extending VMIVME2510B-100’s network connectivity to enable remote monitoring and control across distributed automation systems.

VMIVME6569: Digital I/O module with 32 input/output channels, supporting VMIVME2510B-100 in controlling actuators, valves, and indicator lights in manufacturing and process control applications.

VMIVME9000: 19-inch VMEbus chassis, accommodating VMIVME2510B-100 and up to 15 peripheral modules, providing a compact and integrated control system platform.

VMIVME2510B-PWR: Dedicated power management module for VMIVME2510B-100, ensuring stable 5V DC supply and protecting against voltage spikes and power surges.

IC754VSF15CTD-JH: GE VersaMax HMI, compatible with VMIVME2510B-100 to provide an intuitive user interface for monitoring and controlling VMEbus-based automation systems.

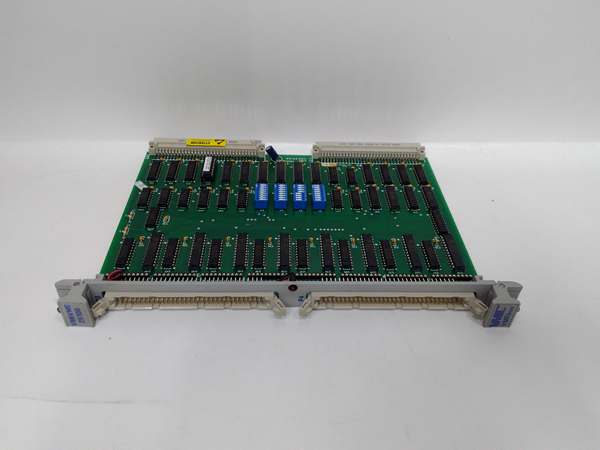

GE VMIVME2510B-100

Installation and Maintenance

Pre-installation preparation: Before installing VMIVME2510B-100, ensure the VMEbus chassis is powered off and properly grounded to prevent electrostatic discharge (ESD) damage. Verify that the chassis slot supports VME64x standard and that the backplane power supply provides stable 5V DC. Check the module’s conformal coating (if equipped) for any damage, and prepare the necessary mounting screws and ESD wrist strap. Confirm compatibility with existing VME peripherals and install the required operating system and drivers on the SSD before deployment.

Maintenance recommendations: Conduct quarterly inspections of VMIVME2510B-100, focusing on cleaning the module’s cooling vents with compressed air (max 0.3 MPa) to remove dust and ensure proper heat dissipation. Monitor CPU temperature and SSD health via system diagnostic tools monthly to detect potential issues early. Perform annual firmware and driver updates using GE’s industrial software suite to enhance VMIVME2510B-100’s performance and security. When replacing the module, always use an ESD wrist strap and avoid touching the gold contacts to prevent corrosion and signal interference.

Product Guarantee

GE General Electric provides a 36-month quality guarantee for VMIVME2510B-100, covering manufacturing defects, processor and memory failures, and VMEbus interface issues under normal operating conditions. Our global technical support team offers 24/7 assistance, including remote troubleshooting, software configuration guidance, and on-site service for critical applications. Customers receive free access to firmware updates and technical documentation for VMIVME2510B-100 throughout the guarantee period. For priority service clients, we ensure a 48-hour replacement for defective modules, minimizing operational downtime. This guarantee underscores our confidence in the product’s reliability and our commitment to supporting industrial customers worldwide.
