GE VME7740-750 | 6U Single Slot VME Pentium M SBC – Field Service Notes

  • 型号: VME7740-750
  • 替代零件号: VMIVME-7740-750
  • 产品系列:GE Fanuc / Abaco SBC 家族
  • 硬件类型:6U单槽被动冷却VME单板计算机
  • 主要特点:更高的2.0 GHz奔腾M CPU,适用于更重的处理负载(-740变体)
  • 主要领域应用:遗留涡轮机辅助控制、DCS节点处理和VME机架主任务
In Stock
Manufacturer:
Part number: GE VME7740-750
Our extensive catalogue, including : GE VME7740-750 , is available now for dispatch to the worldwide. Brand:
The listed price is not final; the actual selling price is negotiable based on current market conditions.

Description

硬数据:技术规格

  • 处理器:Intel Pentium M 760 @ 2.0 GHz
  • 芯片组:Intel 855GME 北桥 + ICH4 南桥
  • 最大内存:2 GB DDR SDRAM(单个SODIMM插槽)
  • VME总线:VME64,支持主/从模式,支持VITA 1.5协议
  • 网络端口:2×10/100/1000千兆以太网

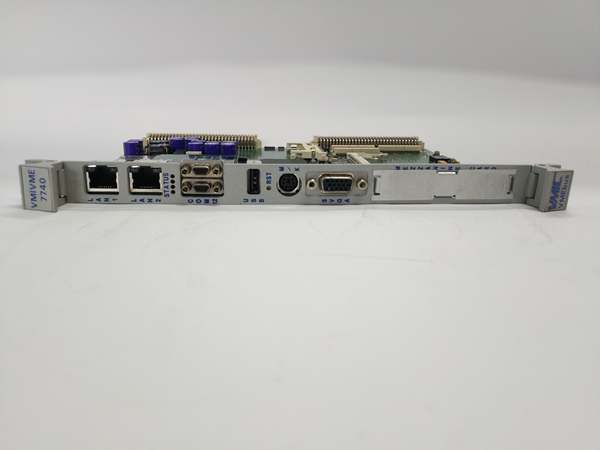

  • 本地输入/输出:4×USB 2.0,1×RS-232,SVGA,PS/2 键盘/鼠标
  • 扩展:3.3V PMC 介面扩展插槽
  • 工作温度0°C 到 +55°C 商用环境等级
  • 功耗:典型连续负载24W
  • 冷却方法:被动散热,零移动部件
VMIVME-7740-740

VMIVME-7740-740

它解决的实际问题

较慢的1.8 GHz -740硬件在处理大量数据记录和分段的工厂网络流量时存在困难。 aging的单核VME平台缺乏更新的固件和扩展的I/O轮询周期所需的容量。

你通常会在哪里找到它:

  • 遗留下来的发电厂VME控制机架用于平衡系统
  • 炼油厂分布式控制柜具有高模拟I/O吞吐量
  • 工厂OEM机器依赖于长周期VME背板基础设施

结论:这是对平台进行更高时钟频率的即插即用升级,可以在不修改机箱的情况下处理增加的数据吞吐量。

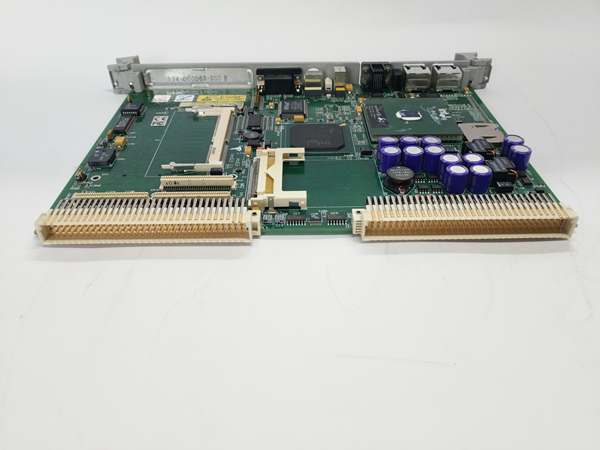

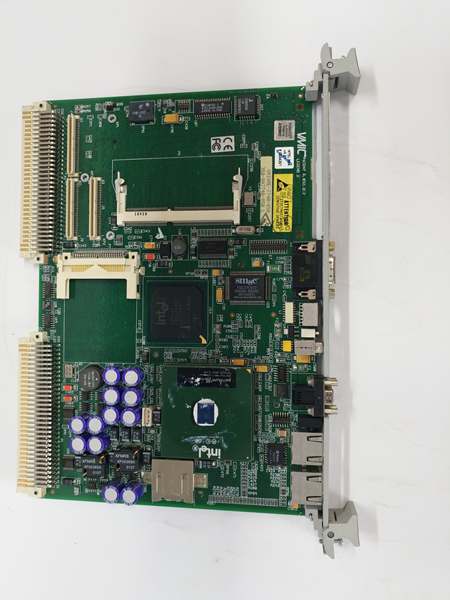

Hardware Architecture & Under-the-Hood Logic

This single-slot VME SBC uses a compact mobile-grade processor platform built for long-cycle industrial runtime, no onboard fan to fail in dusty cabinet air.

  1. 2.0 GHz Pentium M core handles application execution, firmware tasks, and network packet processing.
  2. 855GME chipset manages memory addressing, video output, and core system timing.
  3. Dedicated VME bridge IC controls backplane arbitration, interrupt routing, and block data transfers.
  4. Dual isolated Ethernet channels separate control network traffic from auxiliary plant LAN connections.
  5. Hardware watchdog timer monitors system health; triggers hard reset during bus lockups or software hangs.



Field Service Pitfalls: What Rookies Get Wrong

Techs swap -750 into racks calibrated for the lower-watt -740. Slightly higher current draw can overload marginal backplane power supplies in older cabinets.

  • Field Rule: Verify rack 5VDC current headroom; audit total slot load before mixing -740 and -750 variants.

Poor Heat Sink Contact & Airflow BlockageRookies install tight cable runs directly over the onboard heat sink. Ambient heat builds fast, causing thermal throttling and intermittent communication drops.

  • Quick Fix: Clear 1 inch of open airflow above the heat sink; keep cabinet filter media cleaned on 90-day intervals.

Incorrect PMC Voltage UsageImproper 5V PMC module installation fries on-board PCI-X circuitry. No overcurrent protection exists for miskeyed mezzanine cards.

  • 现场规则:仅安装3.3V带键PMC设备;切勿在机架电源活动时热插拔插卡。
VMIVME-7740-740

VMIVME-7740-740

商业可用性和定价说明

请注意: 列出的价格仅供参考,不具有约束力。最终价格和条款将根据当前市场条件和供应情况协商确定。
