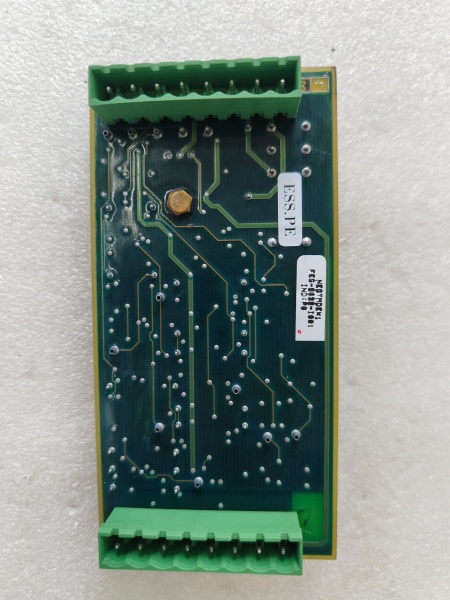

GE L54E2900YE00 | MDEX1 Data Acquisition Board for Microrec K4.1 – Field Service Notes

  • Model:
  • Alt. P/N: MDEX1 (Machine Data Exchange)
  • Product Series: GE / Alstom Microrec K4.1 AVR System
  • Hardware Type: High-speed signal acquisition & data exchange board
  • Key Feature: Isolated analog/digital I/O, real-time generator parameter sampling
  • Primary Use: Connects VT/CT sensors to AVR; transmits critical electrical data to excitation controller
Get a Quote
In Stock
Manufacturer:
Part number: L54E2900YE00
Our extensive catalogue, including : L54E2900YE00 , is available now for dispatch to the worldwide. Brand:
The listed price is not final; the actual selling price is negotiable based on current market conditions.

Description

Hard-Numbers: Technical Specifications

  • Processor: On-board DSP/FPGA for real-time signal processing
  • Analog Inputs: 8–16 channel isolated VT/CT (16-bit ADC, 0–5V / 0–1mA)
  • Digital I/O: 12× isolated DI / 8× DO (24V DC, 500mA)
  • Communication: MDEX1 proprietary bus + Modbus TCP/IP
  • Isolation: 2500V rms field-to-backplane
  • Power: 5V DC / 24V DC, 12W max
  • Temp: -40°C to +70°C (G3 conformal coating)
  • Connector: 96-pin DIN 41612
  • Cert: IEC 61508 SIL 2, Class I Div 2 hazardous location
L54E2900XK00

L54E2900XK00

The Real-World Problem It Solves

AVR systems rely on precise voltage/current feedback. This board eliminates signal noise, ground loops, and EMI—common causes of unstable voltage regulation and false generator trips.Typical Installations:

  • Gas/steam turbine generator excitation panels
  • Combined-cycle power plant AVR control racks
  • Industrial generator sets (refineries, offshore platforms)



Hardware Architecture & Under-the-Hood Logic

  1. Signal Input: Isolated VT/CT analog signals feed precision conditioning circuits.
  2. Conversion: 16-bit ADC digitizes signals; DSP filters and scales data.
  3. Data Exchange: MDEX1 bus transmits processed values to main AVR CPU (L54E2900XK00).
  4. Redundancy: Dual-path communication prevents data loss in redundant systems.
  5. Diagnostics: On-board self-test logs faults to non-volatile memory.



Field Service Pitfalls: What Rookies Get Wrong

1. Ground Loop Isolation Failure

  • Mistake: Sharing ground between field sensors and backplane.
  • Symptom: Signal drift, unstable AVR output, over-excitation faults.
  • Fix: Use only isolated signal cables; terminate shields at panel ground (single-point).2. Mismatched Firmware with XK00 CPU
  • Mistake: YE00 firmware not synced with main AVR board (XK00).
  • Symptom: ” COMM ERR” but no hardware faults.
  • Rule: Match firmware revisions; run full system calibration post-update.3. Overloading Analog Channels
  • Mistake: Daisy-chaining multiple CTs on one input.
  • Symptom: Signal saturation, flatlined readouts.
  • Fix: One CT/VT per channel; use external transducers for high-current loads.
L54E2900XK00

L54E2900XK00
