GE IS420YAICS1B | High Density Analog I/O Pack for Mark VIe – Field Service Notes

  • Model: IS420YAICS1B
  • Alt. P/N: YAICS1B
  • Product Series: GE Speedtronic Mark VIe / Mark VIeS
  • Hardware Type: Multifunction isolated analog input/output pack
  • Key Feature: 16-bit high-resolution conversion with full channel-to-chassis galvanic isolation
  • Primary Field Use: Captures process analog signals and drives analog outputs for turbine and BOP control loops
Get a Quote
In Stock
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide. Brand:
The listed price is not final; the actual selling price is negotiable based on current market conditions.

Description

Hard-Numbers: Technical Specifications

  • Protocol Support: IONet, IEC 61158 industrial communication standards
  • Port Count: 2 × 100 Mbps redundant IONet Ethernet ports
  • Signal Resolution: 16-bit ADC / DAC conversion
  • Operating Temperature: -40°C to +70°C continuous duty
  • Isolation Rating: 1500 Vrms field-to-backplane isolation
  • Power Draw: 5.3 W typical operating load
  • Analog Inputs: 10 configurable channels (4–20mA, 0–10VDC, low-level millivolt)
  • Analog Outputs: 2 × 0–20mA current loop outputs

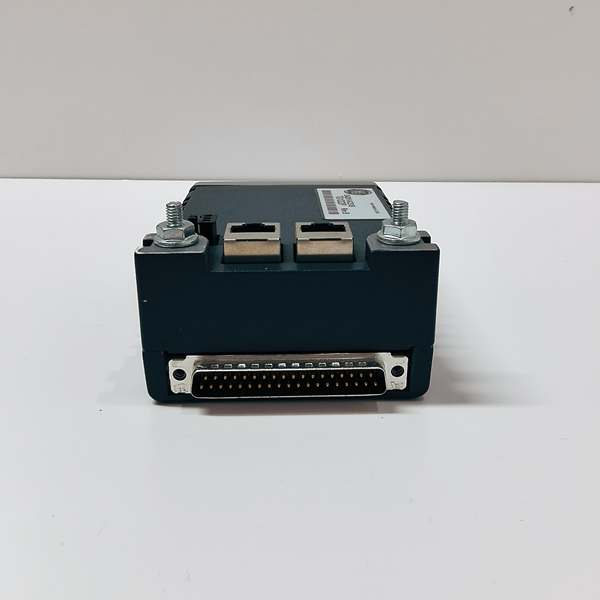

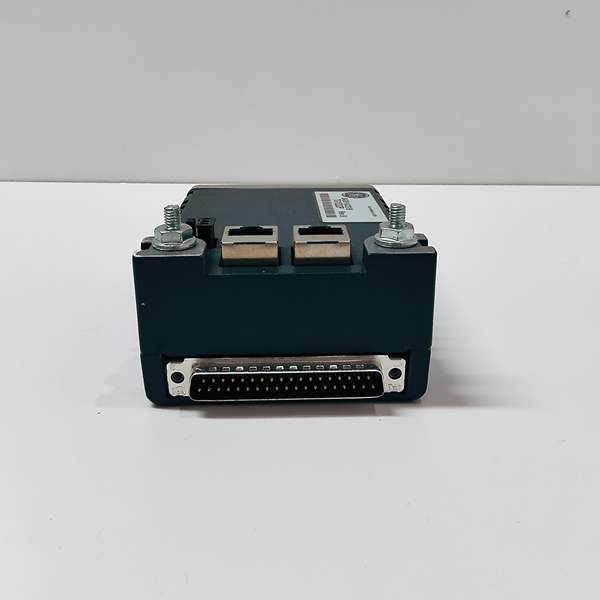

  • Connector Type: 37-pin D-Sub field termination interface
  • Environmental Rating: G3 conformal coating, Class I Div 2 rated

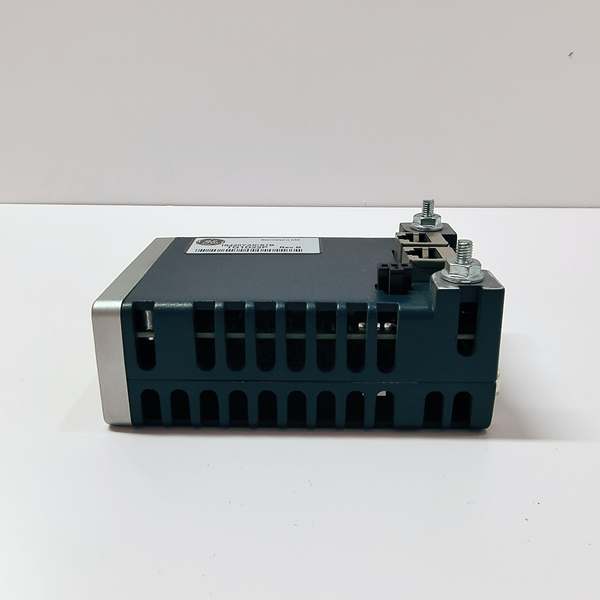

GE IS420YAICS1B

GE IS420YAICS1B

The Real-World Problem It Solves

Mixed low-level voltage and current signals in plant environments pick up heavy EMI, causing drifting process values and false control excursions. This isolated analog pack blocks ground loop noise and consolidates multiple analog point types onto one compact I/O card.

Where you’ll typically find it:

  • Steam and gas turbine vibration, temperature, and pressure monitoring racks
  • Refinery auxiliary process skids with mixed analog instrument ranges
  • Combined-cycle plant BOP systems requiring high-resolution analog feedback

Bottom line: It cuts down on separate signal conditioning cards and stabilizes weak field analog signals in electrically noisy cabinets.



Hardware Architecture & Under-the-Hood Logic

This I/O pack includes an onboard BPPC microprocessor to handle local signal processing, no reliance on rack-level controller resources. Every field circuit uses independent isolation barriers to stop transient voltage bleed-through.

  1. Field analog signals pass through surge suppression and isolated signal conditioning hardware.
  2. 16-bit ADC circuitry converts raw analog values to digital data frames.
  3. Onboard processor scales, filters, and time-stamps all input points locally.
  4. Processed data transmits across redundant IONet links to main system controllers.
  5. Received output commands convert to analog current/voltage via isolated DAC stages for field devices.



Field Service Pitfalls: What Rookies Get Wrong

Mixed Signal Wiring in Common TraysNew techs run mA, VDC, and discrete wiring in the same cable tray. Unshielded parallel routing induces interference that skews low-level mV sensor readings.

  • Field Rule: Separate analog signal cables from high-power wiring; use individually shielded twisted pair for all field runs.

Incorrect Ground Shield TerminationShield drains grounded at both ends create circulating ground currents across isolated I/O modules. This wears down isolation barriers over time and triggers sporadic I/O faults.

  • Quick Fix: Terminate cable shield only at the cabinet side; leave field instrument shield floating ungrounded.

Cross-Revision I/O Pack MixingPairing with older YAICS1A hardware in TMR racks causes register mapping errors and mismatched scaling tables.

  • Field Rule: Maintain identical revision I/O packs in all redundant or TMR voting racks; verify part number suffix before replacement.
GE IS420YAICS1B

GE IS420YAICS1B

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
