GE IS400JPDHG1ABB | Mark VIe 28VDC High-Density Power Distribution Board – Field Service Notes

  • Model: IS400JPDHG1ABB
  • Alt. P/N: IS410JPDHG1A (cross-reference variant)
  • Product Series: GE IS400 / Speedtronic Mark VIe
  • Hardware Type: High-density 28VDC power distribution board
  • Key Feature: Triple-redundant R/S/T 28VDC inputs; 24 fused I/O outputs
  • Primary Field Use: Powers Mark VIe turbine control I/O packs & Ethernet switches in power plants/offshore
Get a Quote
In Stock
Manufacturer:
Part number: IS400JPDHG1ABB
Our extensive catalogue, including : IS400JPDHG1ABB , is available now for dispatch to the worldwide. Brand:
The listed price is not final; the actual selling price is negotiable based on current market conditions.

Description

Component Snapshot At-a-Glance

  • Model: IS400JPDHG1ABB
  • Alt. P/N: IS410JPDHG1A (cross-reference variant)
  • Product Series: GE IS400 / Speedtronic Mark VIe
  • Hardware Type: High-density 28VDC power distribution board
  • Key Feature: Triple-redundant R/S/T 28VDC inputs; 24 fused I/O outputs
  • Primary Field Use: Powers Mark VIe turbine control I/O packs & Ethernet switches in power plants/offshore

Hard-Numbers: Technical Specifications

  • Input Voltage: Triple redundant 28 VDC (R, S, T sources)
  • Output Channels: 24× fused 28VDC (8/R, 8/S, 8/T); 3× unfused Ethernet switch outputs
  • Per-Channel Rating: 1A max per I/O output
  • Isolation Rating: 2500 VDC field-to-backplane
  • Operating Temperature: -30°C to +65°C
  • Power Draw: Passive, <3W total for fault logic
  • Connector: 6-pin J1 (R/S/T feeds + return)

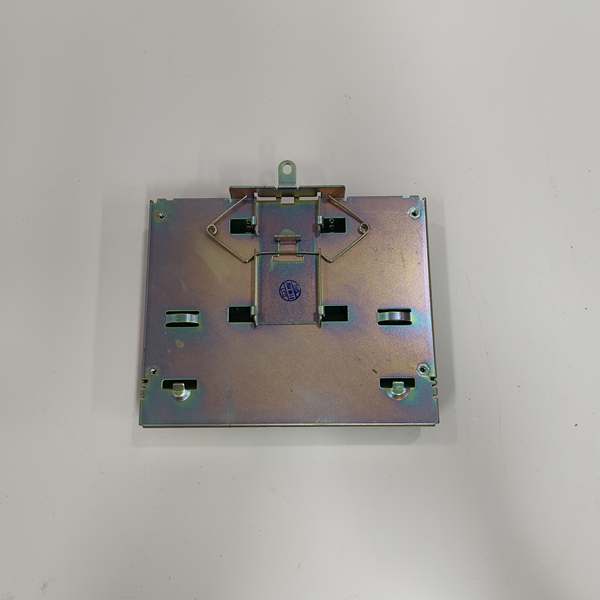

  • Mounting: DIN-rail / backplane
  • Dimensions: 178 × 144 × 44 mm
  • Weight: 0.5–1.0 kg
  • Certifications: UL, CE, Class I Div 2



The Real-World Problem It Solves

Dense I/O racks suffer unprotected 28V power runs. Single channel shorts take down entire I/O banks; redundant feeds are missing. centralizes distribution with R/S/T redundancy and per-channel PTC fusing, containing faults locally.

Where you’ll typically find it:

  • Mark VIe gas/steam turbine control I/O cabinets
  • Power plant DCS distributed I/O nodes
  • Offshore platform remote I/O panels

Bottom line: Eliminates cascading power faults and cleans up high-density I/O cabinet wiring.



Hardware Architecture & Under-the-Hood Logic

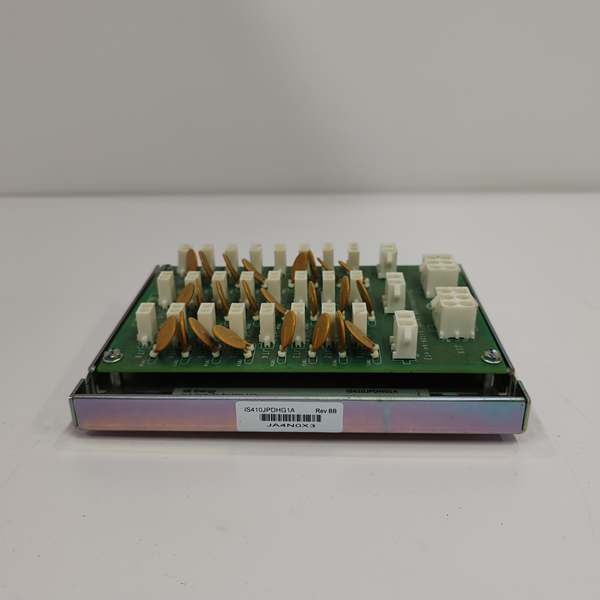

is a passive analog distribution board with no on-board microprocessor. It routes triple-redundant 28VDC inputs to segmented outputs via PTC fuses.

  1. R, S, T 28VDC inputs feed three isolated bus segments through 6-pin J1 connector.
  2. Each segment splits to 8 I/O channels with PTC fuse protection.
  3. Unfused 28VDC taps feed R/S/T Ethernet switches.
  4. Daisy-chain connectors allow stacking for expanded I/O counts.
  5. Front LEDs indicate power presence per segment.
  6. Faulted PTC channels auto-resolve after short removal.

Field Service Pitfalls: What Rookies Get Wrong

Mixing R/S/T Segments in WiringTechs cross-connect R-output to S-input devices. Causes ground loops and phantom faults.

  • Field Rule: Label all cables; strictly segregate R/S/T power paths.

Overloading Single SegmentsLoading 12+ I/O packs on one segment causes voltage drop and PTC nuisance trips.

  • Quick Fix: Balance loads evenly (≤8 per segment); avoid daisy-chaining overloaded boards.

Poor Ventilation & Dust BuildupDust insulates PTCs, causing thermal runaway and false overcurrent trips.

  • Field Rule: Mount vertically; maintain 2in clearance; quarterly air blowdown.

Skipping Input FusingOmitting main input fuses risks board trace burnout during feeder shorts.

  • Quick Fix: Install 10A fast-blow fuses on each R/S/T input feed.
