GE IS400AEBMH1AJD | Mark VIe Series Communication Interface Board – Field Service Notes

  • Model: IS400AEBMH1AJD
  • Series: GE IS400 / Mark VIe
  • Type: Communication Interface / Control Board
  • Status: Discontinued by Manufacturer (Obsolete)
  • Key Use: Turbine control system communication, data exchange, and interface management
  • Warranty: 12-month warranty (new/refurbished available)
Get a Quote
In Stock
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide. Brand:
The listed price is not final; the actual selling price is negotiable based on current market conditions.

Description

Hard-Numbers: Technical Specifications

  • Communication Protocols: Modbus RTU, RS-232/RS-485, Ethernet
  • Data Rate: 19.2 kbps – 115.2 kbps
  • Power Input: 24 VDC (18–32 VDC)
  • Operating Temp: -20°C to +60°C
  • Storage Temp: -20°C to +70°C
  • Dimensions: 173 × 112 × 13 mm (0.12 kg)
  • Certifications: CE, UL, CSA
  • HS Code: 8537101190

The Real-World Problem It Solves

In GE Mark VIe turbine control systems, reliable communication between controllers, I/O modules, and external systems is mission-critical. Legacy communication boards can fail or become incompatible with modern networks. provides robust, multi-protocol connectivity to ensure seamless data flow, maintain system integrity, and support safe turbine operation .

Typical Applications:

  • Gas/steam turbine control system communication
  • Data exchange between Mark VIe controllers and SCADA/EMS
  • Interface with third-party automation systems
  • Turbine safety system data monitoring



Hardware Architecture & Under-the-Hood Logic

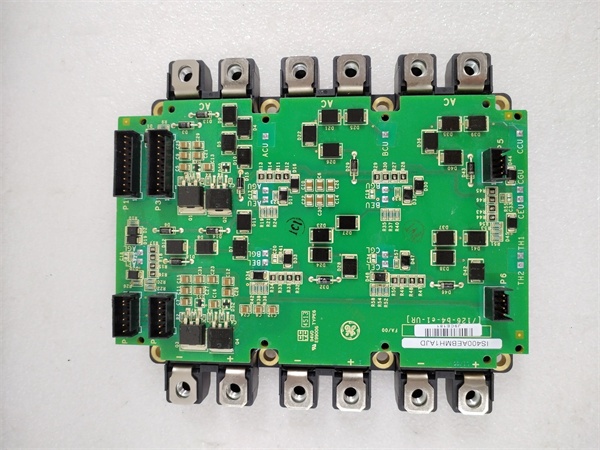

is a compact interface board:

  1. Integrates multiple communication ports for diverse protocol support .
  2. Provides electrical isolation and protection against noise/voltage spikes .
  3. Connects to the Mark VIe backplane for system communication .
  4. Features status LEDs for power, communication, and fault indication.
  5. Designed for harsh industrial environments with wide temperature tolerance .



Field Service Pitfalls: What Rookies Get Wrong

Obsolete Component ObsolescenceDiscontinued boards are hard to source; counterfeits or refurbished units may lack reliability.

  • Field Rule: Verify authenticity with serial number traceback; use authorized refurbishers.

Communication Protocol MismatchIncorrect protocol setup causes data loss or system crashes.

  • Field Rule: Confirm Modbus/RS-485 address mapping and baud rate matching with upstream controllers.

Poor Grounding & Noise ImmunityGround loops or EMI disrupt communication signals.

  • Field Rule: Use shielded cables; terminate shields only at the board; separate from high-power lines.

Overlooking Power Supply StabilityUnder-voltage or ripple corrupts communication.

  • Quick Fix: Install a 24 VDC filtered power supply; add a surge protector.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
