Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product model | **GE IS230SNCIH6A** |
| Manufacturer | General Electric (GE) |
| Product category | Isolated Digital Input DIN Rail Module |
| Series | Mark VIe |
| Number of digital inputs | 16 channels |
| Input signal type | Dry contact / 24V DC wet contact |
| Response time | ≤1ms (typical) |
| Input voltage range | 18V DC – 30V DC (wet contact) |
| Isolation rating | 2kVrms (channel-to-channel) |
| Operating temperature range | -40°C to +70°C |
| Installation method | DIN rail mounting (35mm standard) |
| Safety certification | UL 508, CE, IEC 61508 SIL 2 |
| Physical size | 17.8 cm (W) × 33.0 cm (H) × 12.7 cm (D) |

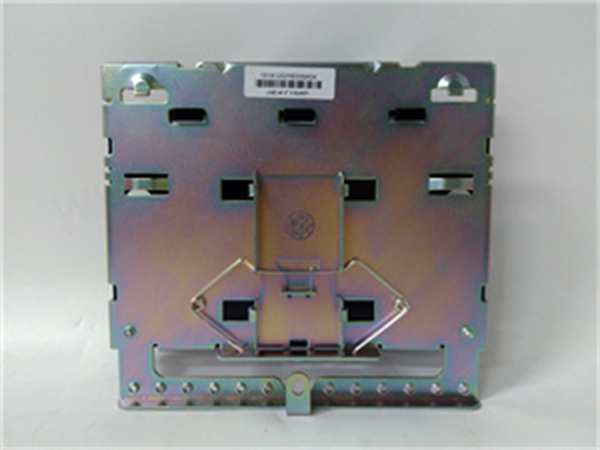

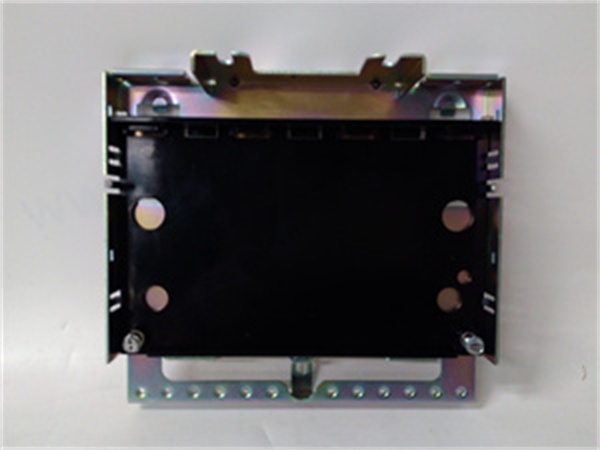

GE IS230SNCIH6A
Product Introduction
The GE IS230SNCIH6A is a high-performance isolated digital input DIN Rail Module under GE’s Mark VIe control system series, specifically engineered to accurately acquire and transmit digital status signals from field sensors to the Mark VIe controller. As a critical front-end data acquisition component, it serves as the vital link between field devices (such as limit switches, proximity sensors, and pushbuttons) and the digital control layer, ensuring reliable conversion of discrete on-site status into processable digital data.
In industrial control scenarios requiring real-time status monitoring, the GE IS230SNCIH6A excels in capturing fast-changing digital signals even amid harsh operational conditions. Its support for both dry and wet contact inputs ensures compatibility with diverse sensor types, while the high isolation rating and fast response time guarantee signal integrity and timely data transmission. By providing reliable digital input data, the GE IS230SNCIH6A lays a solid foundation for equipment status monitoring, interlock control, and safety protection across industries like manufacturing, power generation, and petrochemicals.
Core advantages and technical highlights
High-Density & Fast Response: The GE IS230SNCIH6A features 16 digital input channels in a compact DIN rail form factor, maximizing space utilization in control cabinets. With a typical response time of ≤1ms, it can quickly capture changes in field device status, such as the opening/closing of limit switches on a production line or the trip signal of a safety valve, ensuring the control system can respond promptly to dynamic process changes.
Flexible Input Compatibility: The GE IS230SNCIH6A supports both dry contact and 24V DC wet contact input signals, with an input voltage range of 18V DC – 30V DC for wet contacts. This flexibility allows direct connection to a wide range of field sensors without additional signal conversion devices, reducing system complexity and cost. It is particularly suitable for mixed-sensor environments where different types of discrete sensors are deployed.
Reliable Channel Isolation & Anti-Interference: With a 2kVrms channel-to-channel isolation rating, the GE IS230SNCIH6A effectively prevents signal crosstalk between channels and protects the module from damage caused by ground loops, voltage transients, and electrical noise. It complies with IEC 61000-4 EMC standards, ensuring stable operation in harsh industrial environments with strong electromagnetic interference from motors, inverters, and other high-power equipment.
Seamless Mark VIe Integration & Diagnostics: The GE IS230SNCIH6A integrates seamlessly with the Mark VIe control system via the backplane, supporting automatic module recognition and configuration. It features built-in self-diagnostic functions that monitor input signal integrity and detect open-circuit or short-circuit faults, providing real-time alerts to the controller. LED status indicators for each channel offer visual feedback on signal acquisition status, simplifying troubleshooting. Hot-swapping capability allows quick module replacement without system shutdown.
Typical application scenarios
In automotive manufacturing lines, the GE IS230SNCIH6A is deployed to monitor the status of robotic arms, conveyor belts, and part positioning sensors. It collects digital signals from proximity sensors that detect the presence of workpieces and limit switches that indicate the end positions of robotic movements. This data is transmitted to the Mark VIe controller, which coordinates the operation of different production line components to ensure synchronized and efficient assembly. The module’s fast response time ensures that any deviation in part position is detected immediately, reducing production errors.
In petrochemical refineries, the GE IS230SNCIH6A monitors the status of pipeline valves, pressure relief devices, and pump start/stop signals. It connects to limit switches on valve actuators to confirm valve opening/closing positions and to safety interlock sensors that detect abnormal pressure conditions. When an abnormal signal is received, the Mark VIe controller triggers emergency shutdown procedures to prevent accidents. The module’s high isolation rating protects against electrical noise from refinery equipment, ensuring reliable signal transmission in the hazardous environment.
Related model recommendations
GE IS230TRLYH1B: A Mark VIe digital relay output module that forms a complete control loop with the GE IS230SNCIH6A, executing control commands based on acquired input status data.
GE IS230TDBTH6A: A Mark VIe discrete I/O terminal board that provides wiring interfaces for sensors connected to the GE IS230SNCIH6A, simplifying field wiring and termination.
GE IS230SNCIH8A: An upgraded version of the GE IS230SNCIH6A with 32 digital input channels, designed for large-scale status monitoring systems.
GE IS230TCATH1A: A Mark VIe Ethernet/IP communication module that transmits input status data from the GE IS230SNCIH6A to upper-level SCADA or MES systems for remote monitoring.
GE IS230STTCH2AD: A Mark VIe mixed digital I/O module that complements the GE IS230SNCIH6A by providing both additional input channels and output control functions.
GE IS230TCISH6C: A Mark VIe multi-protocol communication module that allows the GE IS230SNCIH6A-based monitoring system to connect to Modbus TCP/PROFINET networks.
GE IS230TSPRH1CDIN: A Mark VIe signal processing module that conditions weak digital signals in high-noise environments before input to the GE IS230SNCIH6A.
GE IS230SNCIH6A
Installation, commissioning and maintenance instructions
Installation preparation: Before installing the GE IS230SNCIH6A, ensure the control cabinet is clean, dry, and free from corrosive gases. The ambient temperature should be within -40°C to +70°C. Required tools include a 35mm DIN rail cutter, Phillips screwdriver, wire stripper, and multimeter. Disconnect the system power supply before installation. Align the module with the DIN rail, push until it locks into place, and secure with side screws. Use shielded twisted-pair cables for sensor wiring, connecting the cable shield to the cabinet ground to minimize electromagnetic interference.
Maintenance suggestions: Conduct monthly visual inspections of the GE IS230SNCIH6A to check for loose wiring, damaged LED indicators, or abnormal heating. Clean the module surface and ventilation slots quarterly using compressed air (max pressure 0.5MPa). Test input channels annually using a signal generator to verify their responsiveness and accuracy; if a channel fails to respond or transmits incorrect signals, check the wiring and sensor, then use the module’s diagnostic functions to locate faults. Replace damaged modules with genuine GE spares to ensure compatibility and performance.
Service and guarantee commitment
The GE IS230SNCIH6A comes with a 12-month manufacturer’s warranty covering material and workmanship defects. GE’s global technical support team provides 24/7 assistance via email, online portals, and phone, offering wiring guides, troubleshooting solutions, and firmware updates. For on-site service needs, certified GE engineers can be dispatched to customer locations within 48 hours in major industrial regions. Extended warranty plans up to 3 years and customized preventive maintenance services are available to maximize the module’s operational lifespan. GE is committed to delivering high-reliability, flexible digital input modules to support customers’ industrial status monitoring and control needs.
