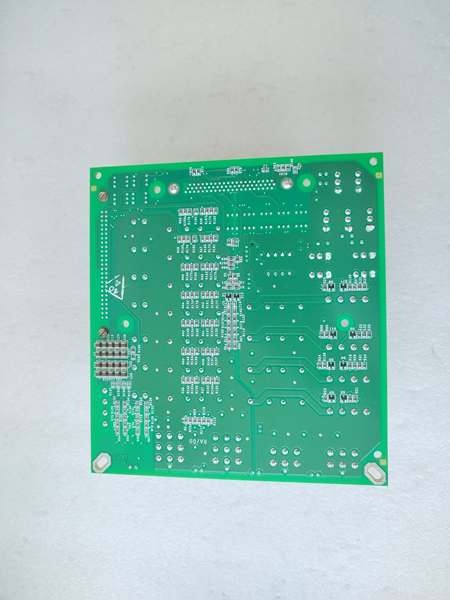

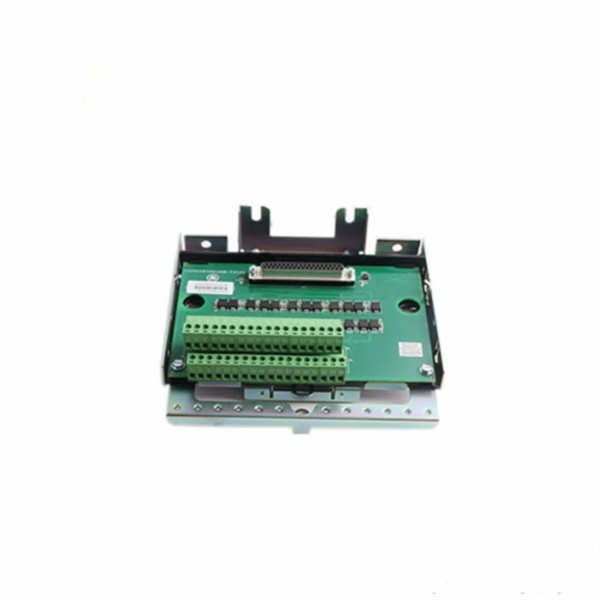

GE IS230JPDGH1B | Mark VIe 28V DC Power Distribution Board – Service Notes

  • Model: IS230JPDGH1B (JPDG Series)
  • Alternate P/N: IS230JPDGH1A, IS230JPDGH2A (variant)
  • Series: GE Speedtronic Mark VIe / Mark VIeS
  • Type: 28V DC Power Distribution Module (DIN Rail)
  • Key Feature: Multi-channel fused power distribution, dual-input redundancy
  • Primary Use: System power distribution for turbine control I/O, sensors, field devices
Get a Quote
In Stock
Manufacturer:
Part number: IS230JPDGH1B
Our extensive catalogue, including : IS230JPDGH1B , is available now for dispatch to the worldwide. Brand:
The listed price is not final; the actual selling price is negotiable based on current market conditions.

Description

Hard-Numbers: Technical Specifications

  • Input Voltage: Dual redundant 28 VDC (24–30 VDC operating range)
  • Output: 16× fused 28 VDC output channels
  • Fusing: On-board replaceable fuses (per channel)
  • Isolation: Field-to-backplane 2500 VAC RMS isolation
  • Mounting: DIN rail mount (standard 35mm)
  • Communication: IONet (for status monitoring; non-communicating for power)
  • Power Consumption: Passive (distribution only; ~5W for logic/LEDs)
  • Operating Temp: -40°C to +70°C (industrial)
  • Certifications: UL, CE, ATEX Zone 2, Class I Div 2
  • Compatible Terminals: PPDAH1B (terminal block)
  • Dimensions: 140 × 90 × 60 mm
  • Weight: ~0.8 kg
  • Firmware: None (pure hardware power board)
IS230JPDGH1B

IS230JPDGH1B

The Real-World Problem It Solves

Turbine control systems rely on clean, reliable 28V power for I/O modules, sensors, and transmitters. Unfused power runs risk short-circuit damage; non-redundant feeds cause total system failure on single supply loss. provides dual-redundant 28V inputs and 16 individually fused outputs, protecting downstream circuits and ensuring uninterrupted power if one supply fails.Typical Applications:

  • Powering Mark VIe I/O packs (YDOA, YPRO, YTUR, YVIB)
  • Field sensor power (MPU, vibration, flame detectors)
  • Safety relay & solenoid power
  • Control cabinet component power distribution



Hardware Architecture & Under-the-Hood Logic

is a passive power hub with active protection:

  1. Dual Inputs: Two 28VDC feeds auto-select; primary/backup redundancy.
  2. Distribution: Input power split to 16 isolated, fused output channels.
  3. Fusing: Each channel has fast-acting fuse to prevent fault propagation.
  4. Status: LED per channel (OK/Fault) + global PWR/FAULT indicators.
  5. Termination: Connects to PPDAH1B terminal block for field wiring.
  6. Protection: Over-voltage, reverse-polarity, and short-circuit protection.



Field Service Pitfalls: What Rookies Get Wrong

Mismatched Fuse Ratings

  • Mistake: Installing over-sized fuses. Destroys downstream I/O on short.
  • Field Rule: Use GE-specified 2A/5A fast-blow fuses only; match load current.

Dual Supply Cross-Wiring

  • Mistake: Connecting both 28V inputs to same source. Loses redundancy.
  • Quick Fix: Wire Input 1 to primary supply, Input 2 to separate backup supply.

Non-DIN Rail Mounting

  • Mistake: Bolting directly to panel (no DIN rail). Causes overheating; poor heat dissipation.
  • Field Rule: Mount only on 35mm DIN rail; ensure 50mm clearance top/bottom.

Ground Loop on Power Returns

  • Mistake: Sharing power returns with non-safety grounds. Induces noise; trips false faults.
  • Field Rule: Use dedicated safety ground bus; isolate JPDG returns from control system grounds.
