Description
硬性数据：技术规格
- 协议支持：IONet（10/100Mbps），UDH（10/100Mbps），冗余网络能力
- 端口数量：5个RJ45以太网（3个IONet，2个UDH），1个USB，1个RJ45控制台
- 处理器：Freescale PowerQUICC II Pro MPC8349，667 MHz
- 内存：256MB DDR SDRAM，板载CF存储
- 功率消耗：最大12W @ 24VDC；输入范围18–36VDC
- 工作温度：-30°C 到 +65°C
- 隔离等级：2500VAC RMS 线对背板
- 重量: 0.9 公斤 (2 磅)
- 尺寸: 165 × 96.5 × 56 毫米
- 冷却：自然对流（无风扇）
- 冗余：三模冗余（TMR）兼容
- 操作系统: QNX Neutrino 实时操作系统 6.5

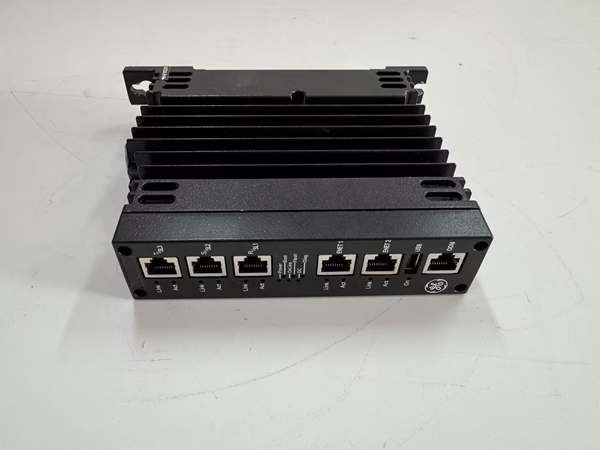

IS220UCSAH1AK
它解决的实际问题
传统的涡轮控制系统的循环执行速度慢，I/O通信不可靠。较旧的控制器无法跟上现代控制算法，导致意外停机。IS220UCSAH1A提供基于QNX的确定性控制，带有专用的IONet端口，消除延迟和通信故障。
你通常会在哪里找到它：
- 燃气和蒸汽涡轮机控制柜（Mark VIe系统）
- TMR发电安全控制系统
- Industrial plants with critical rotating machinery control
Bottom line: IS220UCSAH1A provides the reliable “brainpower” for stable turbine operation.
Hardware Architecture & Under-the-Hood Logic
IS220UCSAH1A is a self-contained embedded controller with dedicated processing and networking. It operates as the system master on the Mark VIe backplane.
- Powers up and boots QNX RTOS 6.5 from internal CompactFlash.
- Initializes 5 Ethernet ports: 3 for IONet (I/O communication), 2 for UDH (plant network).
- Executes control logic for speed, load, and temperature regulation.
- Synchronizes with redundant modules in TMR configurations for fault tolerance.
- Monitors internal health and reports status via front-panel LEDs.
- Passive heat sinks dissipate heat without moving parts for high MTBF.
IS220UCSAH1AK
Field Service Pitfalls: What Rookies Get Wrong
Cable Mislabeling (IONet vs. UDH)Technicians often cross-connect IONet and UDH cables. Breaks I/O communication and triggers “Network Fault” alarms.
- Field Rule: Mark all cables clearly. IONet connects to I/O modules; UDH connects to plant switches.

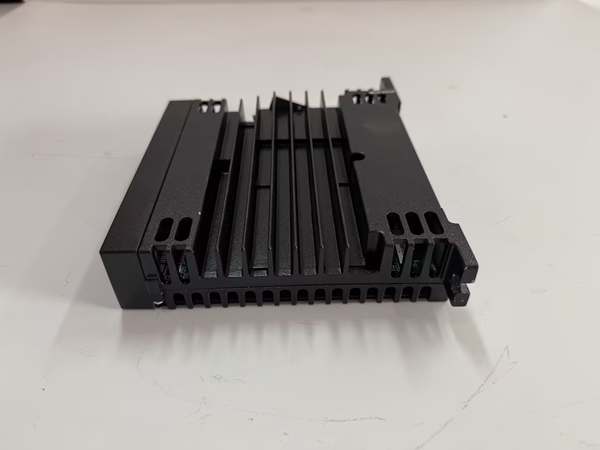

Insufficient Clearance Blocking VentilationSide vents require airflow. Blocking them causes thermal throttling and unexpected shutdowns, especially in crowded cabinets.
- Quick Fix: Maintain minimum 50mm clearance on all sides of IS220UCSAH1A. Check cabinet temps quarterly.
Mismatched Firmware in TMRMixing firmware revisions between redundant IS220UCSAH1A modules causes sync failures. Results in “Redundant Mismatch” alarms.
- 现场规则：在调试前，将所有三个控制器的ControlST/QNX版本升级到相同版本。
商业可用性和定价说明
请注意： 列出的价格仅供参考，不具有约束力。最终价格和条款将根据当前市场条件和供应情况协商确定。
