Description
Hard-Numbers: Technical Specifications
- Protocol Support: IONet (100Mbps), HART 5/6/7
- Port Count: 2× RJ45 Ethernet, 1× DC-37 field connector
- Analog Inputs: 16× 4–20mA, 16-bit, HART compliant
- Analog Outputs: 16× 4–20mA, 12-bit, HART compliant
- Isolation Rating: 2500 VAC RMS field-to-backplane
- Power Requirements: 24 VDC ±10%, 1.2A max
- Operating Temperature: -30°C to +65°C
- Input Accuracy: ±0.05% full scale
- Update Rate: 10ms per channel
- Hazardous Rating: Class I Div 2, Zone 2, ATEX/IECEx
- Dimensions: 158.75 × 107.95 × 30 mm
- Weight: 0.92 kg

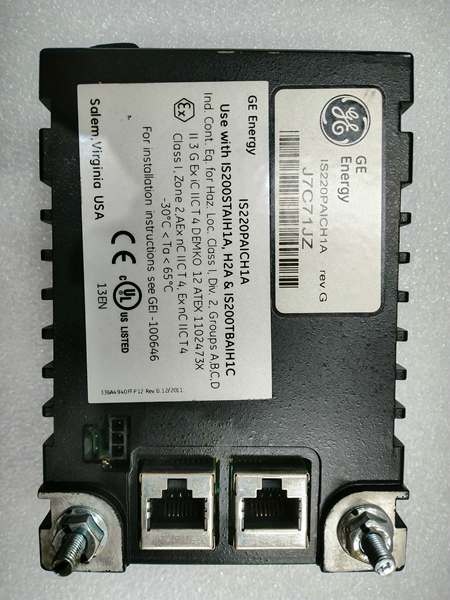

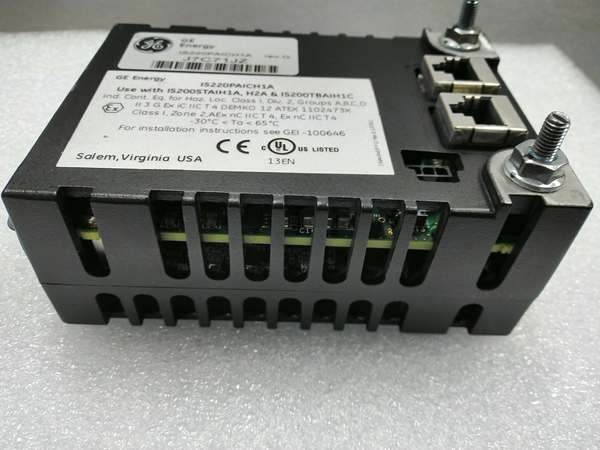

GE IS220PAICH1B
The Real-World Problem It Solves
Control cabinets bloat with separate AI, AO, and HART interface modules. Ground loops and EMI corrupt analog signals, causing unstable turbine control and bad transmitter data.
Where you’ll typically find it:
- Gas turbine fuel control valve positioning
- Steam turbine inlet pressure and temperature sensing
- Compressor anti-surge loop analog I/O
Bottom line: consolidates HART I/O, cuts cabinet density, and blocks electrical interference in precision analog turbine loops.
Hardware Architecture & Under-the-Hood Logic
uses a dedicated 32-bit processor for autonomous HART and analog processing. Full galvanic isolation separates field wiring from backplane and network electronics.
- Field analog signals terminate at the DC-37 connector.
- Signals cross 2500V optical isolation barriers.
- Inputs are filtered and digitized by 16-bit ADCs.
- On-board processor decodes HART commands and runs diagnostics.
- Data transmits over redundant IONet to the Mark VIe controller.
- Output commands drive 12-bit DACs with short-circuit protection.
- Front LEDs indicate power, fault, network, and HART activity.

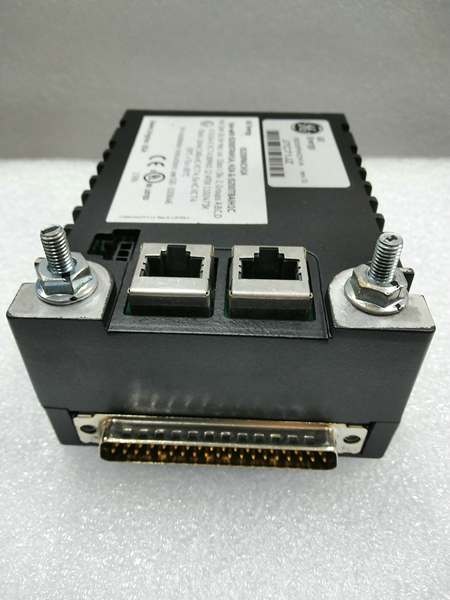

GE IS220PAICH1B
Field Service Pitfalls: What Rookies Get Wrong
Unshielded Analog WiringRookies run 4–20mA wires next to power cables. EMI induces noise that drifts readings beyond tolerance.
- Field Rule: Use twisted-pair, foil-shielded cable. Ground shield only at the cabinet end.
Under-Sized Power SupplyTechs use a 24V/0.5A supply. Voltage drop under full 16-channel load causes unstable outputs and HART dropouts.
- Quick Fix: Install 24V/2A supply. Verify 24.0 VDC minimum at module terminals under full load.
Incorrect HART TerminationRookies skip HART resistors or use wrong values. This breaks HART communication and locks transmitter access.
- Field Rule: Install 250Ω ±1% HART resistors on all analog input channels.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
