Description
Parameter table
| Parameter name | Parameter value |
| Product model | IS220PDOAH1A 336A4940CSP2 |
| Manufacturer | General Electric (GE) |
| Product category | Discrete Output Module |
| Dimensions (approx.) | Compact design for easy installation in control panels, specific dimensions in product manuals |
| Weight | Lightweight, facilitating handling during installation and maintenance |
| Number of channels | 16 discrete output channels, enabling control of multiple devices simultaneously |
| Output type | Relay outputs, suitable for switching various industrial loads |
| Maximum switching voltage | Compatible with standard industrial voltages, ensuring versatility in different applications |
| Maximum switching current | Adequate current rating to handle common industrial loads |
| Isolation | Channel-to-channel isolation to prevent interference between outputs |
| LED indicators | Front-panel LEDs for each channel, showing output status (on/off) for quick monitoring |
| Power supply | 24 V DC, compatible with standard industrial power systems |
| Connector type | Industry-standard connectors for secure and reliable connections |
| Compatibility | Works seamlessly with GE’s Mark VI control system and other compatible industrial control platforms |
| Operating temperature range | -20°C to +60°C, ensuring reliable operation in harsh industrial environments |

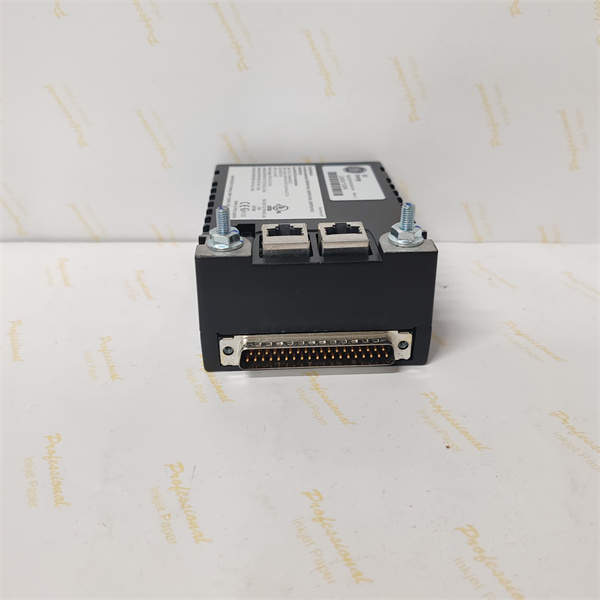

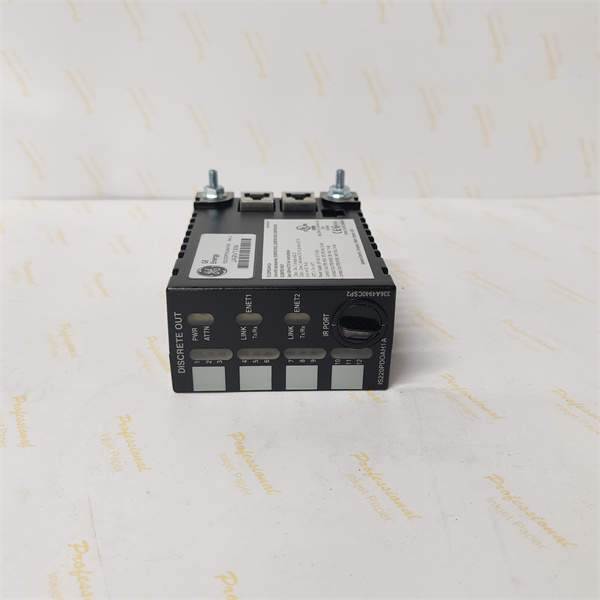

GE IS220PDOAH1A 336A4940CSP2
Product introduction
The GE IS220PDOAH1A 336A4940CSP2 is a high-performance discrete output module, a key component in industrial control systems. As part of GE’s industrial automation product lineup, it is designed to convert digital control signals from the control system into physical actions by activating various industrial devices.
This module receives digital commands from the control system (such as a PLC or DCS) and translates them into electrical signals that control external devices. The relay outputs allow it to switch on or off loads such as motors, valves, solenoids, and alarms. By doing so, it enables the control system to execute specific actions in the industrial process, such as starting a motor, opening a valve, or triggering an alarm.
With its reliable performance and robust design, the IS220PDOAH1A is widely used in industries such as manufacturing, power generation, and process control. It ensures that the control system’s commands are accurately and timely executed, contributing to the smooth and efficient operation of industrial processes.
Core advantages and technical highlights
Multiple output channels: Featuring 16 discrete output channels, the module can control up to 16 different devices at the same time. This high channel density reduces the need for multiple modules, simplifying the system architecture and saving space in the control panel. In a manufacturing production line, for example, it can control various components such as conveyor belt motors, grippers, and 指示灯 simultaneously, streamlining the control system design.
Reliable relay outputs: The use of relay outputs makes the module versatile and suitable for a wide range of industrial loads. Relays can switch both AC and DC loads, and their mechanical contacts provide a high level of isolation between the control circuit and the load. This makes the IS220PDOAH1A compatible with different types of devices, from small solenoids to larger motors, ensuring reliable switching in various industrial applications.
Effective isolation: Channel-to-channel isolation prevents electrical interference between different output channels. In industrial environments with high levels of electromagnetic noise, this isolation ensures that the operation of one channel does not affect others. For instance, when switching a high-power motor on one channel, it won’t cause interference with a sensitive alarm system connected to another channel, maintaining the integrity of the control system.
Clear status indication: The front-panel LEDs for each channel provide immediate visual feedback on the output status. Operators can quickly determine which devices are active by checking the LEDs, making troubleshooting and system monitoring more efficient. In case of a system issue, this feature helps identify whether the problem is in the module, the control signal, or the controlled device, reducing downtime.
Rugged design: Designed to operate in harsh industrial environments, the IS220PDOAH1A can withstand a wide temperature range (-20°C to +60°C). It is also resistant to vibration, shock, and electromagnetic interference, ensuring reliable performance in factories, power plants, and other challenging settings. This durability minimizes the need for frequent maintenance and replacement, reducing overall operational costs.
Typical application scenarios
Manufacturing automation: In manufacturing plants, the IS220PDOAH1A is used to control various production equipment. For example, in an assembly line, it can activate robotic arms to pick and place components, control the movement of conveyor belts, and operate clamping devices to hold workpieces in place. The module’s multiple channels allow for coordinated control of these devices, ensuring that the assembly process runs smoothly and efficiently.
Power generation facilities: In power plants, the module plays a role in controlling auxiliary equipment. It can switch on/off pumps for cooling systems, activate fans for ventilation, and control valves in fuel supply lines. For instance, when the temperature of a generator exceeds a set threshold, the control system sends a signal to the IS220PDOAH1A, which then activates a cooling pump to reduce the temperature, ensuring the safe operation of the generator.
Process control systems: In industries such as chemical processing and oil refining, the module is used to control valves, mixers, and other process equipment. It can open or close valves to regulate the flow of raw materials, start or stop mixers to ensure proper blending, and activate safety devices in case of abnormal process conditions. For example, in a chemical reactor, the module can control the valve that adds a catalyst, ensuring the correct amount is added at the right time to maintain the reaction conditions.
Building automation: In large commercial buildings and industrial facilities, the IS220PDOAH1A can be used in building automation systems to control lighting, HVAC equipment, and security devices. It can switch on/off lights in different areas based on occupancy, control the operation of air handlers and dampers in HVAC systems, and activate alarm systems in case of security breaches. This helps optimize energy consumption and enhance building safety and comfort.

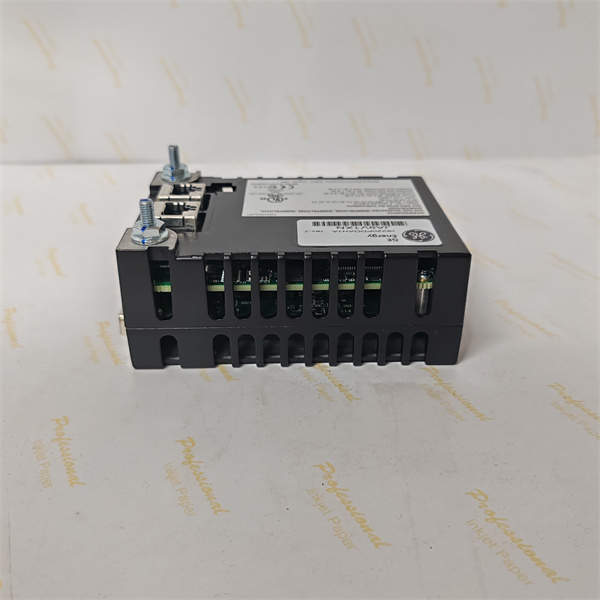

GE IS220PDOAH1A 336A4940CSP2
Comparison with related models in the series
Compared with other GE discrete output modules: Other modules in GE’s lineup may differ in the number of channels, output type, or current rating. For example, some modules may have 8 channels, which is suitable for smaller applications, while the 16-channel IS220PDOAH1A is better for larger systems requiring more outputs. Modules with solid-state outputs may offer faster switching times but are more sensitive to voltage spikes, whereas the relay outputs of the IS220PDOAH1A provide greater durability and compatibility with a wider range of loads. Higher-end models may offer features such as diagnostic capabilities for each channel, but the IS220PDOAH1A provides a cost-effective solution with reliable performance for standard applications.
Compared with similar products from other brands: GE’s IS220PDOAH1A stands out for its seamless integration with GE’s control systems, such as the Mark VI, ensuring compatibility and easy system integration. The module’s rugged design and wide operating temperature range make it suitable for harsh environments, giving it an advantage over some competing products with more limited environmental specifications. Additionally, GE’s global service and support network ensures that users can receive timely assistance, which is crucial for minimizing downtime in industrial operations. The clear LED status indicators and reliable relay outputs also make it a user-friendly and dependable choice compared to similar modules from other brands.
Installation, commissioning and maintenance instructions
Installation preparation: Select a clean, dry, and vibration-free location for installing the IS220PDOAH1A module. Ensure the mounting surface is sturdy and can support the module’s weight. Check the power supply to confirm it meets the 24 V DC requirement. Gather necessary tools such as screwdrivers, wire strippers, and crimping tools. Use appropriate cables with proper insulation and current-carrying capacity for connecting the module to the control system and the controlled devices. Review the wiring diagram to ensure correct connections, paying attention to the polarity and load ratings.
Commissioning process: Mount the module securely on the designated surface. Connect the power supply cables, ensuring correct polarity. Connect the control signals from the PLC or DCS to the module’s input terminals. Connect the controlled devices to the output terminals, making sure the connections are tight and secure. Power on the module and check the front-panel LEDs to ensure they light up correctly. Send test signals from the control system to each output channel and verify that the corresponding LED turns on and the controlled device operates as expected. Check for any signs of overheating or abnormal operation during testing. Calibrate (if necessary) and document the commissioning process for future reference.
Maintenance suggestions: Regularly inspect the module for physical damage, loose connections, or signs of overheating. Clean the module’s surface and connectors to prevent dust and debris accumulation, which can affect performance. Check the LED indicators periodically to ensure they accurately reflect the output status. Verify the operation of each output channel by sending test signals from the control system. If a channel fails to operate, check the connections, the controlled device, and the module itself. Replace any faulty relays or components with genuine GE spare parts. Update the module’s firmware (if applicable) to the latest version to benefit from performance improvements. In case of persistent issues, refer to the troubleshooting guide or contact GE’s technical support for assistance.
Service and guarantee commitment
GE provides a standard warranty period for the IS220PDOAH1A 336A4940CSP2, covering manufacturing defects. Their global technical support team is available to assist customers with installation, commissioning, and troubleshooting via phone, email, or online platforms. Customers can access technical documentation, wiring diagrams, and software updates (if applicable) through GE’s online resources. For complex issues, GE’s field service engineers can be dispatched to provide on-site support. GE also offers training programs to help customers understand the module’s operation and maintenance, ensuring optimal performance. Extended warranty options and preventive maintenance services are available to further enhance the module’s reliability and minimize downtime in industrial applications.
