Description
Hard-Numbers: Technical Specifications
- Processor: High-performance 32-bit Embedded Microcontroller (Advanced architecture for faster loop times and enhanced floating-point operations)
- Communication Protocol: Isolated CANbus (Controller Area Network) for robust, low-latency pitch drive networking
- Supply Voltage: 24 V DC Nominal (Wide operating range 18–36 V DC to handle severe nacelle/hub voltage transients)
- Power Consumption: ~25–60 W (Dependent on pitch motor load, actuator type, and processing overhead)
- Torque Rating: Calibrated for 30 Nm to 50 Nm pitch drive control (Supports both standard and high-torque variants)
- Signal Conditioning: Enhanced differential analog channels for precise position feedback, current sensing, and superior noise rejection in electrically noisy hub environments
- Operating Temperature: -40°C to +85°C (Extended industrial range engineered for extreme nacelle and hub environments)
- Humidity Tolerance: 5% to 95% non-condensing
- Vibration Resistance: Compliant with IEC 60068-2-6 and IEC 61373 standards for rotating hub and high-shock applications
- Protection: Enhanced urethane or silicone conformal coating for superior protection against humidity, salt mist, and continuous vibration
- Isolation: Reinforced galvanic isolation on CANbus, power inputs, and critical I/O paths to prevent ground loops and withstand surge events
- Dimensions (Approx.): 220 mm × 180 mm × 55 mm (Slightly larger footprint to accommodate enhanced processing and isolation components)
- Weight (Approx.): 1.0–1.5 kg

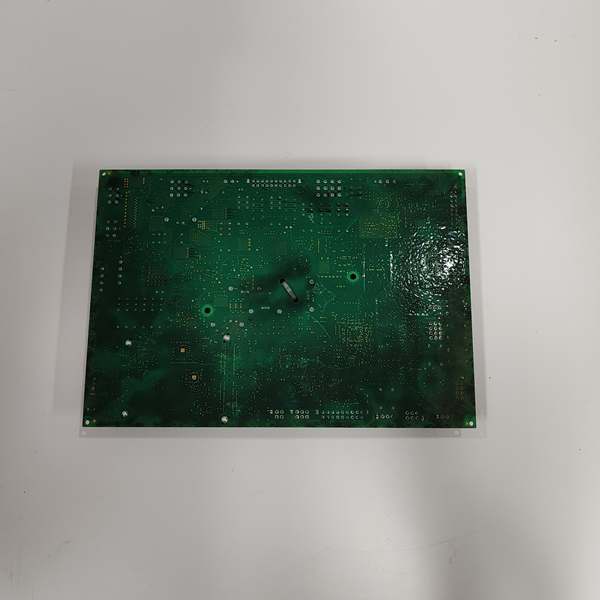

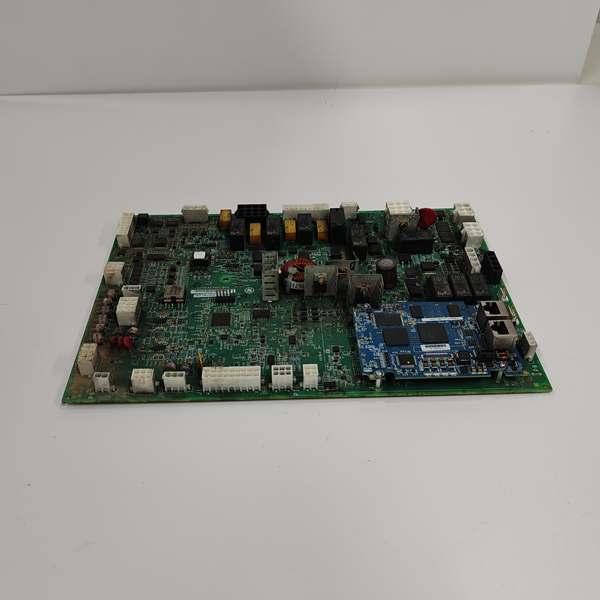

IS215WEPAH2B
The Real-World Problem It Solves
As wind turbine rotors grow larger and blade flexibility increases, the aerodynamic and gravitational loads on each blade become highly asymmetrical, especially during turbulent wind conditions or grid faults. The solves the problem of decentralized, ultra-high-speed blade pitch control with greater precision than its predecessors. By managing a single pitch axis locally—mounted directly in the rotating hub—it adjusts the individual blade angle in real-time to optimize energy capture, mitigate fatigue loads on the drivetrain and tower, and execute instantaneous emergency feathering if communication with the main controller is lost or an overspeed condition is detected.
Where you’ll typically find it:
- Mounted on the pitch drive assembly or inside the hub’s local control box of modern GE Mark VIe wind turbines (often found in 2.X MW to 3.X MW platforms).
- Connected directly to higher-power pitch motor drives and their corresponding absolute encoders or resolvers.
- Communicating with the main nacelle controller (like the WEMA) via a ruggedized, optically isolated CANbus network to receive high-level pitch commands and report back high-fidelity position feedback and drive diagnostics.
Bottom line: It acts as the intelligent, hardened “brain” at the blade root, bridging the gap between centralized turbine logic and the brutal, rotating mechanical reality of the hub, ensuring maximum energy extraction while fiercely protecting the physical asset.
Hardware Architecture & Under-the-Hood Logic
The WEPAH2B is a ruggedized, distributed control node built to survive the constant rotation, extreme centripetal forces, and severe electrical noise inside a wind turbine hub. Compared to earlier revisions, the H2B features improved processing speed and enhanced electrical isolation. It operates as an intelligent slave device, executing closed-loop control locally to minimize latency—a critical factor in preventing overspeed conditions.
- Command Reception: Listens to the central Mark VIe controller via the optically isolated CANbus, awaiting target blade angle setpoints and system status updates.
- Closed-Loop Positioning: Reads the raw data from the local absolute encoder or resolver to determine the blade’s current angle. It then executes advanced PID loop calculations to drive the pitch motor precisely to the target angle, compensating for gearbox backlash and temperature-induced changes in the drive system.
- Local Safety Supervision: Constantly monitors the pitch drive status, motor temperature, and communication heartbeat. If the CANbus goes silent, an over-torque condition is detected, or an external emergency stop signal is triggered, the onboard logic immediately forces the associated blade into the feathered (safe) position using hardwired fallback circuits, independent of the main controller.
- Status Reporting: Packages real-time telemetry (actual pitch angle, drive status, fault codes, and predictive maintenance data) and broadcasts it back to the main controller via CANbus.

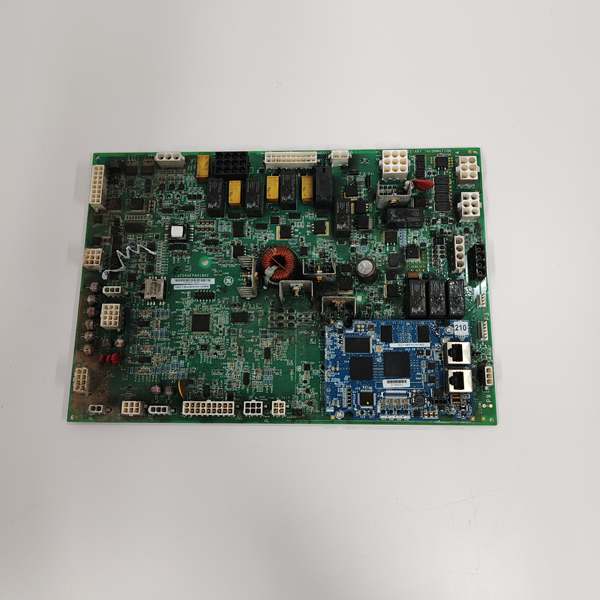

IS215WEPAH2B
Field Service Pitfalls: What Rookies Get Wrong
The “Terminator” Mix-up (Resistors, not Arnold)
Rookies often overlook the CANbus termination resistors when servicing the pitch system. If the WEPA module is replaced or the hub wiring is disturbed, failing to properly seat the 120-ohm termination resistors at the physical ends of the CAN chain causes signal reflection.
- The Symptom: Intermittent “Pitch Position Loss” or “CANbus Errors” that only appear when the turbine is vibrating heavily during high winds.
- Field Rule: Before closing the hub access panel, use a multimeter to check the total resistance across the CAN_H and CAN_L terminals at the farthest point from the controller. It must read exactly 60 ohms (two 120-ohm resistors in parallel). If not, hunt down the missing terminator.
Ignoring the Conformal Coating After Repairs
The inside of a turbine hub is a hostile environment filled with condensation, thermal cycling, and conductive carbon dust from the pitch motor brushes. Rookies might clean a board with standard electronics cleaner or skip re-coating after replacing a component.
- The Symptom: The “new” module fails within 3 to 6 months due to microscopic corrosion tracks forming under the chips.
- Field Rule: Treat the conformal coating like a life support system. If you touch the board, you must reapply a MIL-I-46058C compliant conformal coating to the affected areas. Pay special attention to the underside of the PCB where moisture settles.
Blade Unloading During Replacement
Rookies sometimes attempt to replace a faulty WEPA module or pitch drive while the turbine is in standby, assuming the mechanical brake will hold the blade still. However, wind gusts can cause the unpowered blade to flap or rotate unexpectedly.
- The Symptom: Severe injury, crushed hands, or stripped gears/sensors because the blade moved while the technician was working on the pitch assembly.
- Field Rule: Never service the pitch axis electronics without first ensuring the blade is mechanically locked (using the physical blade lock pins) and the hydraulic/pneumatic brakes are applied. Verify with the SCADA that the “Blade Lock” safety interlock is active before touching the WEPA module.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
