Description
Product Introduction

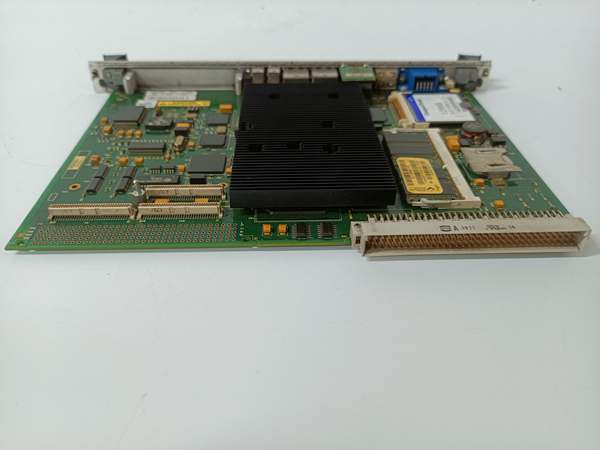

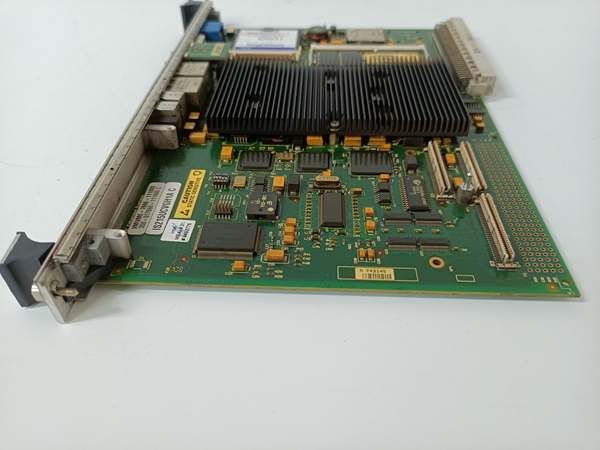

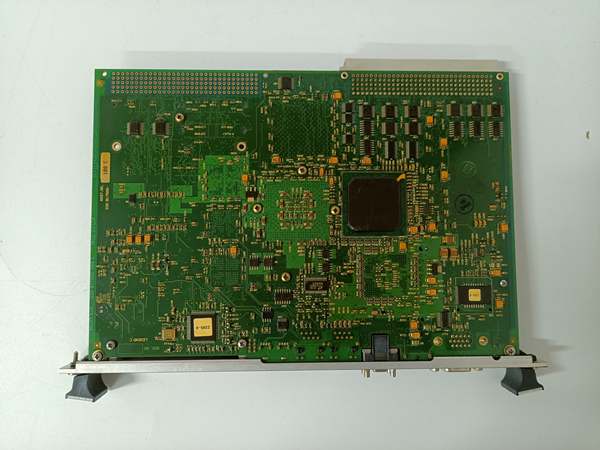

The GE IS215UCVGH1A is a high-performance, single-slot VME bus controller board engineered for GE’s Speedtronic Mark VI and Mark VIe turbine control systems. It acts as the central processing unit, executing complex control algorithms, sequence logic, and real-time data processing for gas, steam, and wind turbines.
Built around an Intel Ultra-Low Voltage Celeron 650 processor with 128 MB of SDRAM and 128 MB of flash memory, this module delivers reliable computational power tailored for demanding industrial automation tasks. Housed in a space-saving single-slot VME 6U form factor, it features a rich array of front-panel I/O, including dual Ethernet ports, serial ports, USB interfaces, and an SVGA monitor port for direct diagnostics and local engineering access. A quick tip from the bench:While highly reliable, always verify the DIP switch settings match your existing rack configuration before powering up to avoid network address conflicts. With proper care, these units reliably deliver 15+ years of service in harsh industrial environments, though the onboard lithium battery will require periodic replacement to maintain the real-time clock (RTC).
Key Technical Specifications
| Parameter | Value |
|---|---|
| Processor | 650 MHz Intel Ultra-Low Voltage Celeron |
| Memory (SDRAM / Flash) | 128 MB SDRAM / 128 MB Flash |
| Communication Interfaces | 2 x Ethernet (10/100BaseTX), 2 x Serial RS-232C, 2 x USB, 1 x SVGA, 1 x Keyboard/Mouse |
| Supported Protocols | TCP/IP, EGD, Modbus, SRTP |
| Operating System | QNX RTOS or VxWorks |
| Input Voltage | 24 V DC (Nominal, powered via VME backplane) |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% Non-condensing |
| Form Factor | VMEbus 6U (Single-Slot Width) |
| Mounting Style | VME Rack Mount |
| Dimensions (Approx.) | 280 mm × 86 mm × 20 mm |
| Weight (Approx.) | 0.45 kg |
| Power Consumption (Max) | 15 W |
IS215UCVGH1A
Quality Control Process
- Incoming Verification: Cross-reference serial numbers against GE manufacturing databases. Perform anti-counterfeit inspections on the Intel BGA processor and surrounding ICs. Visually inspect the VMEbus edge connector and front-panel ports for physical wear or bent pins under 10x magnification.
- Live Functional Test: Mount the board into a Mark VI/Mark VIe compatible VME test chassis. Run diagnostic software (e.g., ToolboxST) to verify CPU performance, memory integrity, and data packet transmission via both Ethernet and COM ports over a rigorous 24-hour stress test.
- Electrical Parameter Test: Monitor voltage rails under load conditions. Verify the 24V DC input stability. Test the onboard battery’s charging circuit and validate memory retention capabilities using specialized equipment.
- Firmware Verification: Read and document the current firmware/build version. Photograph all DIP switch and jumper configurations for the customer’s archival records.
- Final QC & Packaging: Clean the PCB and front panel with electronic-grade solvents. Wrap securely in anti-static foam with a desiccant pack to prevent moisture damage during transit. Affix a QC Passed sticker dated by the lead technician.
Replacement Pitfall Guide
❗ Non-Hot-Swappable: The is not hot-swappable. You must perform a controlled system shutdown and power down the VME rack before removing or inserting this module to prevent file system corruption or hardware damage.
❗ Single-Slot Clearance: This module occupies a single slot in the VME chassis. Ensure your rack has the physical space and that the backplane connector is clean and undamaged before installation.
❗ Battery Safety: The module contains a lithium battery to retain the RTC and NVRAM. Avoid short-circuiting the battery terminals during handling. Replace the battery immediately if a “Low Battery” fault is logged in the diagnostics.
❗ Jumper Configuration: Factory default jumper settings (e.g., VMEbus address, reset configurations) must align with your specific turbine control system architecture. Incorrect settings can lead to communication failures or processor faults.
❗ ESD Damage: The integrated circuits, especially the BGA processor, are highly sensitive to electrostatic discharge. Always use a grounded anti-static wrist strap and mat during installation.
Keep these in mind and you’ll cut 90% of rework time.
IS215UCVGH1A
Compatibility Matrix & Benchmarks
- IS215UCVEH2A → : Direct — Drop-in replacement with a smaller single-slot footprint and updated low-power processor.
- IS215UCVEM06A → : Direct / Downgrade — The ‘M06A’ is a dual-slot board with a potentially faster 850MHz processor; the ‘H1A’ serves as a direct functional replacement in scenarios where rack space is limited.
- → IS215UCVEM09B : Needs Adaptation — The ‘M09B’ features a multi-core processor and dual Gigabit Ethernet but requires a system firmware upgrade to recognize the updated hardware stepping.
- → IS215UCCAM03A : Incompatible — Different form factor (VME vs CPCI) and bus architecture.
- Processor Performance: 650 MIPS (Million Instructions Per Second)
- Data Throughput: 100 Mbps (Fast Ethernet communication, typical industrial load)
