Description
Product Introduction
The GE IS215UCVEM09B is a next-generation, high-performance VME bus controller board engineered for GE’s Speedtronic Mark VI and Mark VIe turbine control systems. Designed to handle the most demanding automation tasks, this module serves as the brain of the operation, executing complex control algorithms, sequence logic, and real-time data processing for gas and steam turbines.
As a modern evolution in the UCVE series, the “M09B” variant features a dual-slot 6U form factor and is equipped with a powerful processor (configurations include Intel Core i7-6820EQ or PowerPC 604e) paired with substantial memory capacity (up to 4GB DDR3L or 256MB SDRAM). It boasts an extensive I/O array on the front panel, including dual Gigabit Ethernet ports, multiple USB 3.0 ports, and legacy serial interfaces, ensuring seamless integration with both modern networks and existing plant infrastructure. A quick tip from the bench: While it supports advanced protocols like Modbus TCP and EGD natively, ensuring your VME backplane’s jumper settings match the system’s VMEbus address map is critical to avoid boot-up conflicts.With proper care, these units reliably deliver 15+ years of service in harsh industrial environments, though the onboard lithium battery will require periodic replacement to maintain the real-time clock (RTC).
Key Technical Specifications
| Parameter | Value |
|---|---|
| Processor | Intel® Core™ i7-6820EQ (up to 2.8GHz) or PowerPC 604e (400MHz – 1.2GHz) |
| Memory (RAM / Flash) | Up to 4 GB DDR3L / 64 GB eMMC or 128 MB – 512 MB SDRAM / Flash |
| Storage Options | M.2 SSD (up to 512 GB), 2.5″ SATA HDD/SSD support |
| Communication Interfaces | 2 x Gigabit Ethernet, 2 x RS-232/RS-485, 2 x USB 3.0, PCIe expansion |
| Supported Protocols | TCP/IP, EGD, Modbus, SRTP |
| Operating System | QNX RTOS, Windows 10 IoT Enterprise, Linux |
| Input Voltage | 24 V DC (Nominal, delivered via VME backplane) |
| Operating Temperature | -40°C to +85°C (Industrial grade) |
| Storage Temperature | -55°C to +90°C |
| Humidity Tolerance | 5% to 95% Non-condensing |
| Form Factor | VMEbus 6U (Dual-Slot Width) |
| Mounting Style | VME Rack Mount (Requires two consecutive slots) |
| Dimensions (Approx.) | 233 mm × 160 mm × 20 mm |
| Weight (Approx.) | 0.5 kg – 0.9 kg |
| Power Consumption (Max) | 20 W – 25 W |

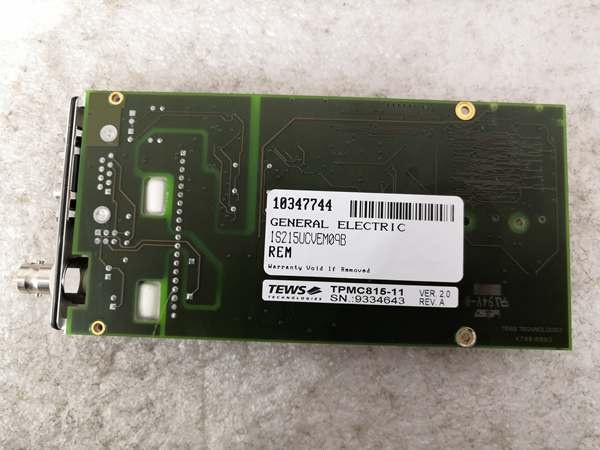

GE IS215UCVEM09B
Quality Control Process
- Incoming Verification: Cross-reference serial numbers against GE manufacturing databases. Perform anti-counterfeit inspections on BGA chips and surface mount components. Visually inspect the VMEbus edge connector and front panel ports (RJ-45, USB, Serial) for physical wear or bent pins under 10x magnification.
- Live Functional Test: Mount the board into a Mark VI/Mark VIe compatible VME test chassis. Run diagnostic software (e.g., ToolboxST) to verify CPU performance, memory integrity, and data packet transmission via Ethernet and COM ports over a rigorous 24-hour stress test.
- Electrical Parameter Test: Monitor voltage rails (+5V, +12V, -12V) under load conditions. Verify the 24V DC input stability. Test the onboard battery’s charging circuit and validate memory retention capabilities using specialized equipment.
- Firmware & OS Verification: Read and document the current firmware/build version and operating system configuration. Photograph all DIP switch and jumper configurations (e.g., bus addressing, boot sequence) for the customer’s archival records.
- Final QC & Packaging: Clean the PCB and front panel with electronic-grade solvents. Wrap securely in anti-static foam with a desiccant pack to prevent moisture damage during transit. Affix a QC Passed sticker dated by the lead technician.
Replacement Pitfall Guide
❗ Non-Hot-Swappable: The is not hot-swappable. You must perform a controlled system shutdown and power down the VME rack before removing or inserting this module to prevent file system corruption or hardware damage.
❗ Dual-Slot Clearance: This module occupies two consecutive slots in the VME chassis. Ensure your rack has the physical space and that the backplane connectors are clean and undamaged before installation.
❗ Battery Safety: The module contains a lithium battery to retain the RTC and NVRAM. Avoid short-circuiting the battery terminals during handling. Replace the battery immediately if a “Low Battery” fault is logged in the diagnostics.
❗ Jumper Configuration: Factory default jumper settings (e.g., VMEbus address, reset configurations) must align with your specific turbine control system architecture. Incorrect settings can lead to communication failures or processor faults.
❗ ESD Damage: The integrated circuits, especially the high-speed BGA processor, are highly sensitive to electrostatic discharge. Always use a grounded anti-static wrist strap and mat during installation.
Keep these in mind and you’ll cut 90% of rework time.
GE IS215UCVEM09B
Compatibility Matrix & Benchmarks
- IS215UCVEM06A → : Direct — Drop-in replacement with significantly higher processing power, expanded memory, and modern I/O (USB 3.0, Gigabit Ethernet).
- IS215UCVEH2A → : Needs Adaptation — Requires a system firmware upgrade and occupies double the slot width; offers a substantial performance leap.
- → IS215UCCAM03A : Incompatible — Different form factor (VME vs CPCI) and bus architecture.
- Processor Performance: Up to 2800 MIPS (Million Instructions Per Second, depending on specific CPU stepping)
- Data Throughput: 1000 Mbps / 1 Gbps (Gigabit Ethernet communication, typical industrial load)
