Description
Product Introduction
The GE IS215UCVEM06A is a high-performance VME bus controller board engineered for GE’s Speedtronic Mark VI and Mark VIe turbine control systems. It serves as the central processing unit, executing complex control algorithms, sequence logic, and managing system I/O communication to ensure the stable and safe operation of gas and steam turbines.
This “M06A” variant is a robust, feature-complete module often equipped with a 300 MHz Intel Celeron processor, 128 MB of Flash memory, and 1 GB of SDRAM. It runs on the QNX real-time operating system (RTOS) for deterministic control execution. The board is designed with a double-sided PCB layout and includes front-panel connectors for easy access to Ethernet, serial ports, and status LEDs. Well, technically it supports Modbus and EGD protocols seamlessly, but proper DIP switch configuration is crucial. We typically see a 15+ year service life in the field—though the onboard backup battery will eventually deplete and require replacement to maintain the real-time clock.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Processor | 300 MHz Intel Celeron |
| Memory (RAM / Flash) | 1 GB SDRAM / 128 MB Flash |
| Communication Interfaces | 2 x Ethernet (10BaseT/100BaseTX), 2 x Serial RS-232C |
| Supported Protocols | TCP/IP, EGD, Modbus |
| Operating System | QNX Real-Time Operating System (RTOS) |
| Input Voltage | 5 V DC (Powered via VME Backplane) |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% Non-condensing |
| Form Factor | VMEbus (6U Standard) |
| Mounting Style | VME Rack Mount |
| Dimensions (Approx.) | 160 mm × 86 mm (6.3″ × 3.4″) |
| Weight (Approx.) | 0.27 kg – 0.91 kg (0.6 – 2 lbs) |

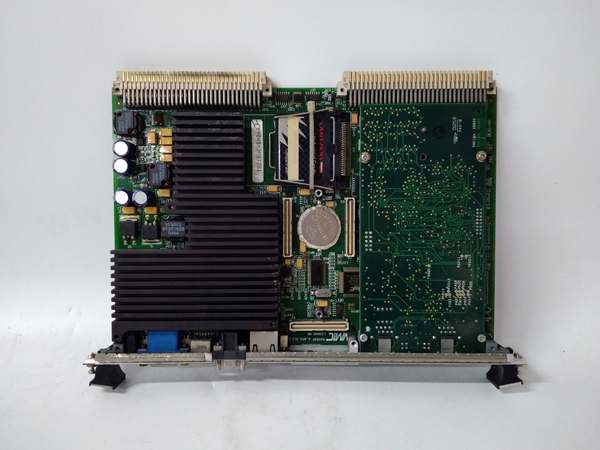

GE IS215UCVEM06A
Quality Control Process
- Incoming Verification: Cross-reference serial numbers against GE databases. Perform anti-counterfeit inspections on ICs and labels. Visually inspect the VME edge connector and front-panel ports for physical wear or bent pins under 10x magnification.
- Live Functional Test: Mount the board into a Mark VI/Mark VIe compatible VME test chassis. Run diagnostic software to verify CPU throttling, memory integrity, and data packet transmission via both Ethernet and COM ports over a 24-hour stress test.
- Electrical Parameter Test: Validate the 5V DC input stability and output voltage rails under load. Test the onboard battery’s charging circuit and verify memory retention capabilities using specialized equipment.
- Firmware Verification: Read and document the current firmware/build version. Photograph all DIP switch and jumper configurations (e.g., bus addressing) for the customer’s archival records.
- Final QC & Packaging: Clean the PCB and front panel with electronic-grade solvents. Wrap securely in anti-static foam with a desiccant pack. Affix a QC Passed sticker dated by the lead technician.
Replacement Pitfall Guide
❗ Battery Safety: The GE relies on an internal lithium battery to retain the real-time clock (RTC) and NVRAM. Avoid short-circuiting the battery terminals during handling, and always replace the battery if the “Low Battery” fault is triggered.
❗ NVRAM Corruption: Forcing the board into a live VME backplane without proper shutdown procedures can corrupt the 8K SRAM. Always follow GE’s hot-swap guidelines strictly.
❗ DIP Switch / Jumper Errors: The factory default jumper settings for the VME bus address often conflict with existing rack configurations. Verify the controller ID and communication jumpers beforeapplying power to avoid backplane contention.
❗ Firmware Incompatibility: Mixing older Mark VI firmware with newer Mark VIe architectures (or vice versa) will cause an immediate watchdog trip. Ensure the firmware build matches your specific turbine control system requirements.
❗ ESD Damage: The integrated circuits, especially the Intel Celeron processor, are highly sensitive to electrostatic discharge. Always use a grounded anti-static wrist strap and mat during installation.
Keep these in mind and you’ll cut 90% of rework time.
GE IS215UCVEM06A
Compatibility Matrix & Benchmarks
- IS215UCVEH2A → : Direct — Drop-in replacement; the ‘M06A’ revision typically includes enhanced memory capacity and improved component longevity.
- IS215UCVEM01A → : Direct — Equivalent performance replacement suitable for systems requiring standard VME control modules.
- → IS215UCVEM09B : Needs Adaptation — The ‘M09B’ features a multi-core processor and dual gigabit Ethernet but may require a system firmware upgrade to recognize the updated hardware stepping.
- → IS215UCCAM03A : Incompatible — The UCCAM series features a different form factor (CPCI) and bus architecture.
- Processor Performance: 300 MIPS (Million Instructions Per Second)
- Data Throughput: 100 Mbps (Ethernet communication, typical industrial load)
