Description
Product Introduction
The GE serves as a critical I/O expansion module within GE Mark VIe control architectures. It processes analog and digital field signals, providing isolated data to the main controller. This unit ensures reliable data acquisition in demanding industrial automation environments.
Unlike standard discrete input cards, this expansion board offers flexible channel configuration for varied sensor types. It supports both 4-20 mA current loops and ±10 VDC signals on a single platform. The onboard processing reduces main CPU scan times by offloading signal conditioning tasks.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 24 V DC (Nominal) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% Non-condensing |
| Supported Signals | 4–20 mA, ±10 VDC |
| Typical Expansion Capacity | 16 to 32 Channels |
| Communication Protocol | Ethernet, Serial |
| Mounting Style | DIN Rail |
| Protection Rating | IP20 |
| Dimensions (Approx.) | 178 mm × 51 mm × 305 mm |
| Weight (Approx.) | 0.52 kg |

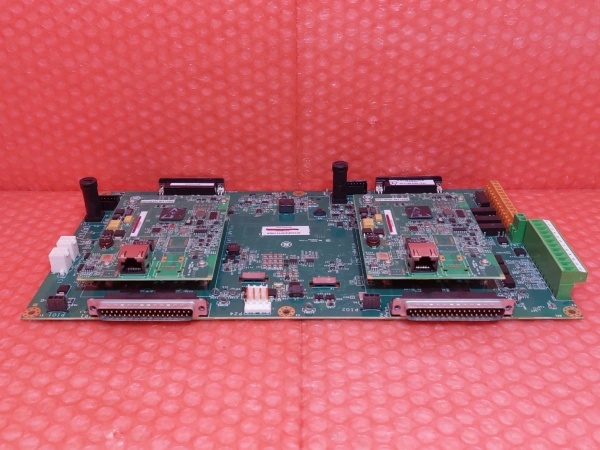

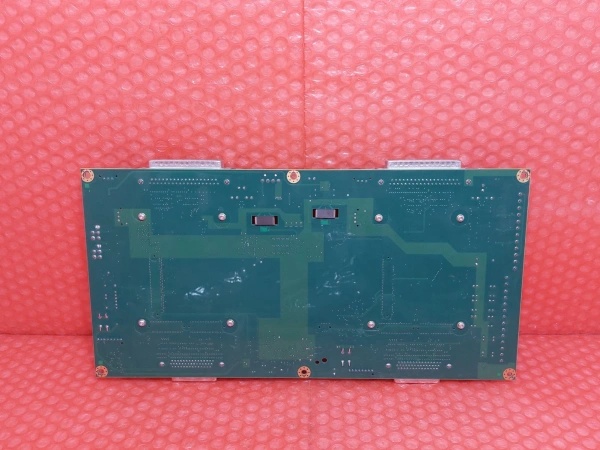

IS215REBFH1B
Quality Control Process
- Incoming Verification: Cross-reference serial numbers against GE manufacturing databases. Check for counterfeit labels and physical damage. Inspect for cracked solder joints under 10x magnification.
- Live Functional Test: Connect the module to a Mark VIe test rig. Simulate 4-20 mA and ±10 VDC signals across all 32 channels. Run continuous data acquisition for 24 hours.
- Electrical Parameter Test: Verify 24V DC power regulation under maximum channel load. Measure insulation resistance with a 500V Megger, ensuring values exceed 10 MΩ.
- Firmware Verification: Read and record the current firmware version. Photograph all DIP switch and jumper settings for archival purposes.
- Final QC & Packaging: Clean the unit with isopropyl alcohol. Seal in a moisture-barrier bag with desiccant. Apply QC Passed label with date and technician ID.
Replacement Pitfall Guide
❗ Firmware Mismatch: The GE requires specific firmware to sync with the main controller. Mismatched versions will cause I/O dropouts.
❗ DIP Switch / Jumper Misconfiguration: Factory default addresses often conflict with existing rack configurations. Verify the node ID jumpers before applying power.
❗ Terminal / Cable Incompatibility: Analog and digital signal pinouts differ significantly. Double-check the shield grounding on the primary terminal block to prevent ground loops.
❗ Power Supply Mismatch: Calculate the total current draw for all connected field devices. Undersized 24V DC supplies cause voltage sag and erratic sensor readings.
❗ ESD Damage: Always use an anti-static wrist strap when handling the circuit board. Dry control room air dramatically increases static discharge risks.
Keep these in mind and you’ll cut 90% of rework time.

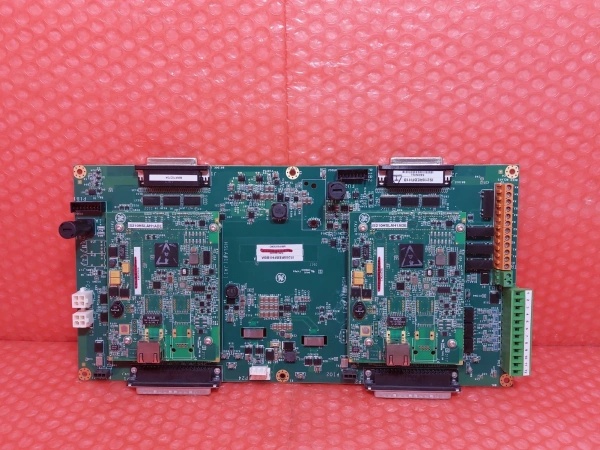

IS215REBFH1B
Compatibility Matrix & Benchmarks
- IS215REBFH1A → GE : Direct — Drop-in replacement with improved temperature tolerance.
- IS200EREAH2A → GE : Needs Adaptation — Requires DIN rail adapter and wiring harness extension.
- GE → IS215REBFH2A : Direct — Firmware update required for expanded channel count.
- Signal Latency: 2.5 ms (Scan time under 32 active I/O points)
- Data Throughput: 12 Mbps (Serial communication, 90% sustained load)
