Description
Hard-Numbers: Technical Specifications
- Output Channels: 12 Independently Fused Relay Outputs
- Fuse Rating: 3.15A Fast-Blow (Rated for 500VAC / 400VDC handling)
- Compatible Host Boards: TDBS, SRLY, and TDBT Terminal Boards
- Redundancy Support: Simplex, Dual-Redundant, or Triple Modular Redundant (TMR)
- Operating Voltage (Logic): 24VDC (Supplied from the host terminal board)
- Isolation Rating: 1500 VDC / 2.5kV AC (Field wiring to I/O pack backplane)
- Response Time: <25 ms typical (On/Off)
- Physical Dimensions: Approx. 10.16 cm W x 33.02 cm H (Standard Mark VIe daughterboard form factor)
- Operating Temperature: -30°C to +65°C (Suitable for extreme turbine environments)
- Protection: Conformal Coated PCB (Moisture, dust, and chemical resistance)
- Agency Approvals: UL Listed, CE, CSA

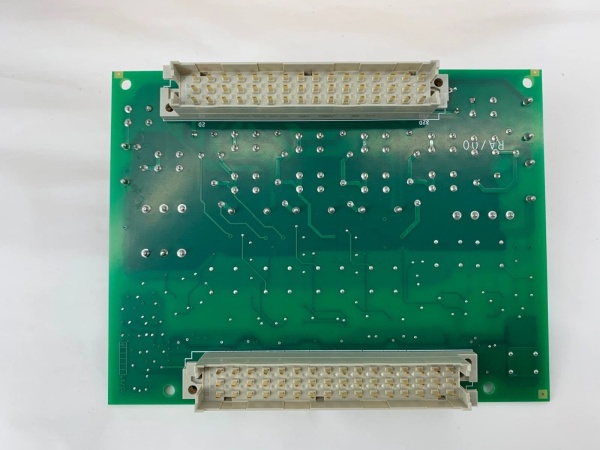

GE IS200WROBH1ABA
The Real-World Problem It Solves
You are managing the controls for a heavy-duty gas turbine or a high-pressure compressor station. The Mark VIe controller needs to drive a dozen high-inductance loads: fuel gas shut-off solenoids, lube oil pump contactors, and emergency trip valves. The challenge is that if one of these field devices shorts out or draws excessive inrush current, it could blow the main 24VDC power supply, causing a catastrophic “dark rack” scenario and an uncommanded turbine trip. You need granular, per-channel circuit protection that isolates faults without bringing down the entire control panel.
Where you’ll typically find it:
- Mated to TDBS or SRLY Terminal Boards: Mounted as a daughterboard inside Mark VIe I/O racks to provide heavy-duty, protected relay driving capabilities .
- TMR Turbine Protection Racks: Installed on TDBT terminal boards in Triple Modular Redundant systems to execute voting logic for fuel gas valves and emergency shutdown (ESD) devices .
- Balance of Plant (BOP) & Auxiliaries: Driving high-inertia contactors, solenoid banks, and alarm annunciators where individual branch circuit protection is mandatory .
It acts as the intelligent, hardened power distribution hub for your Mark VIe outputs, ensuring that a single stuck contactor coil doesn’t escalate into a costly, system-wide nuisance trip.
Hardware Architecture & Under-the-Hood Logic
The “H1ABA” suffix denotes a specific hardware revision of the WROB (Relay Output Board) optimized for enhanced diagnostics and EMI shielding . It is designed strictly as an option board—it cannot function as a standalone component. Instead, it plugs into the expansion header of a host terminal board (like the TDBS or TDBT) to offload, protect, and sense high-current discrete outputs .
- Fused Power Distribution & Real-Time Sensing: The board takes the 24VDC power supplied by the host terminal board and distributes it across twelve independent fused channels. Crucially, it doesn’t just blow a fuse and go dark; internal sensing circuitry continuously monitors the voltage drop across each 3.15A fast-blow fuse. If a fuse opens due to an overcurrent event, the board instantly detects the change and reports a “Fuse Blown” status to the Mark VIe controller via the backplane .
- Transient Voltage Spike Suppression: Each relay contact is equipped with integrated Metal Oxide Varistor (MOV) suppression. This safeguards the contacts from arcing and extends the lifespan of the relays when switching highly inductive loads like solenoid valves .
- TMR Voting & High Isolation: When deployed in a Triple Modular Redundant (TMR) configuration, three WROB boards work in parallel on a TDBT terminal board. The system employs “2-out-of-3” voting for the relay outputs, meaning the turbine will only trip if at least two of the three WROB modules agree that a shutdown condition has been met. Additionally, 2.5kV AC isolation between the power channels and the control logic prevents electrical noise from propagating back into the sensitive processor backplane .
GE IS200WROBH1ABA
Field Service Pitfalls: What Rookies Get Wrong
Swapping a 3.15A Fast-Blow Fuse with a Slow-Blow or Higher Amp Rating
A maintenance technician replaces a blown fuse on the WROB board. Not having a 3.15A fast-blow on hand, he grabs a 5A slow-blow fuse from his truck, thinking it will “hold up better” against the inductive kick of the solenoid valve. The next time the valve cycles, a minor internal short occurs. Because the 5A slow-blow didn’t trip as quickly as the designed 3.15A fast-blow, the excess current overheats the WROB board’s internal trace, destroying the board and taking down the auxiliary shut-down logic .
- Field Rule: Never up-fuse or change the time-delay characteristic of the WROB protection devices. The 3.15A fast-blow rating is precisely calculated to protect the board’s internal traces and the host terminal board’s power supply. Always carry spare 3.15A fast-blow fuses.
Ignoring the Conformal Coating During Visual Inspections
An operator is performing a quarterly visual inspection of the I/O rack. He notices a fine layer of conductive dust has settled on the WROB board but assumes the “protective coating” makes it immune to contamination. Six months later, a humid weather front moves in, causing a creepage current across the dust, shorting the 24VDC bus to ground. The resulting voltage sag causes multiple false trips across the compressor station.
- Quick Fix: Conformal coating (which gives the PCB a slightly sticky or glossy appearance) resists moisture and dust, but it is not invincible . During turnarounds, use dry compressed air to gently blow dust off the WROB board. If the board is exposed to oily or chemical-laden environments, schedule periodic cleaning with isopropyl alcohol and a soft brush.
Forcing the WROB into an Incompatible Terminal Board Revision
An engineer is upgrading an older Mark VIe system. He orders an IS200WROBH1ABA to pair with an existing TDBS terminal board he found in the warehouse. He forces the connection, but the system won’t power up the outputs. The HMI reports “PDIO Option Board Not Detected.”
- Quick Fix: Not all terminal board revisions support all option boards. The TDBS board has multiple hardware revisions (e.g., TDBSH1, TDBSH2). Before ordering or installing a WROB, check the silkscreen on the host terminal board to ensure it has the correct option board expansion header populated. If the header is missing or the board revision is too old, the WROB simply won’t communicate with the controller .
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
