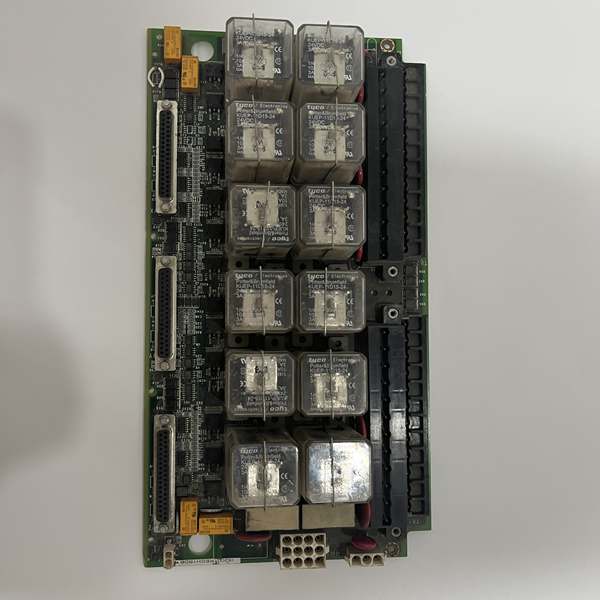

Description
Hard-Numbers: Technical Specificiations
- Supply Voltage: 125 VDC (sourced from station battery bus)
- Relay Output Channels: 2 Form-C Relays (ARC Detected, Brush Failure)
- Contact Rating: 5 Amps @ 250VAC / 30VDC
- Detection Sensitivity: Adjustable via onboard potentiometers (typical 1-10 Amp threshold)
- Arc Detection Time: < 10 ms (response to fault current)
- Operating Temperature: -20°C to +60°C
- Isolation Rating: 1500V AC (field wiring to backplane logic)
- Mounting Location: Exciter Power Backplane Rack (EPBP)
- Connectors: Barrier Terminal Strips (125VDC in, Relay out, Brush sense leads)

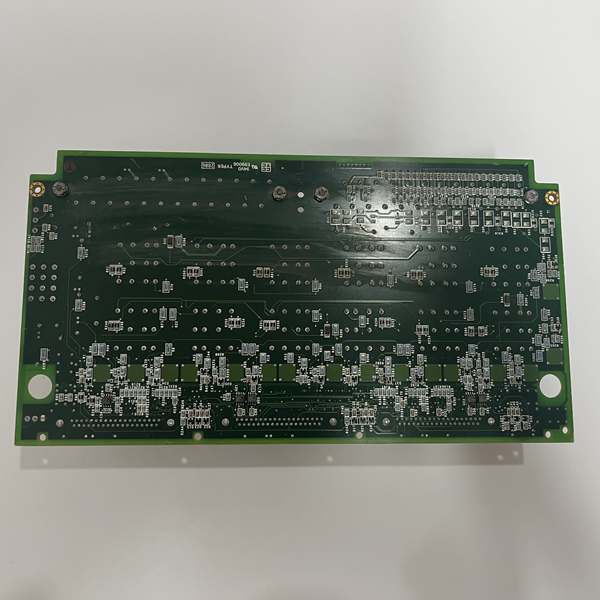

GE IS200TREGH1B
The Real-World Problem It Solves
You’re standing in a turbine hall diagnosing a tripped 9FA gas unit. The cause? A grounding brush arced violently, etching a deep groove into the $2 million generator shaft journal because nobody knew it had failed. You need a board that doesn’t just sit there; you need one that sniffs out dangerous shaft currents and shuts the machine down before the metal turns to liquid. This TREG board eliminates that nightmare. It acts as the ultimate watchdog for your shaft grounding system, catching arc events in milliseconds and driving hardwired trip relays to save your rotor.
Where you’ll typically find it:
- EX2100/EX2100e Exciter Cabinets: Mounted on the EPBP backplane, interfacing directly with the generator shaft grounding brush assembly.
- Large Steam & Gas Turbine Generators: Mitigating shaft voltages caused by magnetic asymmetries and static buildup.
- Retrofit Projects: Upgrading legacy passive brush monitoring systems to active, deterministic arc detection and protection.
It turns a silent, shaft-destroying electrical arc into an immediate, actionable trip signal to save your multi-million dollar asset.
Hardware Architecture & Under-the-Hood Logic
This isn’t a passive terminal block; it’s a high-speed current comparator and relay driver. It lives on the EPBP backplane, acting as the paranoid guardian of your generator shaft. The “H1B” suffix indicates optimized arc detection thresholds and enhanced component selection for harsh industrial environments.
- Shaft Current Acquisition: Tiny sense leads (often 18-20 AWG) land on the barrier terminals, connected directly across the generator shaft grounding brush. Any current flowing through the brush to ground passes through this sensing circuit first.
- Arc Signature Filtering & Comparison: The onboard circuitry filters out normal 60Hz ripple. If a sudden, high-amplitude transient spike (an arc) occurs, it hits a precision comparator. The onboard potentiometer sets the trip threshold (e.g., 5 Amps).
- Instantaneous Relay Actuation: Once the threshold is breached, the logic doesn’t wait for software polling. It instantly energizes the “ARC Detected” Form-C relay. This relay is hardwired to the turbine protection system, forcing an immediate unit trip.
- Brush Health Monitoring: If the sense leads break or the brush wears down to nothing (open circuit), the board detects the loss of current flow. It immediately energizes the “Brush Failure” relay, alerting operators to replace the consumable before a catastrophic arc occurs.

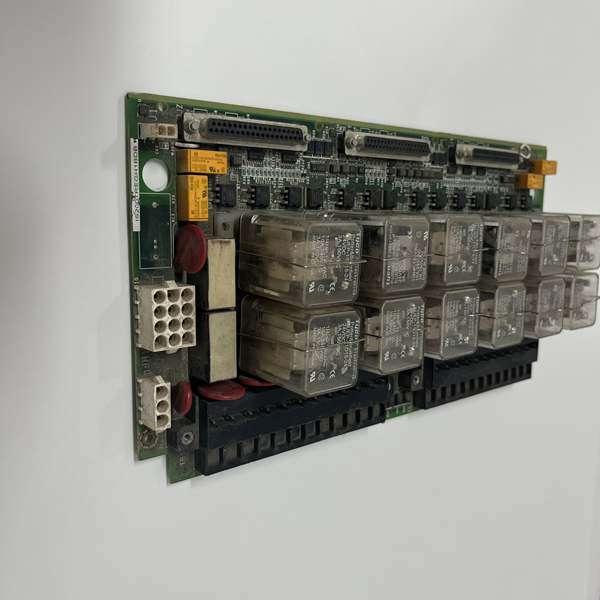

GE IS200TREGH1B
Field Service Pitfalls: What Rookies Get Wrong
Adjusting the Arc Detection Potentiometer Without a Load Bank
A rookie decides to “tighten up” the sensitivity on a TREG board during a planned outage. He spins the potentiometer all the way down to the minimum setting without simulating an arc or consulting the plant’s specific shaft study. The next time the generator synchronizes, normal capacitive coupling currents (3-4 Amps) cross his new, overly sensitive threshold. The TREG fires the trip relay, costing the plant $150,000 in lost generation during a peak demand day.
- Field Rule: Never adjust the arc detection threshold blindly. Use a calibrated current injection test set to simulate an arc. Set the potentiometer 10-15% above your generator’s known steady-state shaft current. If you don’t have a test set, leave the factory or previous setting alone.
Running Sense Leads Parallel to High-Voltage Bus Ducts
A junior engineer routes the small-gauge brush sense leads from the generator to the TREG. To save time, he zip-ties them directly to the 4160V generator bus duct for 50 feet. The sheer electromagnetic field radiating from the bus duct induces phantom currents into the sense leads. The TREG interprets this induced noise as a massive shaft arc and instantly trips the turbine.
- Quick Fix: Route the sense leads using twisted pair or individually shielded wire. Maintain a minimum separation of 12 inches from any high-voltage bus work. Ground the shield drain wire at the TREG terminal end only. A floating shield on a sensitive sensing circuit is a guaranteed ticket to a wild-goose chase.
Using Undersized Relay Output Wiring
A mechanic lands the 125VDC trip relay outputs from the TREG to the turbine protection rack. He reuses some leftover #18 AWG wire because “it’s just a signal.” During a massive shaft arc event, the TREG’s Form-C relay closes and tries to drive 5 amps through the coil of the trip solenoid. The #18 AWG wire acts like a fuse, heating up and vaporizing before the protection system even knows there was a fault.
- Field Rule: Always use minimum #14 AWG (2mm²) stranded copper wire for the Form-C relay outputs. These relays are designed to drive real loads (solenoids, annunciator panels). Crimp on heavy-duty compression lugs and torque them down to 15 lb-in. A blown sense wire during a real arc is a career-ender.
