Description
Product Introduction
The GE is a simplex terminal board serving as the field interface for Mark VIe turbine controls, bridging 24 dry-contact devices (like limit switches or E-Stop buttons) to the VDIM I/O processor. It organizes connections into three tiers of terminal blocks, keeping marshalling clean in crowded cabinets.
This “H6AED” revision features individual LEDs for all 24 channels, letting you see a closed contact without a laptop. It provides 24 Vdc wetting voltage internally (configurable) to ensure solid contact resistance readings. Response time from physical closure to backplane signal typically hits <10 ms .

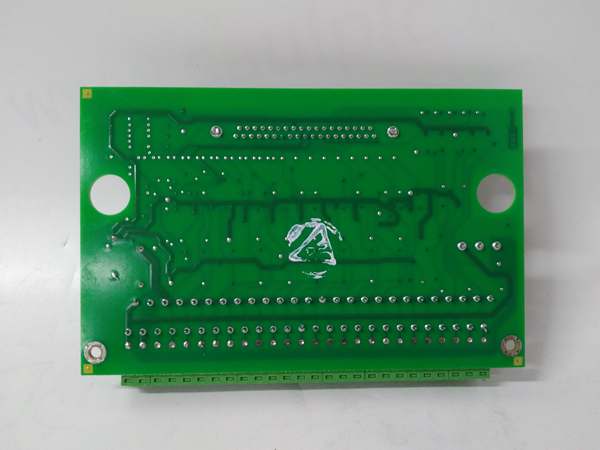

IS200STCIH6AED
Key Technical Specifications
- System Role: STCI Terminal (Simplex Contact Inputs)
- Input Channels: 24 Independent (Dry Contact / Wet)
- Wetting Voltage: 24 Vdc (Internally sourced or External, jumper select)
- Input Current: ~3–5 mA (When contact closed)
- Logic Levels: Open = 0, Closed = 1 (Configurable in ToolboxST)
- Indicators: 24 x Channel LEDs (On = Contact Closed)
- Isolation: Optical (Field-to-Backplane), 1500 Vrms (verify with OEM datasheet)
- Connectors: 3-Tier Removable Euro-Terminals (Field), 50-pin D-Sub (Proc)
- Temp Range: -30 °C to +65 °C (Operational)
- Mounting: Mark VIe Backplane Slot / Panel Mount
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Match the GE serial to the manifest. Inspect the 3-tier terminal blocks for cracked plastic levers—common after removal. Check the conformal coat near the header pins for carbon tracking.
- Live Functional Test: Rig with a VDIM simulator. Jumper all 24 channels to 24 Vdc one by one. We watch the LEDs; illumination must be instantaneous (<10 ms) with no flicker at 5 mA draw.
- Electrical Parameter Test: Back-probe the 24 Vdc wetting source with a Fluke 115. Megger the field terminals to chassis at 500 V; leakage must hold >10 MΩ to survive switchyard noise.
- Jumper Verification: Photograph the voltage source jumpers (Int vs Ext). Forgetting to set “External” when the site uses remote 24 Vdc leaves all inputs “Open”—well, technically software can invert it, but hardware setup is the first line of defense.
- Final QC & Packaging: Torque test a terminal screw (0.5 Nm). Bag in rigid ESD foam. Label “QC Passed – 24-Ch Loopback” with the date.
Replacement Pitfall Guide
❗ Wetting Source: The GE can source its own 24 Vdc or take it externally. If the old board used “External” power and you install a default “Internal” unit, all inputs read “0” (Open). Check the jumper block before racking.
❗ Simplex vs TMR: This is a Simplex board (single unit). Do not use it to replace one leg of a TMR (Triple) setup unless you are deliberately degrading the architecture—the system will flag “Vote Mismatch.”
❗ Terminal Tier Mapping: The 24 channels are split across 3 blocks (TB1, TB2, TB3). Wires are often labeled “STCI-1” etc. Mixing up TB1 and TB3 swaps your “Lube Oil Pump Run” signal with “Fire Suppression Discharge.”
❗ LED Interpretation: An LED ON means the physical contact is closed (0 V potential). In “Normal Open” logic, this usually means the alarm is active. Don’t assume LED On = Healthy; check the ToolboxST inversion logic.
❗ ESD to Header: The 50-pin D-Sub goes to VDIM. Discharge to the panel frame before unplugging—critical in dry turbine halls (common in northern China winters).
Keep these in mind and you’ll cut 90% of rework time.

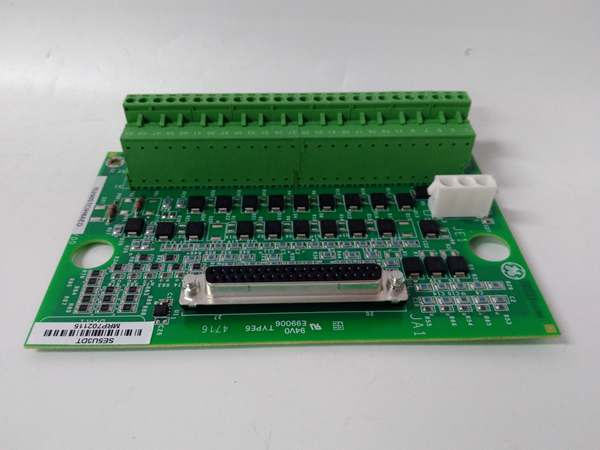

IS200STCIH6AED
Compatibility Matrix & Benchmarks
- GE → GE IS200STCIH1A : Needs Adaptation — H6 adds LEDs/Filtering; verify jumper map in ToolboxST.
- GE → GE IS200VDIM (Processor) : Direct — Physical mate for the Simplex DI Pack.
- GE → Standard Terminal Block : Incompatible — Handles specific wetting voltage and optical isolation.
- Response Time: < 10 ms (Contact Close to Logic High)
- Debounce Time: 5–20 ms (Configurable in VDIM)
- Isolation Test: 1500 Vrms (Field to Logic, verify with OEM datasheet)
