Description
Hard-Numbers: Technical Specificiations
- Input Voltage: 125 VDC (sourced from station battery bus)
- Output Voltage: 24 VDC (regulated, ±1%)
- Output Current: Up to 20 Amps (continuous)
- Redundancy Support: Dual-input auto-switching & active load sharing
- Operating Temperature: -20°C to +60°C
- Isolation Rating: 1500V input-to-output
- Mounting Location: Exciter Power Backplane Rack (EPBP)
- Onboard Protection: Input & Output Fuses/Circuit Breakers
- Diagnostic LEDs: Input Power, Output Power, Fault, Redundancy Active

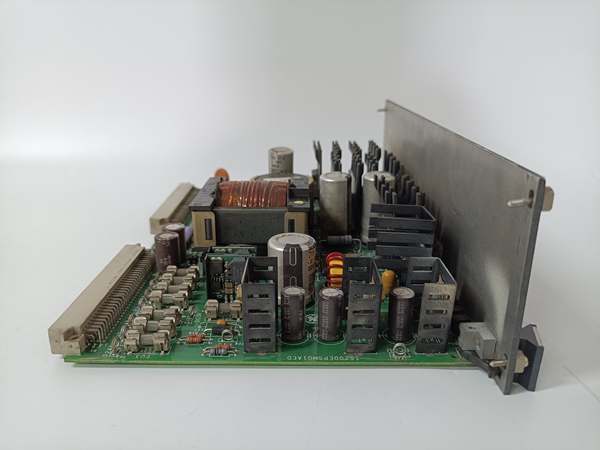

IS200EPSMG1A
The Real-World Problem It Solves
You’re troubleshooting a 9FA gas turbine that keeps tripping on “Controller Power Loss” during peak summer operation because the old power supply can’t handle the 55°C ambient heat. The 24VDC bus sags under load, causing the DSPX processor to brown out and resetting all your AVR tuning. You need a board that can swallow two separate 125VDC feeds and spit out rock-solid, redundant 24VDC without flinching. This EPSM board eliminates that headache. It acts as the intelligent power steward for the entire EX2100 rack, ensuring your control electronics stay online even when the grid goes haywire.
Where you’ll typically find it:
- EX2100/EX2100e Exciter Cabinets: Sitting in the EPBP rack, managing the power supply to DSPX, EDEX, EGDM, and all I/O terminal boards.
- Heavy-Duty Fossil & Nuclear Plants: Serving as the primary 24VDC backbone for multi-turbine excitation systems.
- Offshore Platform Turbine Skids: Providing isolated, redundant power to SIS-rated components in Class 1 Div 2 zones.
It turns a brittle, single-point-of-failure power distribution network into a resilient, load-balanced energy spine for your excitation control.
Hardware Architecture & Under-the-Hood Logic
This isn’t just a dumb voltage regulator; it’s an active power arbitrator with brains. It lives on the EPBP backplane, acting as the gatekeeper between the plant’s dirty 125VDC battery bus and your sensitive control electronics. The “G1A” suffix indicates specific firmware and trace routing for optimized thermal performance.
- Input Conditioning & Surge Suppression: The 125VDC input first hits an EMI filter and surge suppressor. This scrubs the electrical hash from the station battery bus before it can fry downstream processors.
- High-Efficiency DC/DC Conversion: An internal switch-mode power supply chops the 125VDC into a high-frequency AC waveform. A compact transformer steps this down, and it is rectified into a clean, regulated 24VDC rail.
- Active Load Sharing & Redundancy: If two EPSMs are installed, they talk over the backplane. They automatically balance the 24VDC load 50/50. If one fails, the other instantly picks up 100% of the load without a single hiccup in output voltage.
- Real-Time Health Telemetry: The onboard microcontroller watches input voltage, output current, and internal temperature. If the output sags or a short occurs, it trips the onboard protection and lights up the Fault LED.

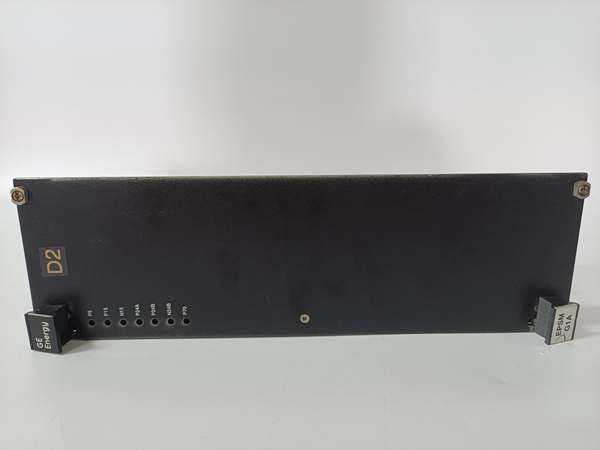

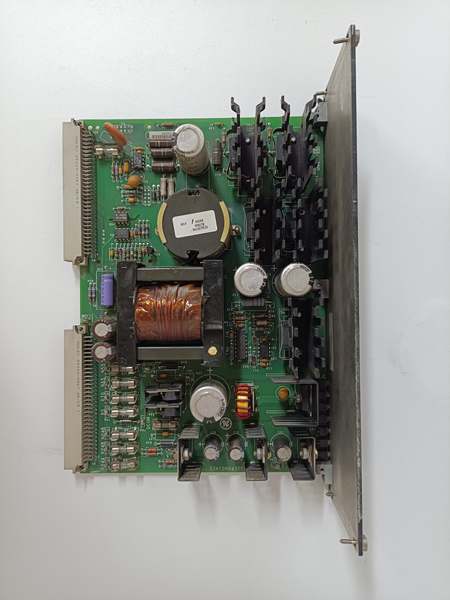

IS200EPSMG1A
Field Service Pitfalls: What Rookies Get Wrong
Reversing the 125VDC Input Polarity (The “Magic Smoke” Incident)
A rookie is landing the 125VDC input lugs and mixes up the positive and negative leads. He flips the breaker. The board emits a loud “POP” and a cloud of magic smoke. The input rectifier and primary switching transistor are toast, adding three days to a planned 24-hour outage.
- Field Rule: Always use a multimeter to verify polarity before applying power. Touch the probes to the input terminals. Positive must be positive. If you’re colorblind, label the wires with tape before disconnecting the old board. A five-second check saves a $10,000 board.
Mismatching Cable Gauges in Redundant EPSM Setups
A junior engineer installs two EPSMs for redundancy. He uses #12 AWG wire for the first unit’s 24VDC output but grabs some leftover #18 AWG for the second. The thinner wire has higher resistance, causing the load sharing algorithm to malfunction. The #18 AWG wire overheats and melts its insulation.
- Quick Fix: In a redundant configuration, use identical wire gauges (#12 AWG minimum) for both units’ 24VDC outputs. Ensure the cable lengths are roughly the same. Symmetry is mandatory for proper current sharing.
Ignoring the Calibrated Torque on Input Lugs
A mechanic replaces a failed EPSM. He uses a standard crescent wrench to tighten the 125VDC input lugs, cranking them down as hard as he can. He over-torques the copper lugs, causing the soft metal to cold-flow and crack. During a peak load event, the lug shears off, creating an arc flash that destroys the entire backplane.
- Field Rule: Use a calibrated torque wrench (not a screwdriver) for all 125VDC bus bar terminations. Refer to the GE manual for the exact inch-pound specification (typically 25-35 lb-in). Use a thin layer of anti-oxidizing paste on the copper-to-copper joints to prevent future corrosion.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
