Description
Hard-Numbers: Technical Specifications
- Power Supply: 5 VDC (drawn from backplane)
- Form Factor: Double-height, single-slot VME-style card
- Board Dimensions: 8.26 cm (H) x 4.19 cm (W) x 12.1 cm (D)
- Weight: ~0.26 kg (0.57 lbs)
- Input Terminals (External): 6 total (via P2 backplane)
- Output Terminals (External): 4 total (via P2 backplane)
- Backplane Connectors: P1 (Inter-board comms), P2 (I/O signal interface)
- Operating Temperature: 0°C to +65°C
- Front Panel Indicators: 2 LEDs (Power & FPGA IMOK Status)
- Onboard Components: No jumpers, fuses, or external cable headers

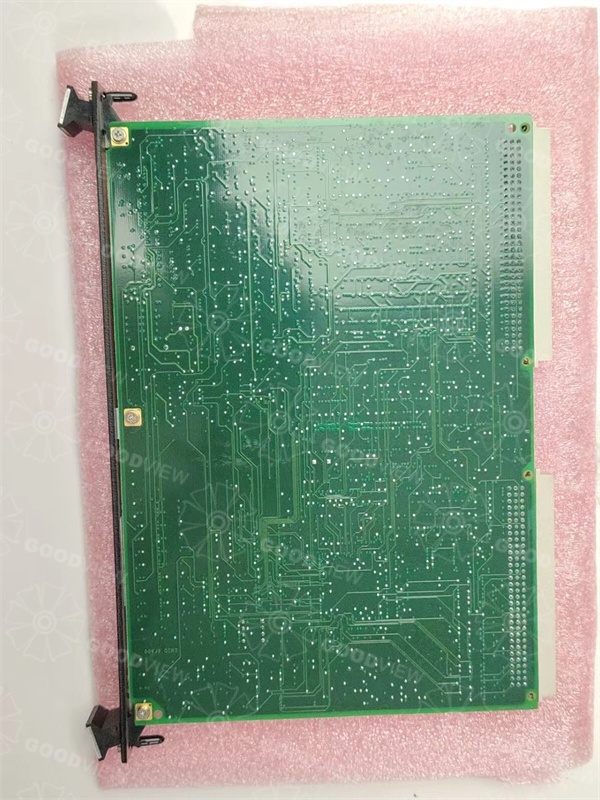

GE IS200EMIOH1ACA
The Real-World Problem It Solves
You’re troubleshooting a 9FA gas turbine where the excitation system keeps throwing “De-excitation Sequence Failed” or “Gate Pulse Loss” alarms. The old distributed wiring from the PT/CT sensors, contact inputs, and relay drivers is a tangled mess, creating noise crosstalk and intermittent drops. You need a single board that can consolidate every critical signal, execute the FPGA logic, and route gate pulses to the ESEL board without breaking a sweat. This EMIO board eliminates that headache. It acts as the central nervous system of the EX2100 control rack, processing EPCT, ECTB, EXTBA, and EACF data to provide deterministic control.
Where you’ll typically find it:
- EX2100 Exciter Control Racks: Seated in the VME slots, serving as the master I/O aggregation hub.
- Large Synchronous Generators: Managing PT/CT scaling, contact monitoring, and pilot trip relay actuation.
- Retrofit Projects: Consolidating scattered discrete I/O modules into a single, streamlined VME slot for cleaner cabinet layouts.
It turns a chaotic, noise-prone signal distribution network into a streamlined, FPGA-managed control backbone.
Hardware Architecture & Under-the-Hood Logic
This board isn’t a passive terminal block; it’s an FPGA-driven signal aggregator and logic processor. It lives on the Mark VI/EX2100 control rack, acting as the master dispatcher between four terminal boards and the downstream ESEL processor. The “ACA” suffix indicates specific manufacturing revisions and factory traceability.
- Terminal Board Signal Aggregation: The EMIO receives signals through connector P2, which interfaces with the EBKP backplane. It pulls in PT/CT measurements from EPCT, breaker status from EXTBA, contact inputs from ECTB, and excitation feedback from EACF—all in one consolidated stream.
- FPGA-Based Signal Processing: An onboard FPGA (Field Programmable Gate Array) processes the aggregated data in real-time. It validates contact states, scales analog signals, and drives the output relay coils with deterministic timing.
- Gate Pulse Forwarding to ESEL: When the DSPX processor issues a firing command, the EMIO forwards the logic-level gate pulse signals through the backplane to the ESEL (Exciter Selector) board. From there, they cascade to the EGPA/EHPA boards in the power cabinet.
- De-excitation & Status Feedback: The EMIO directly controls the EDEX board to initiate de-excitation sequences. It also processes feedback from the crowbar/shorting devices, ensuring the rotor field is safely discharged after a trip.
GE IS200EMIOH1ACA
Field Service Pitfalls: What Rookies Get Wrong
Pulling the Board Without Photographing the Panel Screws
A rookie rushes to replace a failed EMIO during an outage. He yanks the board out without noting the captive screw positions. When he installs the replacement, he over-tightens one corner screw, warping the faceplate and creating a poor backplane connection. The turbine powers up but throws continuous “Backplane Communication Loss” alarms.
- Field Rule: Always photograph the captive screw positions before removal. Tighten faceplate screws evenly—hand-tight plus a quarter-turn max. Uneven torque will warp the VME card frame and kill the P1/P2 backplane connections.
Ignoring the FPGA IMOK Status LED Behavior
A tech sees the green Power LED lit but the Status LED is off. He assumes the board is fine and moves on. Three hours into commissioning, the de-excitation sequence fails because the FPGA never initialized properly. The rotor field stays energized after a trip, cooking the windings.
- Quick Fix: Both LEDs must be lit for a healthy board. If the Power LED is on but Status (IMOK) is off, the FPGA failed to boot. Pull the board, reseat it firmly in the slot, and verify the EBKP backplane power is stable at 5VDC before declaring victory.
Attempting to Bench-Test the EMIO Without the Full Rack
A junior engineer tries to bench-test a spare EMIO board on a workbench, connecting 5VDC to the power pins and probing the P2 connector. Nothing happens. He declares the board dead and scraps it. The reality? The EMIO requires the EBKP backplane and surrounding modules for initialization and signal routing. It cannot operate as a standalone device.
- Field Rule: Never attempt to functionally test an EMIO outside of a live EBKP backplane environment. For bench verification, you need a full EX2100 control rack with EBKP, DSPX, and power supply. If you must verify a spare, check the Power and Status LEDs after installation in the actual control rack.
