Description
Hard-Numbers: Technical Specifications
- Input Voltage: 125 VDC (sourced from EPDM power module)
- Gate Output Voltage: Up to ±20V (configurable via jumpers)
- Gate Output Current: Peak > 3.0 Amps
- Thermal Switch Thresholds: 170°F (76°C) Alarm / 190°F (87°C) Trip
- Operating Temperature: -20°C to +60°C
- Isolation Rating: Optically isolated gate drive outputs
- Configurable Jumpers: 5 onboard (J1-J5)
- Diagnostic LEDs: Gate Power, Fan Status, Bridge Temp, Output Fire, Line Filter, Fault

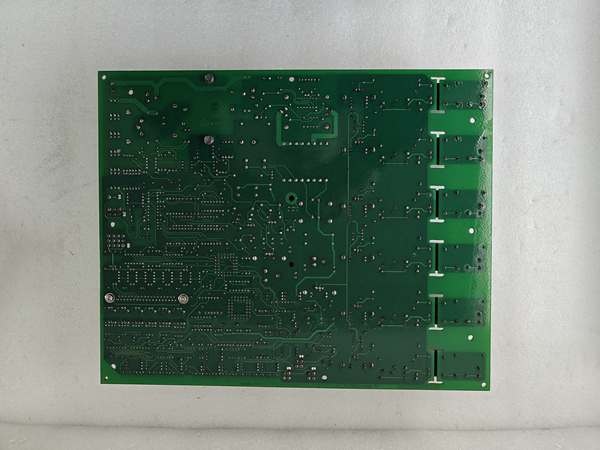

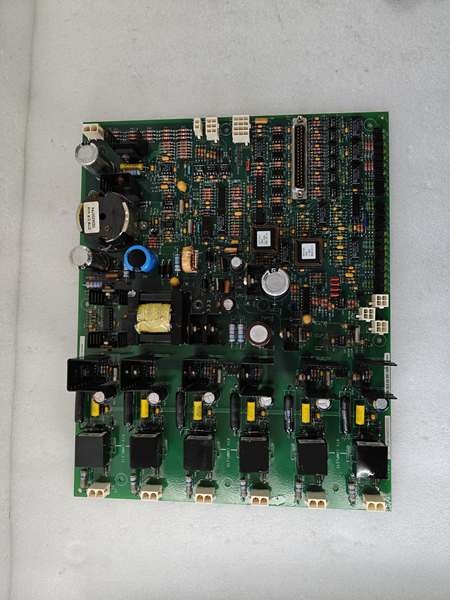

GE IS200EGPAG1BEC
The Real-World Problem It Solves
You’re standing in a legacy 9FA gas turbine exciter cabinet, and the turbine just tripped on “Generator Field Undervoltage.” The standard off-the-shelf EGPA boards are firing the thyristors (SCRs) with pulses that are too narrow for the vintage, high-capacitance SCRs in this specific bridge. You need a board that pushes out a customized, high-energy gate pulse to guarantee a crisp turn-on. This EGPA “EC” board eliminates that headache. It’s tuned specifically for this unit’s aging thyristors, boosting the pulse width and amplitude to prevent partial conduction and subsequent rotor overheating.
Where you’ll typically find it:
- Refinery & Petrochemical Cogen Units: Customized gate drive solutions in Class 1 Div 1/2 hazardous areas where environmental factors degrade standard components.
- Legacy Power Plants with Retrofitted Logic: Where modern digital control racks interface with older, high-impedance power bridge modules.
- Heavy-Duty Mining Draglines: Driving massive DC motors where standard gate pulses induce excessive commutation overlap.
It turns a marginal, heat-prone gate drive system into a deterministic, custom-tuned firing loop.
Hardware Architecture & Under-the-Hood Logic
This isn’t a dumb pulse repeater; it’s a hardened signal translator with a site-specific brain. It lives on the EX2100 backplane, acting as the final enforcer between the controller’s logic and the brutal electrical environment of the power bridge. The “EC” suffix indicates specific jumper configurations and firmware hooks designed for this facility’s excitation architecture.
- Customized Logic Pulse Reception: Firing commands arrive from the ESEL board via the backplane. The EGPA buffers these signals, applying a custom delay curve defined in the “EC” firmware to compensate for the specific cable lengths and bridge inductance in this facility.
- High-Current DC/DC Conversion: An onboard converter takes the 125VDC input and generates the pulse power. The “EC” version is factory-tuned to output a sharper, higher-energy leading edge to overcome the gate capacitance of the specific vintage of thyristors used in this plant.
- Hardened Thermal & Fan Interlocking: The board reads the 170°F/190°F thermal switches and the cooling fan tachometer. The “EC” logic tightens the tolerance on the fan feedback, forcing an immediate pulse cutoff if the fan speed drops by more than 5%, preventing a bridge meltdown during a heatwave.
- Output Stage Gating: The conditioned, high-current pulses are driven to the SCR gates. The onboard LEDs give you a real-time visual of the firing sequence, allowing you to diagnose phase imbalances on the fly.

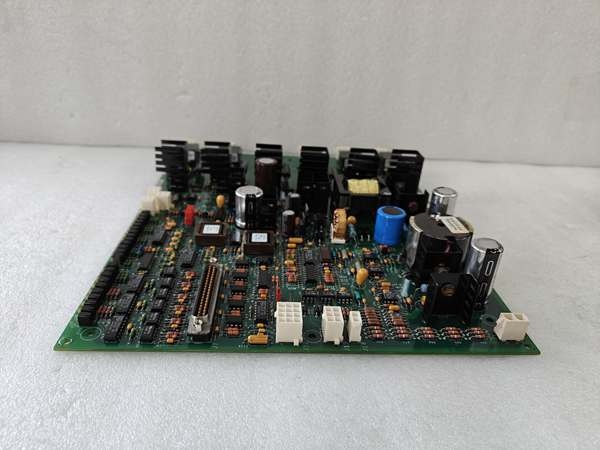

GE IS200EGPAG1BEC
Field Service Pitfalls: What Rookies Get Wrong
Swapping a Standard EGPA for an “EC” Custom Board
You pull a smoking IS200EGPAG1BEC and slam in a generic IS200EGPAG1B from the central warehouse. The green LEDs light up, but the turbine refuses to synchronize. The standard board’s default pulse width is too narrow for the plant’s aging thyristors. The SCRs only partially turn on, overheat, and trigger a “Bridge Over-Temp” alarm within minutes.
- Field Rule: Always match the full part number, including the “EC” suffix. If the failed unit has a project-specific suffix, a standard spare will not work. Order the exact custom part, or you’ll spend your weekend rewriting logic maps instead of drinking beer.
Forcing the 190°F Thermal Switch Wires During Cable Routing
A mechanic is rerouting the thick gate cables and carelessly bends the small-gauge wires leading to the 190°F thermal switch on the heat sink. The insulation cracks, creating a phantom ground path. The EGPA reads a permanent “Over-Temp” condition and refuses to fire the gates, grounding the entire turbine unit for a 48-hour emergency outage.
- Quick Fix: Always use high-temperature Teflon sleeving on thermal switch wiring. Keep the leads away from sharp sheet metal edges. Test the switch continuity with a multimeter before closing the cabinet. A broken thermal switch lead is a guaranteed trip.
Ignoring the 5 Onboard Jumpers (J1-J5) on the Replacement
A junior engineer replaces a failed EGPA board but ignores the jumpers, assuming the factory defaults are universal. The turbine powers up, but the gate pulses are out of phase with the AC sine wave. This causes severe harmonic distortion in the generator terminal voltage, leading to excessive rotor heating.
- Field Rule: Photograph the J1 through J5 jumper settings on the old board before removal. Replicate them exactly. If you’re upgrading from a G1A to a G1BEC, consult the specific site manual (e.g., GEI-100461) to verify the jumper map matches the thyristor module specifications.
