Description
Hard-Numbers: Technical Specifications
- CPU Clock Speed: 1.0 GHz Dual-Core
- RAM: 1 GB DDR2 SDRAM
- Flash Storage: 4 GB Onboard Flash
- Ethernet Ports: 2x 10/100/1000Base-TX (Gigabit RJ45)
- Backplane Interface: IONet (High-Speed Fiber/Electrical Hybrid)
- Operating Temperature: -20°C to +60°C
- Power Consumption: Approx. 25 Watts
- Watchdog Timer: Configurable 100ms to 10s intervals
- Safety Certification: SIL 3 Compliant
- Isolation Rating: 1500V input-to-backplane, 1000V backplane-to-chassis

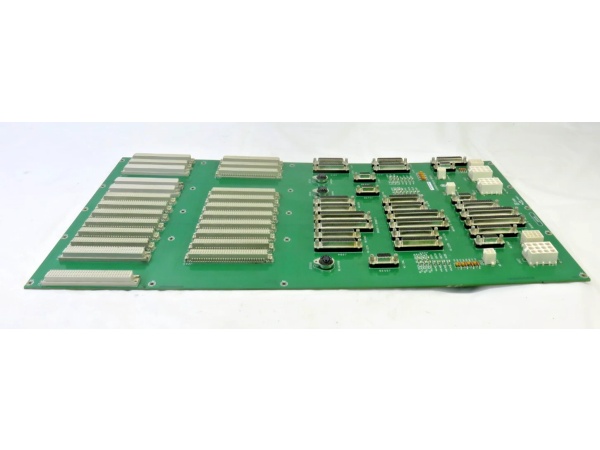

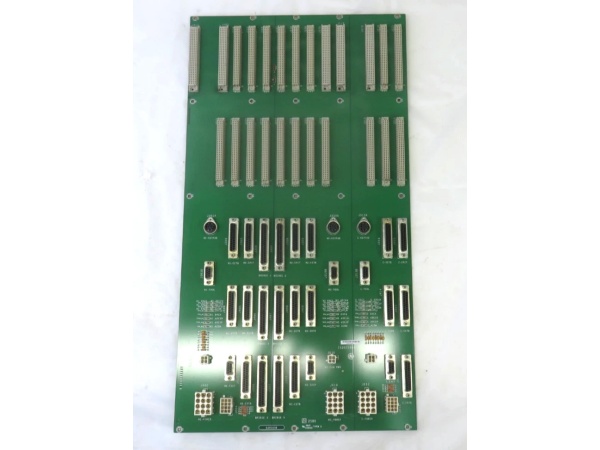

GE IS200EBKPG1CAA
The Real-World Problem It Solves
You’re troubleshooting a 1,000MW combined-cycle turbine that keeps tripping on “Control Loop Timing Fault” during peak summer operation. The old CPU is maxing out at 90% utilization trying to process 10,000+ I/O points, and the backplane is choking on traffic from the Mark VIe I/O packs. This EBKP board eliminates that bottleneck. It crams a 1.0 GHz dual-core engine and a gig of RAM into a single slot, processing complex control sequences and I/O data in real-time without stuttering, even when ambient temps hit 50°C.
Where you’ll typically find it:
- Heavy-Duty Combined-Cycle & Nuclear Power Plants: Executing primary protection and load-sharing sequences for multi-unit turbine trains
- Offshore Platform Turbine Skids: Managing dynamic load balancing and emergency shutdown logic in corrosive, high-humidity environments
- Pipeline Compressor Stations: Processing ultra-low-latency anti-surge control algorithms for high-horsepower centrifugal compressors
It turns a lagging, overheating control system into a deterministic, high-speed processing powerhouse.
Hardware Architecture & Under-the-Hood Logic
This isn’t a passive backplane card; it’s the autonomous brain of the Mark VIe ecosystem. It houses its own Linux-based operating system and runs independently of the rest of the rack until the backplane calls upon it. The “CAA” suffix denotes lead-free component soldering and optimized thermal plane design for enhanced heat dissipation.
- IONet Master Controller: The EBKP sits at the top of the IONet hierarchy. It polls all downstream I/O packs (TBCI, TBAI, TREG) and aggregates their data into a unified process image at millisecond intervals, ensuring zero packet loss even under full load.
- Dual-Core Processing Pipeline: Core 1 is dedicated to the deterministic execution of ToolboxST control sequences (PID loops, sequencing, alarm logic). Core 2 handles background tasks, memory management, and gigabit Ethernet communication with the HMI and plant DCS.
- Hardware Watchdog & Redundancy Switchover: The board monitors its own heartbeat via a hardware timer. If the CPU hangs or the memory encounters a parity fault, the watchdog forces a reset or triggers a seamless handoff to the redundant EBKP unit in under 50 milliseconds, with less than 2ms IONet traffic interruption.
- Gigabit Ethernet Backhaul: Processed data and high-speed event logs are shoved out of the dual Gigabit ports to the plant network, completely offloading the IONet bandwidth for critical control traffic and preventing backplane congestion during emergency shutdowns.

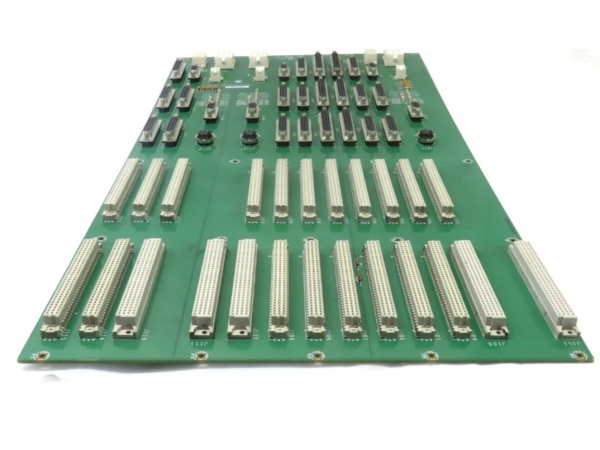

GE IS200EBKPG1CAA
Field Service Pitfalls: What Rookies Get Wrong
Blocking the CPU Heatsink Exhaust Plenum
A rookie installs the EBKP and immediately stacks a high-wattage analog output card directly above it in the next slot. The EBKP’s 1.0 GHz processor pulls 25 watts. Within three months of summer operations, the trapped heat causes the CPU to thermal throttle, leading to random task overruns and a forced turbine trip on “Control Loop Timing Fault.”
- Field Rule: Maintain a minimum 1-slot vertical clearance above and below the EBKP. If you must pack the rack tightly, install a dedicated 24VDC muffin fan directly in front of the EBKP’s heatsink fins. Confirm airflow direction (intake vs. exhaust) matches the factory orientation.
Swapping C Revision for Previous B Revisions Without Firmware Audit
You pull a smoking IS200EBKPG1B and slam in a new IS200EBKPG1CAA because “it’s newer and faster.” The green LED lights up, but the HMI screams “Firmware Mismatch” and the turbine refuses to roll. The CAA hardware ships with a newer bootloader/firmware baseline that clashes with the legacy config files stored on the old flash drive.
- Quick Fix: Before a cold swap, insert a USB drive with the latest compatible firmware package into the front port of the new EBKP. Allow the board to auto-flash its baseline before inserting it into the live rack. Never assume the firmware on a new card matches your 5-year-old application.
Attempting Local Repairs on Lead-Free (RoHS 6/6) Boards
A tech notices a cold solder joint on a capacitor near the CPU heatsink and tries to touch it up with a standard 63/37 leaded solder iron. The lead-free solder on the board has a higher melting point. The tech cranks the iron to 400°C, delaminates the PCB trace, and utterly destroys the $10,000 board.
- Field Rule: Never attempt to solder or rework RoHS 6/6 (lead-free) hardware in the field. These boards require specialized lead-free solder paste and precise temperature-controlled reflow ovens. If you spot a physical defect, RMA the board to a certified repair center with a lead-free capable line. You are not equipped to fix it onsite.
