Description
Hard-Numbers: Technical Specifications
- Input Voltage: 85-264 VAC 47-63 Hz / 125-375 VDC
- Output 1 Voltage: 24VDC ±1% regulation, 12A max continuous
- Output 2 Voltage: 48VDC ±1% regulation, 6A max continuous
- Total Power Capacity: 300W combined
- Isolation Rating: 1500V input-to-output, 1000V output-to-chassis
- Overload Protection: 105-150% adjustable trip point, auto-recovery
- Operating Temperature: -20°C to +60°C
- Redundancy Mode: 1:1 Active/Standby with load balancing
- Switchover Time: < 5ms output sag
- MTBF: ≥ 300,000 hours
- Backplane Communication: IONet (health reporting to main controller)

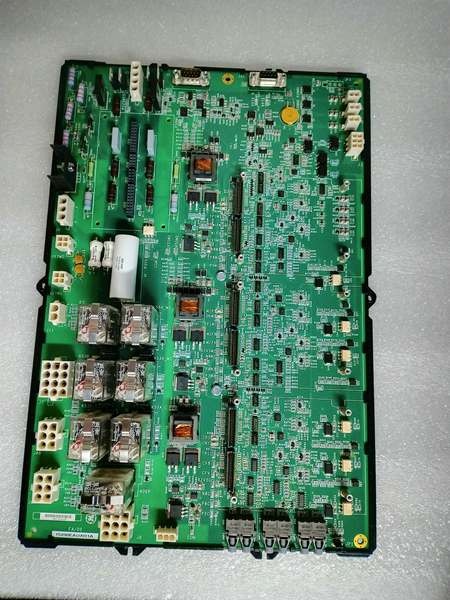

GE IS200EAUXH1AAA
The Real-World Problem It Solves
You’re staring at a legacy 500MW coal-fired plant undergoing a control system overhaul. The old distributed 24VDC/48VDC supplies are dropping offline during grid transients because their simple diodes can’t balance the load between redundant units. You need a tailored power solution that handles the specific load profiles of your new Mark VIe I/O packs without frying them during a redundancy switchover. This “ZZ” revision EAUX board eliminates that nightmare. It consolidates power into a single, project-tuned unit that actively balances the load and clamps voltage sags, keeping your turbine online through the worst grid flickers.
Where you’ll typically find it:
- Heavy-duty fossil and nuclear power plants: Powering 100+ Mark VIe I/O packs with customized redundancy logic to prevent simultaneous failures.
- Offshore platform turbine skids: Delivering clean, isolated power to SIS-rated sensors in corrosive, high-humidity Class 1 Div 2 zones.
- Large-scale refinery cogeneration units: Supporting auxiliary equipment like lube oil pumps and emergency shutdown (ESD) valves with stable, monitored power.
It turns a brittle, unbalanced power distribution network into a deterministic, fail-safe energy source.
Hardware Architecture & Under-the-Hood Logic
This board has no microprocessor. It relies entirely on high-speed analog comparators and digital logic gates to manage power distribution and redundancy. It lives on the Mark VIe backplane primarily for health telemetry, not for core processing. This “ZZ” suffix indicates specific bill-of-materials and trace routing tailored for a particular facility’s I/O architecture.
- AC/DC Rectification & EMI Suppression: Raw plant power enters the input stage. Massive EMI filters scrub electrical hash from nearby 4160V motor drives, followed by full-wave rectification and bulk capacitor smoothing to create a rock-solid intermediate DC bus.
- Independent Dual-Regulator Topology: Two isolated DC-DC buck converters generate the 24VDC and 48VDC rails. Onboard op-amps constantly monitor output voltage, adjusting the PWM duty cycle to hold ±1% regulation even when you’re pulling 90% of the rated load.
- Active Redundancy Load Balancing: The board communicates with its redundant twin via the IONet backplane. Unlike a dumb diode-OR setup, it actively shifts the load between the two units to equalize wear and tear. If the primary fails, it seamlessly picks up the slack with less than 5 milliseconds of voltage droop.
- Analog Current Telemetry: Integrated Hall-effect sensors measure the instantaneous output current on both rails. These analog values are fed to the Mark VIe controller for real-time load monitoring, predictive maintenance alerts, and historical trending.

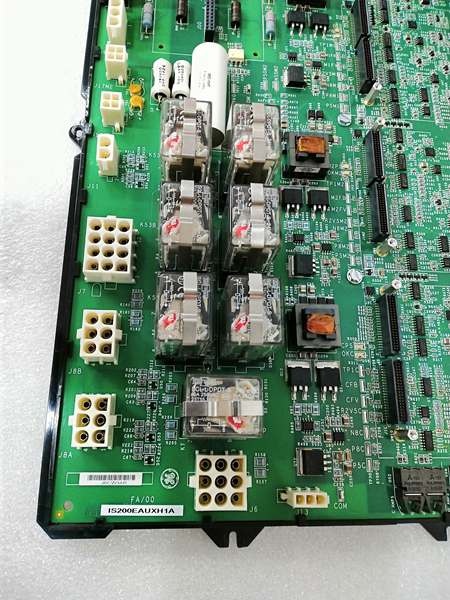

GE IS200EAUXH1AAA
Field Service Pitfalls: What Rookies Get Wrong
Swapping a “ZZ” Custom Board for a Generic EAUX Spare
A rookie pulls a smoking IS200EAUXH1AZZ from a refinery turbine and swaps it with a generic IS200EAUXH1A from the warehouse. The green LEDs turn on, but the turbine refuses to roll. The “ZZ” board had custom firmware hooks and load-balancing thresholds specific to that refinery’s DCS. The generic card interprets the I/O load as an overload and kills the outputs.
- Field Rule: Always match the full part number, including the “ZZ” suffix. If the failed unit has a project-specific suffix, a standard spare will not work. Order the exact custom part from the OEM or a specialized surplus dealer.
Ignoring Input Phase Rotation on 3-Phase Feeds
A tech wires a 208V 3-phase supply to the EAUX board but ignores the phase sequence. The board powers up fine, but the unbalanced load on the neutral conductor causes the internal step-down transformer to overheat, leading to a catastrophic failure six months down the line.
- Quick Fix: Always test phase rotation with a volt-ohm meter before energizing. Use a phase sequence tester to confirm L1-L2-L3 rotation matches the plant standard. Tighten all input power lugs to a 15 lb-in torque spec to prevent loose connections that cause arcing and hot spots.
Using #18 AWG Wire for the 24VDC 12A Output
To squeeze through a tight conduit, a junior engineer uses #18 AWG wire for the main 24VDC feed to the I/O rack. The high current causes the wire to heat up past 90°C, melting the insulation and creating a short circuit that forces the EAUX into an indefinite overload lockout.
- Field Rule: Follow the #14 AWG (2.08 mm²) minimum wire gauge rule for the 24VDC 12A output, and #16 AWG for the 48VDC 6A output. Use finely stranded copper wire for vibration resistance, and crimp on wire ferrules to prevent strand fraying. Torque all output lugs down to 10 lb-in.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
