Description
Hard-Numbers: Technical Specifications
- Processor: 32-bit Floating-Point DSP at 160 MHz (320 MFLOPS)
- RAM: 128 MB DDR
- Flash Memory: 64 MB
- SRAM: 4 MB
- Analog Inputs: 8 channels (16-bit, 500 kSPS)
- Digital/Pulse Inputs: 4 channels (up to 500 kHz)
- Communication Ports: 2x 10/100 Ethernet, 1x USB, 1x RS-485, Mark VIe Backplane
- Power Requirements: 24 VDC (±10%), 0.6 A max
- Operating Temperature: -40°C to +85°C
- MTBF: 2,200,000 hours (@ 40°C)

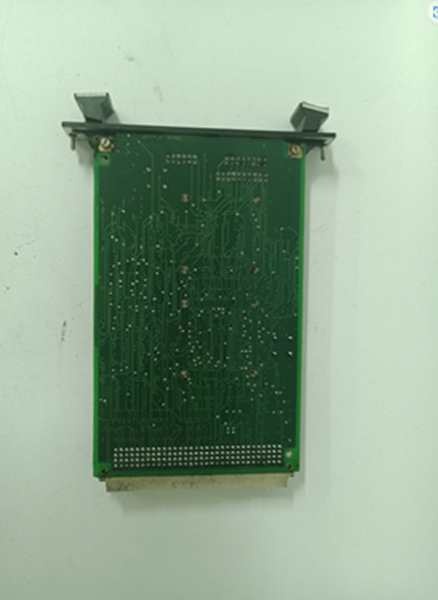

GE IS200DSPXH1Q
The Real-World Problem It Solves
You’re troubleshooting a 9FA gas turbine generator that keeps hunting on reactive power. The old analog exciter is struggling to keep up with rapid grid voltage swings. A standard controller’s 50ms scan time is an eternity in excitation control. This DSPX board eliminates that lag. It crams a 160MHz floating-point engine into a single slot, calculating complex PID loops and firing thyristor gates in microseconds to keep the terminal voltage rock-solid.
Where you’ll typically find it:
- EX2100 Excitation Cabinets: Managing generator terminal voltage, power factor limits, and V/Hz curves.
- Innovation Series Drive Racks: Processing feedback from 5000:5 CTs for large 4160V AC motor drives.
- Retrofit Projects: Replacing obsolete analog voltage regulators in legacy turbine-generator sets.
It turns a sluggish, oscillating voltage regulation system into a tight, deterministic control loop.
Hardware Architecture & Under-the-Hood Logic
This isn’t a passive I/O receptor; it’s a high-speed industrial computer built for the violent electrical environment of a power plant. It sits on the Mark VI/Innovation Series backplane, acting as the brain for excitation or drive control.
- Floating-Point Math Engine: The 160MHz DSP handles the heavy math. It runs the automatic voltage regulation (AVR) algorithm, power system stabilizer (PSS) logic, and various ceiling/ceiling voltage limiters. It converts raw millivolt signals from CTs and PTs into actionable firing angles for the thyristor bridge.
- Dedicated ASIC Logic: Nanosecond-critical tasks—like gating the thyristors, managing alpha angle calculations, and locking onto the generator bus frequency—are offloaded to a dedicated Application-Specific Integrated Circuit (ASIC). This guarantees timing accuracy completely independent of the processor’s workload.
- High-Speed Data Acquisition: Eight 16-bit Analog-to-Digital Converters (ADCs) sample your generator bus voltage and stator current at 500,000 samples per second. This massive oversampling prevents aliasing and catches transient grid disturbances that slower cards would completely miss.
- Multi-Protocol Backhaul: Processed excitation parameters and raw waveform data are packaged and fired out of the dual 10/100 Ethernet ports to the plant DCS and the Mark VI HMI, bypassing the congested backplane traffic.
GE IS200DSPXH1Q
Field Service Pitfalls: What Rookies Get Wrong
Swapping H1D for H1Q Without Checking the Firmware Baseline

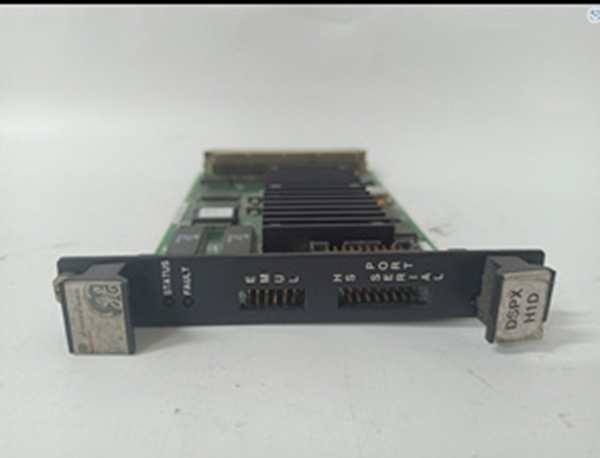

A rookie pulls a smoking IS200DSPXH1D and slams in a new IS200DSPXH1Q because “they’re both DSPX boards.” The green LED lights up, but the HMI screams “Firmware Checksum Error” and the exciter refuses to pick up. The “Q” hardware ships with a newer bootloader/firmware baseline that clashes with the legacy config files stored on the old flash drive.
- Field Rule: Before a cold swap, insert a USB drive with the latest compatible firmware package into the front port of the new DSPX. Allow the board to auto-flash its baseline before inserting it into the live rack. Never assume the firmware on a new revision matches your 10-year-old application.
Using a Pocket Multimeter for Analog Calibration
A tech calibrates the generator PT inputs using a cheap $50 handheld multimeter. He dials the software gain and offset to match the meter’s reading. Three weeks later, a grid transient causes a minor voltage dip, and the DSPX misinterprets the signal, tripping the unit on “Field Overcurrent.”
- Quick Fix: Always use a calibrated 6.5-digit benchtop multimeter (Fluke 8508A or equivalent) for analog input calibration. Verify the burden resistors on the board match your CT/PT ratios. Never trust a pocket meter for high-stakes excitation tuning.
Cooking the DSP Chip with Neglected Heatsink Maintenance

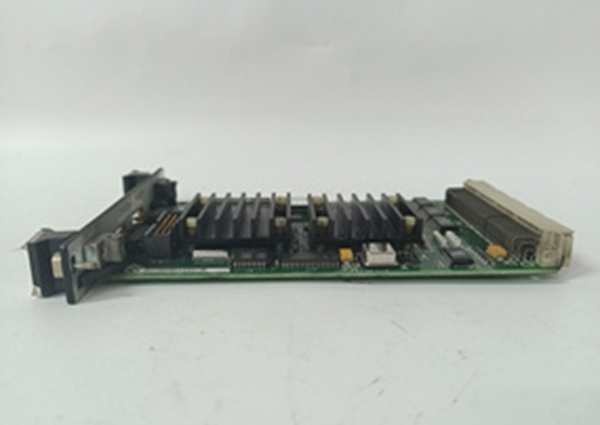

A mechanic cleans the control cabinet filters but forgets to vacuum the fins on the DSPX board’s heatsink. Six months later, during a heatwave, the turbine trips on “Exciter Processor Overtemp.” The dust blanket acted as an insulator, baking the 160MHz DSP at 95°C until it throttled and crashed.
- Field Rule: Perform a monthly visual inspection of the DSPX heatsink. Use low-pressure, dry nitrogen or canned air to blow out the heatsink fins. If the control cabinet ambient temperature exceeds 55°C, verify the exhaust plenum fans are operational and the intake filters are <10% clogged.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
