Hard-Numbers: Technical Specifications
- Supply Voltage: 24 VDC (with internal fusing and voltage regulation).
- Operating Temperature: -20°C to +60°C.
- Dimensions (approx.): 110 mm × 240 mm.
- Mounting Pattern: Factory-drilled holes surrounded by conductive metal rings.
- Mechanical Form Factor: PCB assembly without a faceplate, mounted directly to the rack chassis.
- Signal Processing: Analog and Digital I/O capabilities (channel counts vary by specific application).
- Connectivity: Vertical pin connectors for backplane and peripheral interfacing.
- Weight (approx.): ~0.25 kg.

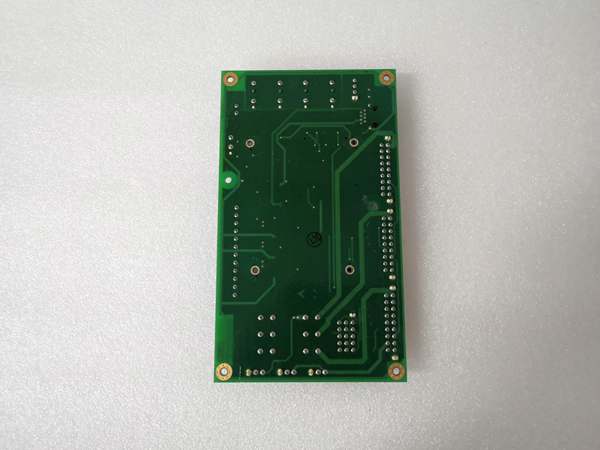

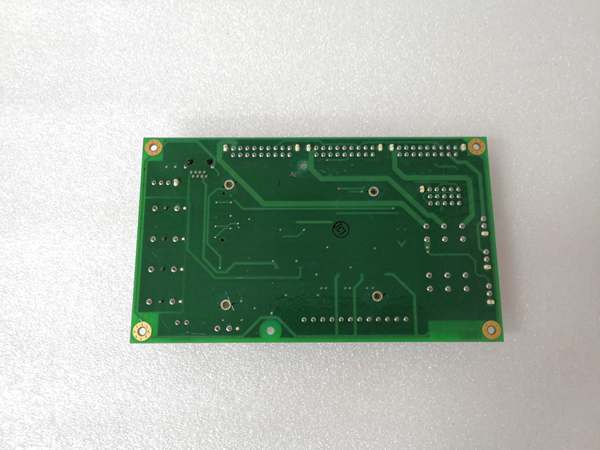

GE IS200AEPCH1BAA
The Real-World Problem It Solves
Turbine control cabinets are brutal environments. Constant low-frequency vibrations loosen standard screws, and the electrical hash from nearby 480V motor drives induces phantom signals into your sensitive I/O. You need a rock-solid, grounded foundation for your auxiliary signals—like lube oil cooler fans and emergency stop contacts. This AEPC board eliminates the need for a messy external marshalling panel by centralizing power distribution and signal buffering onto a single, vibration-proof PCB.
Where you’ll typically find it:
- Gas/Steam Turbine Auxiliary Panels: Processing signals from lube oil coolers, seal oil systems, or ventilation fans.
- Wind Turbine Nacelle Controls: Interfacing with yaw motors, nacelle cooling systems, and emergency stop loops.
- Retrofit and Upgrade Projects: Replacing outdated third-party interface relays with a GE-standard, vibration-resistant solution.
It’s the unsung hero that keeps the “small stuff” running reliably so the main turbine control loop can focus on the heavy lifting.
Hardware Architecture & Under-the-Hood Logic
This isn’t a standalone computer; it’s a purpose-built circuit assembly living inside a larger Mark VI ecosystem. While the main controller handles complex logic, this board takes the brunt of the physical environment.
- Chassis Grounding & Mechanical Stability: The defining feature is the conductive material surrounding the drilled mounting holes. When secured to the metal rack frame using metallic hardware, this creates a low-impedance ground path. It drastically improves EMI/RFI rejection and prevents the PCB from cracking under turbine-induced vibrations.
- Signal Buffering & Conditioning: Raw signals from field devices (like 4-20mA transmitters or 24VDC proximity switches) enter the board. Internal resistors, capacitors, and buffer amplifiers condition these signals, scaling them appropriately and filtering out electrical hash before passing them to the main processor.
- Inter-board Communication: Vertical pin connectors on the PCB establish a physical link to the Mark VI backplane or other adjacent boards. It acts as a translator, taking processed field data and formatting it into the data packets the main controller expects.
GE IS200AEPCH1BAA
Field Service Pitfalls: What Rookies Get Wrong
Using Nylon Standoffs Instead of Conductive Hardware
New techs see the mounting holes and instinctively reach for the plastic nylon standoffs lying around the shop. They screw the board in, and it feels solid. Three months later, the turbine is throwing random “Sensor Fault” alarms during high-vibration events because the board has no chassis ground.
- Field Rule: Always use metallic standoffs and screws when mounting AEPC family boards. Ensure there is solid metal-on-metal contact between the screw head/washer and the conductive ring around the hole. Torque them down firmly—don’t strip the threads.
Forcing a Mismatched Revision into an Existing Rack
You have a dead IS200AEPCH1 on hand and a brand new IS200AEPCH1CCB sitting on the shelf. You swap them because “a board is a board.” The system powers up, but the diagnostic LED blinks a code you’ve never seen, and the controller refuses to talk to the card.
- Quick Fix: Never assume hardware revisions are plug-and-play. Check the full part number on the failed unit. If the revision codes (the letters after the numbers) don’t match, you may need to update the controller’s firmware or request a specific older revision from the supplier. Don’t guess—verify.
Chasing Ghost Faults Due to Poor Wire Management
An engineer crams 20 unlabeled wires into the terminal strip connected to this board. Six months later, a vibration-induced wire chafes against the sharp edge of the neighboring terminal block. It intermittently shorts to ground, causing the turbine to trip on a false “Low Lube Oil Pressure” alarm.
- Field Rule: Use labeled, heat-shrink tubing on every wire connected to this PCB. Route wires neatly using DIN-rail mounted cable duct or zip-ties. Ensure no bare conductors are exposed and that wires cannot rub against sharp metal edges inside the cabinet. A tidy cabinet is a reliable cabinet.
