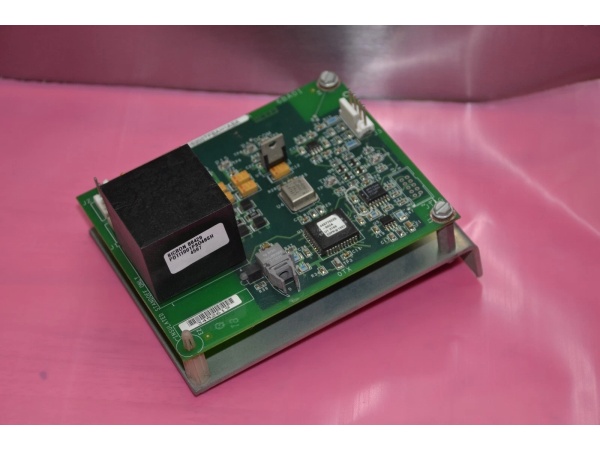

GE IS200AEADH1AAA | Mark VIe AEAD Diagnostic Board Revision – Field Service Notes

  • Model:​ IS200AEADH1AAA
  • Alt. P/N:​ IS200AEADH1A (base predecessor); IC698RMX016 (sometimes confused in legacy systems).
  • Product Series:​ GE Speedtronic Mark VIe
  • Hardware Type:​ AEAD (Application-specific Electronic Assembly – Diagnostic) Communication Board
  • Key Feature:​ Hardware revision ‘AAA’​ denoting specific FPGA/ASIC silicon steppings and firmware baseline.
  • Primary Field Use:​ Provides the primary serial and Ethernet gateway for HMIs, laptops running ToolboxST, and plant SCADA systems to communicate with the Mark VIe controller.
Get a Quote
In Stock
Manufacturer:
Part number: GE IS200AEADH1AAA
Our extensive catalogue, including : GE IS200AEADH1AAA , is available now for dispatch to the worldwide. Brand:
The listed price is not final; the actual selling price is negotiable based on current market conditions.

Description

Hard-Numbers: Technical Specifications

  • Board Architecture:​ Dedicated Communication Coprocessor​ with IONet interface.
  • Serial Ports:​ 2x RS-232/RS-485​ (DB9 connectors) supporting Modbus RTU/ASCII.
  • Ethernet Port:​ 1x 10/100Base-TX​ (RJ45) for Modbus TCP/IP and TCP diagnostics.
  • Protocol Support:​ Modbus RTU Master/Slave, Modbus TCP, GE Proprietary Diagnostic Protocol.
  • Memory:​ Onboard SDRAM​ for data buffering and Flash​ for configuration storage.
  • Power Requirements:​ 24 VDC​ sourced directly from the Mark VIe backplane.
  • Operating Temperature:​ -30°C to +65°C​ (-22°F to +149°F).
  • Status LEDs:​ PWR​ (Power), ETH​ (Ethernet Link/Activity), COM1/COM2​ (Serial Activity), FAULT.
GE IS200AEADH1AAA

GE IS200AEADH1AAA

The Real-World Problem It Solves

Rookies try to plug laptops directly into the core Mark VIe CPUs to troubleshoot. This bogs down the main processor and opens a massive cybersecurity hole. This AEAD board acts as the hardened gatekeeper, handling all the chatty external traffic so the turbine controller can stay focused on keeping the shaft spinning.

Where you’ll typically find it:

  • Control Room Consoles:​ Mounted in the Mark VIe rack, cabled directly to the operator’s HMI touchscreen or thin client.
  • Engineer’s Workstation:​ Connected via serial or Ethernet to allow technicians to pull historical trends and perform online edits using ToolboxST.
  • Plant SCADA Integration:​ Acting as a Modbus gateway to push critical turbine data (speed, exhaust temp, vibration) to the refinery’s central DCS.

It ensures the HMI sees the data without the controller ever having to leave its protective bubble.



Hardware Architecture & Under-the-Hood Logic

This isn’t just a passive port expander; it’s a smart proxy. The ‘AAA’ suffix implies the latest silicon stepping, offering improved noise immunity and faster packet processing than its predecessors.

  1. Backplane Interface (IONet):​ The card-edge connector taps into the high-speed Mark VIe IONet backplane, requesting data from the main CPUs (CPEs) or I/O packs as needed.
  2. Coprocessor Offloading:​ The onboard ASIC/FPGA handles the entire TCP/IP and serial stack. It translates raw IONet packets into Modbus registers or ToolboxST frames, entirely offloading the main controller’s CPU.
  3. Traffic Isolation & Buffering:​ It acts as a firewall. Malformed packets or electrical noise from a dirty serial line terminate here. They never reach the IONet. It uses onboard SRAM to buffer bursty HMI traffic.
  4. Diagnostic Heartbeat:​ The coprocessor continuously monitors its own health. If a serial port is shorted or the Ethernet PHY fails, it lights the FAULT LED and sends a diagnostic packet to the main controller to log the event.
GE IS200AEADH1AAA

GE IS200AEADH1AAA

Field Service Pitfalls: What Rookies Get Wrong

Using a Straight-Through Serial Cable

You grab a standard DB9 cable from the supply cabinet to connect your laptop to COM1. The link stays dead. The AEAD uses a null-modem pinout (TX/RX crossed), not a straight-through pinout.

  • Field Rule:​ Always carry a GE-specified null-modem serial cable​ (often gray or black with specific labeling). Test continuity on pins 2 and 3 before you spend an hour blaming the software.

Forgetting the “AAA” Revision Matters

You pull a standard IS200AEADH1A off the shelf to replace a failed IS200AEADH1AAA. The card fits, but ToolboxST throws a “Hardware Version Mismatch” error during the download, or the Ethernet port refuses to link at 100Mbps.

  • Quick Fix:​ Read the full part number on the failed module’s silkscreen.​ The AAA suffix matters. If the controller’s firmware expects the AAA silicon stepping, a base model might fail self-tests or lack the specific noise filtering required for your site’s EMI environment. Order the exact revision.

Baud Rate Parity Blindness

You configure the AEAD for 19200 baud, 8 data bits, No parity in ToolboxST. The plant historian expects 9600 baud, 7 data bits, Even parity. The link lights up, but the data looks like gibberish (or doesn’t move at all).

  • Field Rule:​ Open the Controller Folder -> I/O -> AEAD Board​ in ToolboxST. Click into Port Configuration. Match the Baud Rate, Data Bits, Parity, and Stop Bits​ exactly to the external device. A single bit mismatch is a total communication killer.
