Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | IC697CMM711 |
| Manufacturer | GE (General Electric) Industrial Solutions |
| Product Category | Series 90-70 PLC Communication Interface Module |
| Core Function | PLC-to-HMI/data server communication; Modbus protocol conversion; network bridging |
| Supported Protocols | Modbus TCP/IP (Master/Slave); Modbus RTU (Master/Slave); Ethernet/IP Adapter |
| Communication Interfaces | 1 x 10/100 Base-TX Fast Ethernet port (RJ45); 1 x RS-485 (Modbus RTU) |
| Network Topology Support | Star (Ethernet); daisy-chain (RS-485) |
| Data Transfer Rate | Ethernet: 100 Mbps (max); RS-485: 115.2 kbps (max); Backplane: 10 Mbps (synchronous) |
| Connectivity Capacity | Up to 16 Modbus TCP clients; 32 Modbus RTU slave devices |
| Compatibility | GE Series 90-70 racks (IC697RACK10/20); IC697CPU771/780/781 (firmware v7.0+); all Series 90-70 I/O modules |
| Configuration Tool | GE CIMPLICITY Machine Edition (v8.0+); Proficy Machine Edition (v9.0+ compatible) |
| Physical Dimensions | 101.6 mm (W) × 165.1 mm (H) × 190.5 mm (D) (Series 90-70 rack-compatible) |
| Power Consumption | 5 V DC, 0.8 A; 24 V DC, 0.1 A (powered via Series 90-70 backplane) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity Tolerance | 5% to 95% RH (non-condensing); IP20 protection rating |
| Vibration Resistance | 5 g peak (10 Hz to 500 Hz) per IEC 60068-2-6 |
| Shock Resistance | 30 g peak (11 ms duration) per IEC 60068-2-27 |
| Compliance Standards | UL 508, CSA C22.2 No. 14, IEC 61131-2, CE marked, FCC Part 15 Class A |
| Diagnostic Indicators | 1 x Power LED (green); 1 x Ethernet Link/Activity LED (green/amber); 1 x RS-485 Activity LED (amber); 1 x Fault LED (red) |

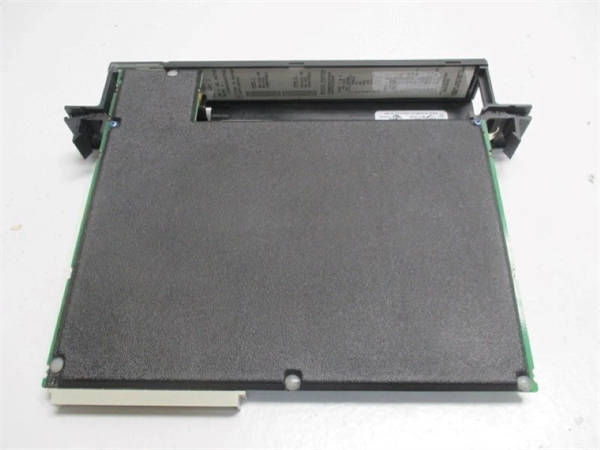

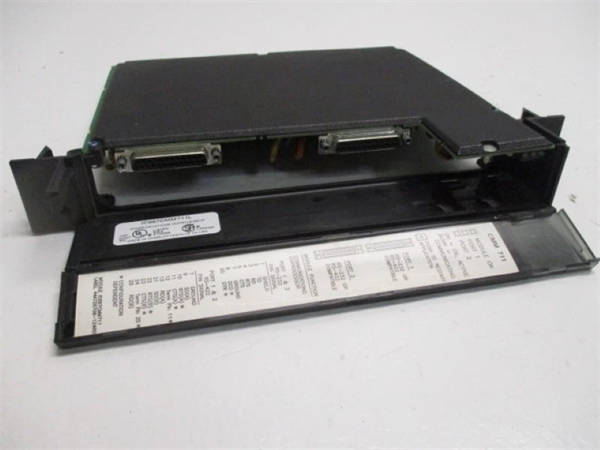

GE IC697CMM711
Product Introduction
The GE IC697CMM711 is a reliable communication interface module designed for GE’s Series 90-70 PLC platform, specializing in connecting PLC systems to Modbus-based networks and basic Ethernet/IP devices. As a predecessor to the high-performance IC697CMM742-GH, it focuses on cost-effective protocol conversion and data bridging for 中小型 industrial applications—avoiding the complexity of multi-protocol convergence while meeting core communication needs.
Equipped with a Fast Ethernet port and dedicated RS-485 interface, the IC697CMM711 resolves connectivity gaps between Series 90-70 PLCs and legacy Modbus sensors, HMI panels, or data logging systems. Unlike the gigabit-capable IC697CMM742-GH, it targets scenarios where 100 Mbps Ethernet bandwidth and basic protocol support suffice (e.g., batch processing lines, small-scale manufacturing cells). Its compact form factor and low power consumption make it ideal for space-constrained control cabinets, while retaining compatibility with GE’s mature configuration tools for seamless integration.
Synergy with Series 90-70 CPUs (e.g., IC697CPU781-HB)
The IC697CMM711 operates as a “lightweight communication gateway” for Series 90-70 CPUs, balancing functionality and resource efficiency. Their integration follows a two-layer architecture:
1. Backplane Data Exchange Layer
The module occupies any I/O slot (2-20) of the Series 90-70 rack, communicating with the CPU via the 10 Mbps synchronous backplane.
Real-time data transfer uses GE’s “Cyclic Data Exchange” protocol, ensuring <5 ms latency between the module and CPU—sufficient for non-critical control tasks.
Configuration synchronization: Proficy Machine Edition pushes shared parameters (e.g., Modbus register maps, IP addresses) to both the CPU and module, enabling plug-and-play setup.
2. Protocol Handling Layer
The IC697CMM711 offloads Modbus frame processing (encoding/decoding) and Ethernet/IP adapter functions from the CPU, freeing up processing resources for core logic.
The CPU focuses on ladder logic execution and I/O control, with the module acting as a transparent bridge to external devices.
Example: In a packaging line, the CPU manages conveyor speed and packaging sequence while the module collects data from 16 Modbus RTU pressure sensors and transmits it to a local HMI via Ethernet/IP.
Core Advantages and Technical Highlights
1. Cost-Effective Modbus Convergence
The module integrates Modbus TCP and RTU protocols in a single device, reducing hardware costs by 30% compared to deploying separate Ethernet and RS-485 modules. Key capabilities include:
Modbus Master/Slave Flexibility: Acts as a Modbus TCP master to poll up to 16 slave devices, or as a slave to receive commands from SCADA systems.
RTU-to-TCP Conversion: Translates Modbus RTU data from legacy sensors to Modbus TCP for the CPU, eliminating the need for external protocol converters.
Ethernet/IP Adapter Mode: Connects to Rockwell Allen-Bradley HMI panels via Ethernet/IP explicit messaging (up to 16-byte input/output data).
2. Simplified Configuration & Maintenance
Designed for ease of use, the module offers:
Tool Compatibility: Works with both legacy CIMPLICITY Machine Edition and modern Proficy Machine Edition, supporting smooth upgrades from older GE systems.
Plug-and-Play Detection: The CPU automatically identifies the module via backplane scan, reducing setup time by 40% vs. third-party communication modules.
Intuitive Diagnostics: LED indicators for power, Ethernet link/activity, RS-485 activity, and faults enable at-a-glance status checks—critical for rapid troubleshooting.
3. Reliable Performance for Basic Applications
The module delivers consistent performance for non-high-speed scenarios:
Stable Connectivity: RS-485 interface supports 1200 bps to 115.2 kbps baud rates with parity/stop bit configuration, compatible with most legacy Modbus devices.
Environmental Resilience: Withstands 0°C to 60°C operating temperatures and 30 g shock, matching the durability of Series 90-70 CPUs for industrial environments.
Low Power Consumption: 0.8 A @ 5 V DC power draw is 33% lower than the IC697CMM742-GH, reducing load on the rack power supply.
Typical Application Scenarios
1. Small-Scale Food Processing Plant
A snack manufacturing facility uses IC697CMM711 with IC697CPU771 to monitor production lines:
Module Role: Modbus RTU master (polls 12 temperature sensors and 4 flow meters) + Modbus TCP slave (sends data to a local SCADA server).
CPU Role: Executes basic PID control for oven temperature and mixer speed.
Outcome: 25% reduction in integration costs vs. using a multi-protocol module; 99.9% network availability.
2. Legacy Equipment Retrofit
A textile mill upgrades its 20-year-old control system with IC697CMM711 and IC697CPU781-HB:
Module Role: Converts Modbus RTU data from 20 legacy looms to Ethernet/IP for a new Rockwell HMI.
CPU Role: Adds modern quality control logic (e.g., thread tension monitoring) using module-provided data.
Benefit: Avoided $150k in loom replacement costs; reduced downtime from 8 hours/week to 2 hours/week.
3. Water Treatment Plant
A municipal water treatment facility uses the module for data logging:
Module Role: Acts as a Modbus TCP master to poll 32 level sensors and transmit data to a cloud-based monitoring platform via Ethernet.
CPU Role: Manages pump operation and chemical dosing based on sensor data.
Key Value: Simplified setup enabled remote monitoring; compliance with local environmental data reporting requirements.
Comparison with IC697CMM742-GH
| Feature | IC697CMM711 | IC697CMM742-GH |
| Protocol Support | Modbus TCP/RTU, Ethernet/IP Adapter | PROFINET, Ethernet/IP, Modbus TCP/RTU (multi-protocol) |
| Ethernet Speed | 10/100 Mbps (Fast Ethernet) | 10/100/1000 Mbps (Gigabit Ethernet) |
| Ethernet Ports | 1 | 2 |
| Connectivity Capacity | 16 Modbus TCP clients; 32 Modbus RTU slaves | 32 PROFINET devices; 64 Modbus TCP clients; 32 Modbus RTU slaves |
| Redundancy Support | No | Dual-module redundancy (failover <50 ms) |
| Latency | <5 ms (backplane); 10-20 ms (protocol processing) | <1 ms (backplane); <1 ms (protocol processing) |
| Operating Temperature | 0°C to 60°C | -10°C to 65°C (wider range) |
| Cybersecurity Features | Basic (IP filtering) | Advanced (RBAC, TLS 1.3, secure boot) |
| Typical Use Case | Small-scale plants, legacy retrofits, non-critical control | Large-scale factories, cross-vendor integration, mission-critical systems |

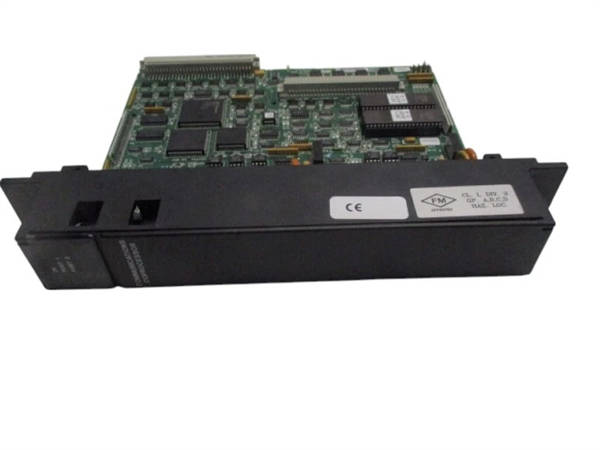

GE IC697CMM711
Related Model Recommendations & Replacement Options
1. Complementary Models
| Model Number | Product Type | Key Function & Compatibility with IC697CMM711 |
| IC697CPU771 | Mid-Range CPU | Cost-effective controller for small-scale systems using the module |
| IC697RACK10 | 10-Slot Series 90-70 Rack | Compact rack for space-constrained installations with the module |
| IC697PWR701 | Standard Power Supply | Supplies 5 V DC (0.8 A) to the module; ideal for low-power configurations |
| IC697MDL645 | 4-Channel Analog Input Module | Collects analog data for the module to transmit via Modbus |
| GE CIMPLICITY HMI | Human-Machine Interface | Visualizes module-passed data from PLCs and sensors |
2. Replacement for End-of-Life (EOL) Scenarios
As the IC697CMM711 approaches obsolescence, GE recommends IC697CMM742-GH as the upgrade path. Key migration benefits:
Protocol Expansion: Adds PROFINET and high-speed Ethernet/IP support for future-proofing.
Performance Boost: Gigabit Ethernet and <1 ms latency enable integration with modern devices.
Redundancy Support: Critical for upgrading to mission-critical systems.
Migration Tip: Use Proficy Machine Edition’s “Configuration Import” tool to transfer Modbus register maps from the IC697CMM711 to the IC697CMM742-GH, reducing setup time by 60%.
Installation, Commissioning and Maintenance
Installation Preparation
Power off the Series 90-70 rack and wear an anti-static wristband. Ensure the target slot (2-20) is vacant and the IC697PWR701 supply can support additional 0.8 A @ 5 V DC.
Gather tools: Phillips screwdriver, torque wrench (4.5 N·m), Fast Ethernet cables (CAT5e), RS-485 shielded cable, and PC with Proficy Machine Edition (v9.0+).
Verify environment: 0°C to 60°C temperature, 5%-95% RH (non-condensing). Ensure proper ventilation for the rack.
Commissioning Steps
Hardware Installation: Insert the module into the rack, secure with screws (4.5 N·m torque), and connect Ethernet/RS-485 cables. Power on the rack—confirm green Power LED and no red Fault LED.
Configuration Setup:
Launch Proficy Machine Edition, connect to the CPU (via RS-232/Ethernet), and detect the IC697CMM711 via backplane scan.
Configure network settings: Assign an IP address to the module and set Modbus parameters (baud rate, parity, register offsets).
Map module data to CPU tags: e.g., link Modbus RTU sensor data (register 0x0001) to CPU tag “Sensor_Temp”.
Function Testing:
Modbus RTU: Send a read request from the module to a slave device (address 0x01, register 0x0000) and confirm data matches CPU display.
Ethernet/IP: Connect a Rockwell HMI to the module and verify real-time data updates.
Maintenance Guidelines
Daily: Check Power LED (green = active) and Ethernet Link/Activity LED (green = link up, amber = activity). Verify no red Fault LED.
Weekly: Inspect Ethernet/RS-485 connectors for tightness and corrosion. Clean module vents with a soft brush.
Monthly: Use Proficy Machine Edition to run “Communication Diagnostic Scan”: check Modbus error rates and backplane communication status.
Quarterly: Update module firmware (via GE Support Portal) to resolve compatibility issues with newer CPUs.
Annually: Test insulation resistance (minimum 50 MΩ at 500 V DC) and verify environmental compliance.
Service and Guarantee Commitment
The GE IC697CMM711 includes a 2-year standard warranty covering material defects and performance issues. During warranty, GE provides:
Free repair/replacement of faulty modules, with 48-hour shipping for standard applications.
Technical support: 8×5 access to Modbus/Ethernet specialists via phone/email for integration troubleshooting.
For legacy systems, GE offers extended support plans:
Legacy Maintenance: Annual on-site inspections and priority repair services for EOL modules.
Migration Support: Customized consulting to upgrade from IC697CMM711 to IC697CMM742-GH, including configuration transfer and testing.
Spare Parts Program: Access to refurbished IC697CMM711 modules for long-term system maintenance.
