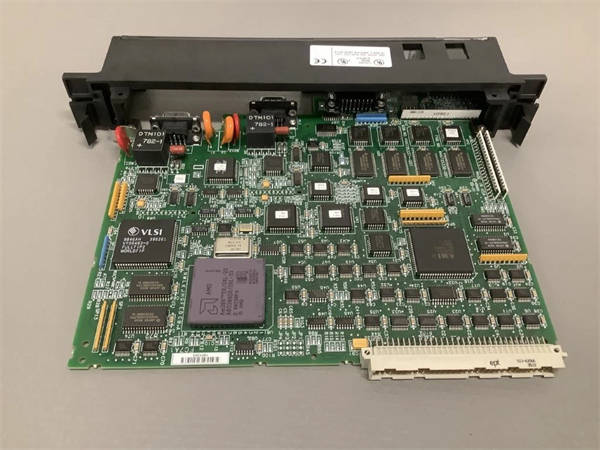

GE IC697BEM741

Product Introduction

The GE IC697BEM741 is a critical backplane expansion module designed exclusively for GE’s Series 90-70 PLC platform, engineered to address the limitation of fixed slot counts in main racks by enabling connection to remote racks. As a core expansion component, it acts as a bridge between the Series 90-70 main rack (equipped with a compatible CPU like the IC697CPU771) and remote racks, allowing users to add more I/O modules, communication modules, or specialty modules beyond the main rack’s slot capacity.

By leveraging a proprietary backplane expansion bus, the GE IC697BEM741 ensures seamless data transmission between the main rack and remote racks—with minimal latency that is critical for real-time control applications. Its design maintains the ruggedness and reliability of the Series 90-70 line, making it suitable for industrial environments where space constraints or distributed equipment layouts require splitting the PLC system across multiple racks. Whether in large manufacturing plants or complex process control facilities, the GE IC697BEM741 provides a flexible, cost-effective way to scale automation systems without replacing existing main rack components.

Core Advantages and Technical Highlights

Flexible rack expansion: The GE IC697BEM741 supports up to 3 remote racks per main rack, each of which can be 5-slot, 10-slot, 15-slot, or 20-slot Series 90-70 racks. This flexibility allows users to tailor the system size to their specific needs—for example, adding a 5-slot remote rack near a production line to reduce wiring for local sensors, or a 20-slot rack for centralized expansion of I/O capacity. Unlike fixed-expansion solutions, this modular approach avoids overinvesting in unused slots.

Long-distance expansion capability: With standard GE expansion cables, the GE IC697BEM741 enables expansion up to 30 meters, and with optional fiber-optic adapters, this distance extends to 100 meters. This is particularly valuable in large facilities (e.g., automotive factories, oil refineries) where equipment is spread out across long distances. The fiber-optic option also provides immunity to electromagnetic interference (EMI), a common issue in industrial environments with high-voltage machinery or variable-frequency drives.

Seamless backplane integration: The GE IC697BEM741 integrates directly into the Series 90-70 main rack’s slot, drawing power from the main rack’s backplane and communicating with the CPU via the platform’s native backplane bus. There is no need for additional power supplies or complex configuration for basic operation—users simply install the module, connect the expansion cable to the remote rack, and configure the system via GE’s programming software (e.g., Proficy Machine Edition). This seamless integration ensures that remote rack modules are recognized by the CPU as if they were part of the main rack, simplifying programming and troubleshooting.

Robust diagnostic and fault tolerance: Equipped with LED indicators for power (green), backplane communication (steady green for normal, blinking for data transfer), and expansion link health (red for fault), the GE IC697BEM741 allows maintenance teams to quickly identify issues such as a broken expansion cable or a failed remote rack power supply. In addition, the module supports fault isolation—if a remote rack experiences a failure, the GE IC697BEM741 prevents the fault from propagating to the main rack, ensuring that the rest of the system continues to operate. This fault tolerance is critical for mission-critical applications like power generation or chemical processing, where unplanned downtime is costly.

Typical Application Scenarios

The GE IC697BEM741 excels in industrial environments where distributed equipment or space constraints require splitting the Series 90-70 PLC system across multiple racks. In automotive manufacturing, for example, a main rack with a IC697CPU771 CPU may be installed in a central control room, while the GE IC697BEM741 in the main rack connects to three remote 10-slot racks—one near each assembly line section. Each remote rack houses digital I/O modules (e.g., GE IC697MDL240) to connect local sensors and actuators, reducing the length of wiring and minimizing EMI interference. This setup allows the central CPU to monitor and control all assembly line sections in real time, improving operational efficiency.

In oil and gas refineries, the GE IC697BEM741 is used to expand the PLC system across different process units (e.g., distillation, cracking). The main rack is located in a safe control room, while remote racks connected via the GE IC697BEM741 are installed near the process units—some up to 100 meters away using fiber-optic adapters. These remote racks house analog I/O modules (e.g., GE IC697MDL655) to measure temperature, pressure, and flow rates of hazardous fluids. The long-distance expansion capability of the GE IC697BEM741 eliminates the need to place the main rack in hazardous areas, ensuring compliance with safety standards and protecting personnel.

For water treatment plants with distributed tanks and pumps, the GE IC697BEM741 enables the Series 90-70 PLC system to cover large areas. A main 15-slot rack in the plant’s control center uses the GE IC697BEM741 to connect to two 5-slot remote racks—one near the intake pumps and another near the filtration tanks. Each remote rack has digital output modules (e.g., GE IC697MDL340) to control pump motors and valve actuators. The GE IC697BEM741 ensures that data from remote sensors (e.g., water level, turbidity) is transmitted to the central CPU without latency, allowing for precise control of treatment processes and reducing water waste.

Related Model Recommendations

GE IC697CPU771: Series 90-70 main CPU module required for use with the GE IC697BEM741. Acts as the “brain” of the system, managing communication between the main rack and remote racks connected via the expansion module. Ideal for medium to large-scale control applications.

GE IC697RACK10: 10-slot remote rack compatible with the GE IC697BEM741. Provides 10 slots for I/O or communication modules, used to expand the system’s capacity. Suitable for applications requiring moderate expansion beyond the main rack.

GE IC697PWR711: Power supply module for Series 90-70 remote racks paired with the GE IC697BEM741. Provides 5 V DC and 24 V DC power to remote rack modules, ensuring stable operation (remote racks require separate power supplies).

GE IC697CSE784C: Industrial Ethernet communication module that works with the GE IC697BEM741 in expanded systems. Installed in either the main or remote rack, it enables Ethernet communication with HMIs or SCADA systems, complementing the expansion module’s backplane connectivity.

GE IC697MDL240: 32-channel digital input module for remote racks connected via the GE IC697BEM741. Used to connect sensors, limit switches, and other discrete input devices, expanding the system’s ability to monitor equipment status.

GE IC697BEM742: High-speed backplane expansion module, an upgrade from the GE IC697BEM741. Offers faster data transmission (up to 2 Mbps vs. 1 Mbps for the IC697BEM741) and supports up to 5 remote racks, suitable for high-performance applications.

GE IC697ACC702: Fiber-optic adapter for the GE IC697BEM741. Extends the expansion distance from 30 meters to 100 meters and provides EMI immunity, ideal for facilities with long distances or high EMI environments.

GE IC697MDL655: 8-channel analog input module for remote racks using the GE IC697BEM741. Converts analog signals (e.g., from temperature or pressure sensors) to digital data for the CPU, critical for process control applications.

GE IC697RACK20: 20-slot remote rack compatible with the GE IC697BEM741. Offers maximum slot capacity for remote expansion, suitable for large-scale applications requiring dozens of I/O or communication modules.

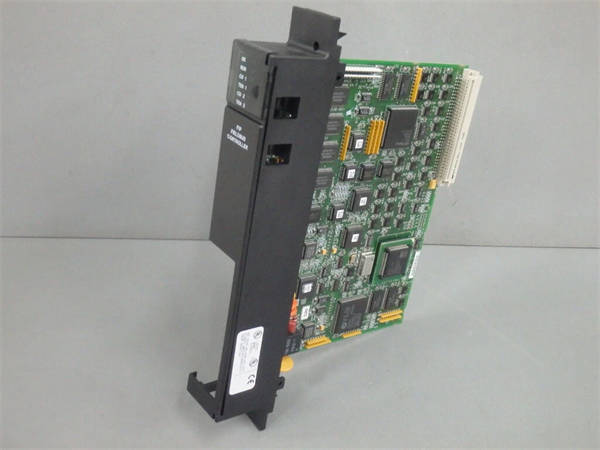

GE IC697BEM741

Installation, Commissioning and Maintenance Instructions

Installation preparation: Before installing the GE IC697BEM741, power off the Series 90-70 main rack and wear an anti-static wristband to prevent electrostatic damage. Ensure the main rack has an available slot (preferably near the CPU module for optimal communication). Gather tools including a screwdriver (to secure the module to the rack), GE-approved expansion cables (length matching the distance to remote racks), and a torque wrench (to tighten rack screws to 4.5 N·m). Verify that the remote rack (e.g., GE IC697RACK10) and its power supply (e.g., GE IC697PWR711) are compatible with the GE IC697BEM741. Check the installation environment: ensure the main and remote racks are in areas with temperatures between 0°C to 60°C and humidity between 5%-95% non-condensing, away from direct sunlight or corrosive gases.

Maintenance suggestions: For daily maintenance of the GE IC697BEM741, inspect the LED indicators—steady green for power, steady or blinking green for backplane communication, and no red light for expansion link health indicate normal operation. If the red fault light is on, check the expansion cable (replace if damaged) and verify the remote rack’s power supply. Clean the module’s backplane connector monthly with a dry, lint-free cloth to remove dust, which can cause communication issues. Every 6 months, test the expansion link by measuring signal strength with a GE-approved tester to ensure it meets the 1 Mbps transmission rate. For firmware updates, use GE’s Proficy Machine Edition software and ensure the GE IC697BEM741’s firmware is compatible with the main CPU’s firmware—never update during production. Keep a spare GE IC697BEM741 on hand for critical systems to minimize downtime if replacement is needed.

Service and Guarantee Commitment

The GE IC697BEM741 comes with a 2-year standard manufacturer’s warranty from GE Industrial Solutions, covering defects in materials and workmanship under normal industrial use. GE guarantees that the GE IC697BEM741 will perform in accordance with published technical specifications during the warranty period; if the module fails to meet these standards, GE will repair or replace it free of charge, including return shipping for qualifying claims.

Beyond the warranty, GE provides comprehensive technical support for the GE IC697BEM741, including 24/7 access to certified engineers via phone and email, who can assist with installation troubleshooting, configuration, or fault diagnosis. Online resources include detailed user manuals, installation guides, and firmware updates available on GE’s industrial support portal. For customers with critical operations (e.g., power plants, chemical refineries), GE offers customizable extended service contracts that include on-site maintenance, priority technical support, and expedited replacement of faulty modules—ensuring minimal downtime. With decades of expertise in industrial automation, GE stands behind the GE IC697BEM741, delivering a reliable expansion solution backed by global service capabilities.
