Description
Hard-Numbers: Technical Specifications
- Input Voltage Range: 85-264VAC, single-phase, 47-63Hz (auto-sensing)
- Input Current: 3.5A @ 120VAC, 1.8A @ 240VAC full load
- Output Voltage: +5VDC (regulated)
- Output Current: 40A max continuous @ 5VDC
- Auxiliary Output: +24VDC (isolated, unregulated)
- Auxiliary Current: 1A max @ 24VDC
- Power Rating: 200W total (5V rail) + 24W auxiliary = 224W maximum
- Efficiency: 85% typical at full load
- Hold-up Time: 20ms minimum at full load
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Overcurrent Protection: Automatic current limiting, foldback limiting on severe faults
- Overvoltage Protection: Crowbar circuit trips at 5.8VDC
- LED Indicators: PWR (OK), FAULT, OVERTEMP
- Cooling: Forced air convection (requires backplane cooling fan)
- Module Slot: RX3i dedicated power supply slot (leftmost position only)
- Isolation: 2500V RMS input-to-output isolation

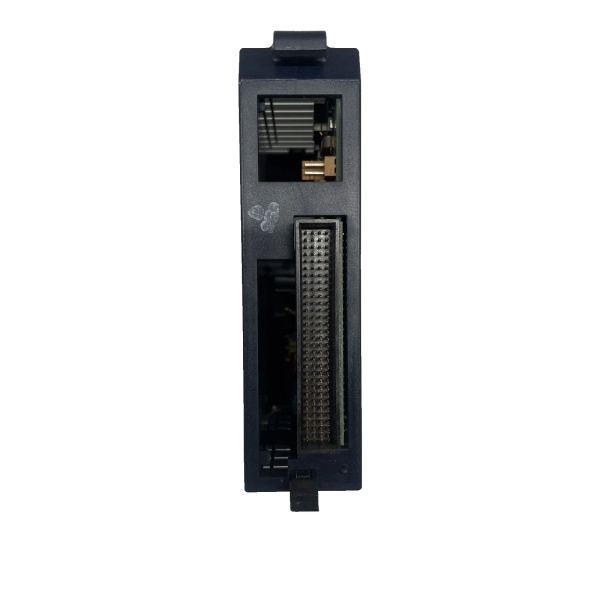

GE IC695PSD140B
The Real-World Problem It Solves
Your PLC rack is only as good as its power source. The IC695PSD140B delivers clean, regulated power to the entire RX3i rack with enough headroom for high-density I/O configurations. When the plant voltage sags during motor starts or utility brownouts, this supply keeps the controller running without missing a scan.
Where you’ll typically find it:
- Main control cabinets in water treatment plants powering full RX3i racks with multiple I/O modules
- Steel mill automation rooms where voltage fluctuations are common from large arc furnaces
- Remote pump stations where single-phase 240VAC is the only available power
Bottom line: It’s the heart of your control system—keep it healthy, and your rack stays alive.
Hardware Architecture & Under-the-Hood Logic
This is a switch-mode power supply (SMPS) that converts raw AC line voltage into regulated 5VDC logic power for the backplane. The input stage includes an EMI filter, bridge rectifier, and bulk capacitor bank to smooth the rectified DC. A high-frequency PWM (Pulse Width Modulation) controller drives the switching MOSFETs at 50-100kHz, stepping down the voltage through a ferrite core transformer. The secondary side uses fast-recovery diodes and LC filtering to produce clean 5VDC output. The module monitors output voltage and current continuously, with crowbar protection against overvoltage and foldback limiting on overcurrent conditions. The 24VDC auxiliary output is a separate winding on the main transformer, unregulated but isolated.
Internal signal flow:
- AC input (85-264V) passes through EMI filter and line fuse
- Bridge rectifier converts to DC, bulk capacitor banks smooth ripple
- PWM controller senses input voltage and adjusts duty cycle for auto-ranging
- Switching MOSFETs chop DC at high frequency into transformer primary
- Transformer steps down voltage, secondary winding feeds rectifier diodes
- LC filter network smooths output to regulated +5VDC
- Voltage feedback loop samples output and adjusts PWM to maintain regulation
- Current sense resistor monitors load; protection circuits trigger on fault
- Auxiliary 24VDC winding provides isolated output for field devices
- Crowbar circuit fires SCR if output exceeds 5.8V, protecting backplane modules
- LED indicators reflect health of each protection stage and output status

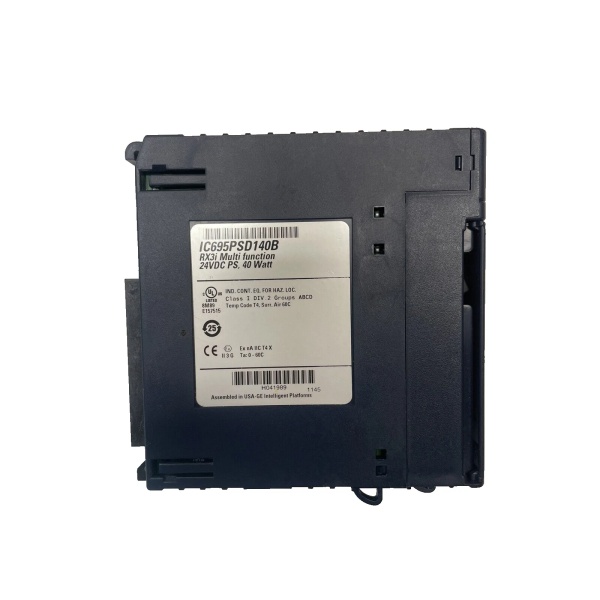

GE IC695PSD140B
Field Service Pitfalls: What Rookies Get Wrong
Overloading the 5V rail causes random module faultsI’ve seen racks with 30+ I/O modules running on a single 40A supply. Technicians add more modules without calculating current draw, and the supply hits current limit. The voltage sags, modules brown out, and you get random faults that are impossible to diagnose.
- Field Rule: Sum the backplane current requirements of all modules (each module’s spec sheet lists 5V current draw). Leave 20% headroom for inrush currents and temperature derating. If you’re over 32A continuous, add a second power supply and split the backplane with a power cable splitter.
Ignoring cooling requirements causes thermal shutdownThe IC695PSD140B generates significant heat at 40% efficiency—about 50W of waste heat. Racking this module in a sealed cabinet with no ventilation will trip the overtemp protection within hours.
- Field Rule: Ensure the RX3i backplane cooling fan is operational. Check fan rotation and clean dust buildup monthly. Cabinet ambient temperature must stay below 40°C for full output current rating. Derate output current by 2% per °C above 40°C.
Connecting 24V field devices to the auxiliary outputThe 24VDC output is rated for only 1A and is unregulated—it sags under load. I’ve seen technicians try to power multiple solenoid valves from this terminal, triggering the overcurrent protection and crashing the supply.
- Field Rule: Use the 24V auxiliary output only for small loads like logic inputs or indicating lamps (under 1A). For field devices, use a dedicated 24V power supply rated for your load requirements. Never power inductive loads directly from this module’s 24V output.
Wiring input power without considering line transientsIndustrial environments are hostile to power supplies. I’ve seen multiple IC695PSD140B units fail after lightning strikes or nearby motor starts caused massive voltage spikes on the AC line.
- Field Rule: Install a surge suppressor or TVSS (Transient Voltage Surge Suppressor) upstream of the PLC cabinet. Use metal-clad AC (MC) cable for input wiring, grounded at both ends. Keep AC wiring separated from low-voltage DC wiring in the cabinet—run them in separate conduit trays.
Missing the ground bond causes erratic behaviorThis supply is designed with a grounded chassis for noise suppression and safety. I’ve seen technicians leave the ground floating or tie it to a questionable building ground, resulting in intermittent faults and ground loops.
- Field Rule: Bond the module’s chassis ground terminal to a solid earth ground. Use a green ground conductor sized per NEC (at least #12 AWG for most installations). Verify continuity to building steel with less than 5 ohms resistance. Never float the ground or rely on conduit alone for grounding.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
