Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | GE IC695CHS016 |
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Product category | Universal Backplane |
| Number of Slots | 16 |
| Bus Type | Dual-bus (PCI and Serial) |
| Operating Voltage | +24 VDC |
| Internal Power Usage | 600 mA @ 3.3 VDC, 240 mA @ 5 VDC |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions (H x W x D) | 141.5 mm × 601.98 mm × 147.32 mm (5.57 in × 23.7 in × 5.8 in) |
| Weight | 2.06 kg |
| Certifications | CE, UL, CSA |
| Mounting Orientation | Horizontal |
| Enclosure Rating | IP20, NEMA/UL Type 1 |
| Hot Swap Support | Yes |

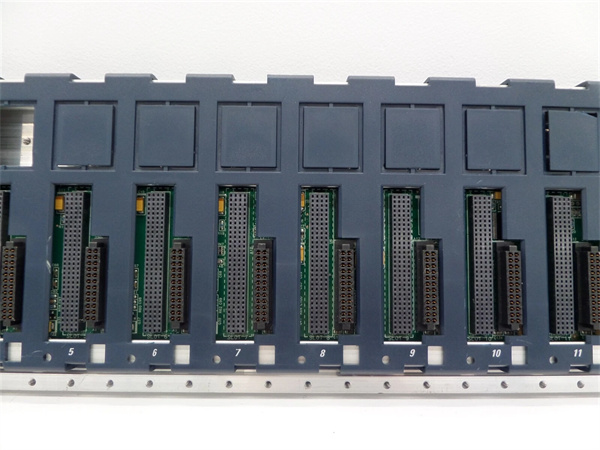

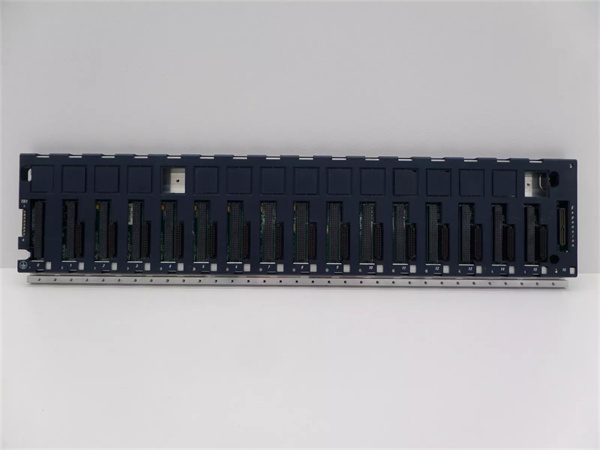

IC695CHS016
Product Introduction
The GE IC695CHS016 is a 16-slot universal backplane from the RX3i PACSystems Series. It supports both PCI-based (IC695) and serial (IC694) I/O and option modules, enabling flexibility in configuring automation systems. The dual-bus architecture of the backplane ensures compatibility with various high-speed and serial communication modules.
Core Advantages and Technical Highlights
High Flexibility and Compatibility
The GE IC695CHS016 supports both PCI and serial bus modules, making it highly versatile for different types of I/O and option modules. This dual-bus architecture ensures compatibility with a wide range of modules, including those from the Series 90-30 PLC series.
Robust Design for Industrial Use
Constructed with high-quality materials, the backplane is designed to withstand harsh industrial conditions. It operates reliably within a temperature range of 0°C to 60°C and features a protection rating of IP20, ensuring durability and longevity.
Easy System Expansion
The backplane supports hot-swapping of modules, which significantly reduces downtime and simplifies maintenance. This feature makes it ideal for systems that require high availability and frequent updates.
Typical Application Scenarios
The GE IC695CHS016 is widely used in various industrial applications, including:
-
Manufacturing: Controlling production lines and robotic systems.
-
Power Generation: Real-time monitoring and control of turbines and generating units.
-
Chemical Processing: Monitoring and controlling hazardous processes in chemical plants.
-
Water Treatment: Managing water treatment processes and monitoring environmental parameters.

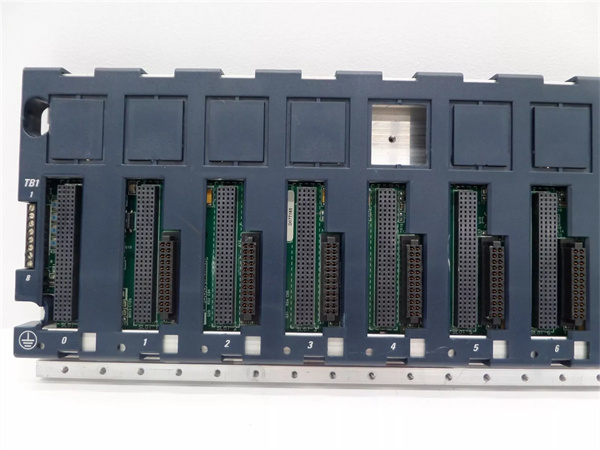

IC695CHS016
Related Model Recommendations
-
GE IC695CHS012: A 12-slot universal backplane for smaller systems.
-
GE IC695CHS007: A 7-slot high-speed backplane for compact applications.
-
GE IC694CHS398: A 10-slot serial expansion base for additional I/O modules.
-
GE IC693CHS399: A 10-slot serial remote base for extended configurations.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the GE IC695CHS016, ensure the environment is free from excessive dust and moisture. Verify that the power supply matches the backplane’s requirements (+24 VDC) and that the operating temperature range (0°C to 60°C) is suitable for the installation location.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the GE IC695CHS016. Perform routine inspections to check for loose connections or signs of wear. Clean the backplane periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
Service and Guarantee Commitment
The GE IC695CHS016 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Emerson Automation is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
