GE IC694MDL754 | 32-Point ESCP Output Module for RX3i – Field Service Notes

  • Model: IC694MDL754
  • Alt. P/N: IC694MDL754A, IC694MDL754-BC, IC694MDL754-CC, IC694MDL754-CD, IC694MDL754-DD (firmware revisions)
  • Product Series: PACSystems RX3i (GE Fanuc / Emerson Automation)
  • Hardware Type: 32-Point DC Sourcing Output Module with Electronic Short Circuit Protection
  • Key Feature: Per-point ESCP with auto-recovery—trips at ~5A, clears automatically when fault removed
  • Primary Field Use: High-density discrete output in fault-critical applications (valve manifolds, process skids) where a single shorted load must not take down the entire module
Get a Quote
In Stock
Manufacturer:
Part number: GE IC694MDL754
Our extensive catalogue, including : GE IC694MDL754 , is available now for dispatch to the worldwide. Brand:
The listed price is not final; the actual selling price is negotiable based on current market conditions.

Description

Hard-Numbers: Technical Specifications

  • Output Points: 32 discrete outputs (2 isolated groups of 16)
  • Rated Voltage: 12/24 VDC nominal
  • Output Voltage Range: 10.2 to 30 VDC
  • Output Current: 0.75 A per point
  • Overcurrent Trip: 5 A typical per point (ESCP)
  • Inrush Current: 3 A for 10 ms without trip
  • Response Time: 0.5 ms ON, 0.5 ms OFF
  • Backplane Power: 300 mA maximum from 5V bus
  • External Power Supply: +12 to +30 VDC required, 72-132 mA per group (gate drive)
  • Isolation: 250 VAC continuous / 1500 VAC for 1 minute (field to backplane and group to group)
  • Operating Temperature: 0°C to 60°C (derating applies above 42°C at 30VDC)
  • Terminal Block: IC694TBB032 (box) or IC694TBS032 (spring), sold separately
  • CPU Requirement: RX3i CPU firmware 2.90 or greater; not compatible with Series 90-30

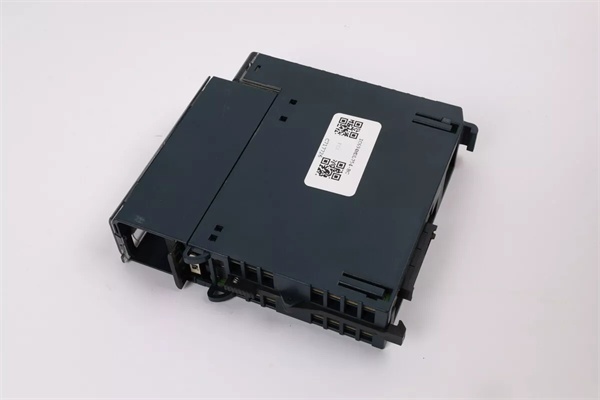

GE IC694MDL754

GE IC694MDL754

The Real-World Problem It Solves

A single shorted solenoid shouldn’t force you to pull 32 wires to find the fault. Conventional output modules trip a group or blow a fuse when one output shorts—then you’re stuck with a multi-hour troubleshooting session while the line is down.

Where you’ll typically find it:

  • Pneumatic valve manifolds with 20+ solenoids in tight enclosures (vibration-induced wire chafe)
  • Process skids where field wiring runs near fluid lines (maintenance damage)
  • Packaging machinery with frequent tooling changes (miswired replacement components)

Bottom line: Per-point ESCP isolates the fault to a single output, reports it to the CPU, and auto-recovers when you fix the wiring. No fuse replacement, no module swap, no group-wide downtime.



Hardware Architecture & Under-the-Hood Logic

This is a sourcing (positive logic) output module with per-point current monitoring. Unlike dumb output cards, it has active protection circuitry on every channel and reports 48 bits of diagnostic data back to the CPU.

Signal flow and protection logic:

  1. CPU writes 32 output bits to the module via backplane (PCI bus at 27 MHz)
  2. Optocouplers isolate field wiring from backplane logic
  3. Each output drives through a MOSFET with integrated current sense and thermal sensor
  4. If current exceeds ~5A or temperature limits, the point trips within microseconds
  5. Fault bit is set in input data (%I bits 17-48), LED turns yellow
  6. Other 31 outputs continue operating normally
  7. When fault clears (short removed, temperature drops), auto-recovery logic restores the point to its previous state

Output defaults behavior (DIP switch on module back):

  • Force Off (default): Outputs go to zero within 400ms on CPU communication loss
  • Hold Last State: Outputs maintain last commanded state as long as field power is present

The DIP setting must match software configuration—mismatch triggers a fault.

GE IC694MDL754

GE IC694MDL754

Field Service Pitfalls: What Rookies Get Wrong

Yellow LED = Fault on THAT Point, Not a Broken Module

The LED turns yellow when ESCP trips. This means overcurrent, short circuit, or overtemperature—not a failed module. I’ve seen techs replace perfectly good modules because they didn’t check the load.

  • Field Rule: Disconnect the load, cycle power. If the LED goes green, the module is fine—replace the solenoid or fix the wiring.

Terminal Block Not Included in Box

The MDL754 ships without the terminal block. It uses IC694TBB032 (screw terminal) or IC694TBS032 (spring clamp), ordered separately. Technicians assume it’s included and end up stuck on startup day.

  • Field Rule: Add the terminal block to your purchase order. Stock a spare—field wiring damage usually requires terminal block replacement, not module replacement.

Thermal Derating at 30VDC in Hot Cabinets

The module is rated for 30VDC, but at temperatures above 42°C, you can’t run all 32 outputs. At 50°C ambient with 30VDC supply, you’re limited to 12 active outputs.

  • Quick Fix: If your cabinet runs hot, either drop to 24VDC supply (no derating required) or spread outputs across multiple modules and enforce active-output limits in your design.

DIP Switch and Software Configuration Mismatch

The Hold Last State DIP switch on the module back must match the configuration in Proficy Machine Edition. If they don’t align, the module reports a “DIP switch configuration mismatch” fault.

  • Field Rule: Before pulling a failed module, photograph or note the DIP position. After installing the replacement, verify software matches. Terminal block LED blinks on mismatch—use it as a visual commissioning check.



Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
