Description
Hard-Numbers: Technical Specifications
- Rated Voltage: 12-24 VDC
- Output Voltage Range: 10.2 to 28.8 VDC (+20%, -15%)
- Outputs per Module: 32 points (4 isolated groups of 8)
- Output Current: 0.5A per point; 4A maximum per group; 3A maximum per common pin
- Response Time: 0.5ms maximum (on and off)
- Inrush Current: 5.4A for 10ms
- On-State Voltage Drop: 0.3VDC maximum
- Off-State Leakage: 0.1mA maximum
- Isolation Rating: 250VAC continuous / 1500VAC for 1 minute (field to backplane); 50VAC continuous / 500VAC for 1 minute (group-to-group)
- Power Consumption: 260mA from 5V backplane bus (all outputs ON); plus 9.6-16.5mA per group from user supply
- Operating Temperature: 0°C to +60°C (+32°F to +140°F)

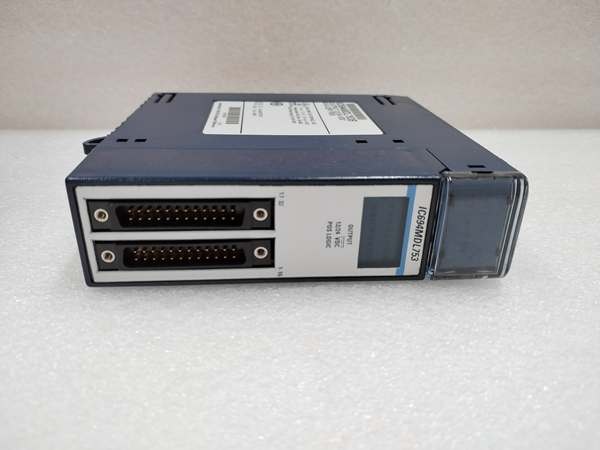

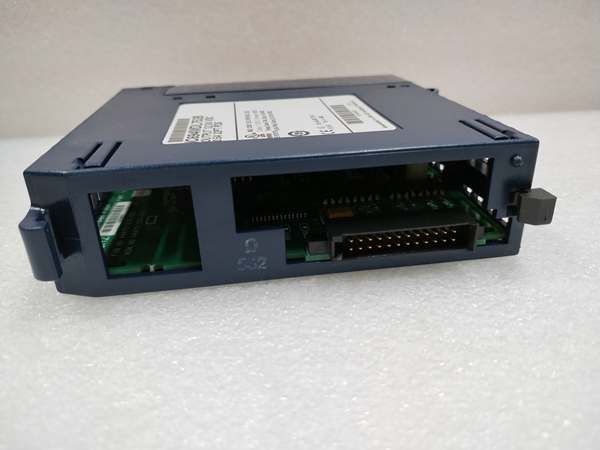

- Connector Type: Two male 24-pin Fujitsu FCN-365P024-AU connectors
- Compatible Cables: IC694CBL327, IC694CBL328

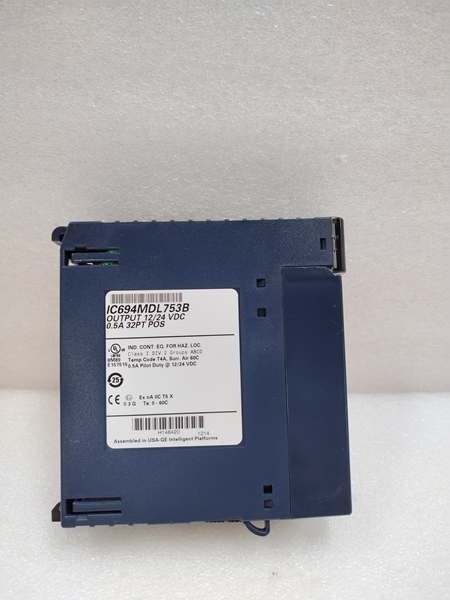

GE IC694MDL753
The Real-World Problem It Solves
Panel space is money. When you’ve got 32 indicator lamps, 16 solenoid valves, and 8 relay coils crammed into a 36-inch-wide enclosure, you don’t have room for four 16-point output cards. The IC694MDL753 stuffs 32 outputs into a single slot – double the density of the MDL740/741 family. The trade-off is current capacity: 0.5A per point instead of 1A, but most discrete loads (pilot lights, small solenoids, relay coils) don’t need more than 500mA anyway.
Where you’ll typically find it:
- Packaging machinery with dozens of pneumatic solenoid valves and indicator towers
- Conveyor systems with multiple divert gates and lane indicators
- Process skids where real estate in the control panel is at a premium
Bottom line: It’s the density king for discrete DC outputs when you need lots of points and moderate current.
Hardware Architecture & Under-the-Hood Logic
The IC694MDL753 is a passive MOSFET switch array with no onboard intelligence. It’s the positive logic (sourcing) counterpart to the MDL752. When an output is commanded ON, the MOSFET turns ON and sources current from the user-supplied DC+ bus through the output terminal to the load. Current flows OUT of the module.
Signal flow:
- CPU writes to output image table (%Q memory) via backplane
- Optical isolators translate backplane logic to field-side drive circuits
- When commanded ON, the MOSFET turns ON and connects the output terminal to the user DC+ supply
- Current flows: DC+ input → MOSFET switch → Output terminal → Load → DC- (common)
- 32 individual LEDs indicate output status (ON = LED lit = output sourcing voltage)
Power architecture:
- Backplane 5V: Powers communication interface and optical isolators (260mA draw)
- User DC Supply (12-24V): Powers the load current through the output switches – the module does NOT supply field power, it only switches it
- Each group has two VIN pins rated at 3A each – for high-current groups (3-4A), connect both VIN pins
Group isolation:
- Four groups of eight outputs, each with independent VIN and COM pins
- Each group can be powered from a different voltage source (e.g., one group at 12V, three groups at 24V)
- Group-to-group isolation is only 50VAC – keep all groups on the same ground reference
GE IC694MDL753
Field Service Pitfalls: What Rookies Get Wrong
Positive Logic Wiring – Load Goes to DC-
This is a sourcing (positive logic) module. Current flows OUT of the output terminal. Your loads connect between the output terminal and DC- (negative/ground). I’ve found techs wiring loads between DC+ and the output terminal – that’s for sinking modules, and it won’t work here.
- Field Rule: Draw the current path on paper: VIN → Output terminal (when ON) → Load → COM. If current has to flow INTO the output terminal to reach the load, you’re wired wrong. Current must flow OUT.
Group Current Limits – 4A, Not 8A
0.5A per point × 8 points = 4A per group, right? Yes, but that’s the maximum at moderate temperatures. In a hot cabinet (50°C+), derate that. I’ve seen designs with all 8 points in a group driving 0.5A each (4A total) in 55°C ambient – the module runs hot and eventually fails.
- Quick Fix: If you’re loading a group near 4A, check the cabinet temperature. Above 50°C, leave at least 2 points unused per group to keep the module within thermal limits.
Dual VIN Pins – Use Both for High Current
Each group has two VIN pins (VIN and a second pin), each rated for 3A. The common pins also come in pairs. If a group is pulling 3-4A total, you must connect both VIN pins and both COM pins – otherwise you’ll overheat the connector contact.
- Field Rule: If group current exceeds 3A, run a second wire from the power supply to the second VIN pin, and a second wire from the second COM pin to DC-. Don’t rely on a single pin to carry the full group current.
Fujitsu Connectors – Stock the Right Cables
This module uses Fujitsu FCN-365P024-AU 24-pin connectors, not screw terminals. You need pre-wired cables (IC694CBL327/IC694CBL328) or custom cables with the correct female connector. I’ve been on-site where the maintenance crew didn’t have the cables and tried to bodge connections with individual wires – loose connections and intermittent faults followed.
- Quick Fix: Keep IC694CBL327 and IC694CBL328 cables in stock. If building custom cables, order the proper Fujitsu FCN-365C024-AU female connectors. Don’t try to improvise.
No Fault Diagnostics
This module reports no faults to the CPU. If a MOSFET fails shorted, the output stays ON and the LED stays lit – the PLC thinks everything is fine. If a MOSFET fails open, the LED won’t light but there’s no alarm. For critical outputs where you need fault detection, upgrade to the IC694MDL754 (with ESCP protection and diagnostics).
- Field Rule: For non-critical loads (pilot lights, non-safety solenoids), MDL753 is fine. For safety-critical or high-reliability applications, use MDL754 or add external feedback monitoring.
