Description
Hard-Numbers: Technical Specifications
- Input Voltage: 120/240 VAC or 125 VDC nominal
- AC Input Range: 85-264 VAC (50/60Hz)
- DC Input Range: 100-300 VDC
- Total Output Capacity: 30W maximum (same as PWR321)
- +5VDC Output: 5.0-5.2VDC (5.1VDC nominal), 15W max
- +24VDC Relay Output: 24-28VDC, 15W max
- +24VDC Isolated Output: 21.5-28VDC, 20W max
- +5VDC Backplane Current: Approximately 3A maximum (same as PWR321)
- Input Power: 90VA (AC) / 50W (DC) at full load
- Inrush Current: 4A peak, 250ms maximum
- Holdup Time: 20ms minimum
- Overvoltage Protection: 6.4-7VDC on +5V rail
- Overcurrent Protection: 4A maximum on +5V rail
- Communication: RS-485 serial port (9-pin sub-D connector)
- Operating Temperature: 0-60°C
- Mounting Location: Leftmost slot of baseplate only
- Internal Fuse: GE catalog 44A724627-109 (field-replaceable)
- Certifications: CE compliant, cULus listed, Class I Division 2 rated
- Physical Size: Reduced height/depth vs standard PWR321 (check specific dimensions for installation clearance)

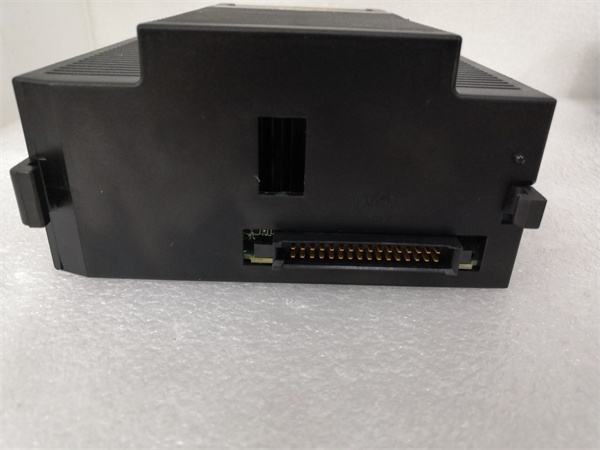

GE IC693PWR330
The Real-World Problem It Solves
The PWR330 solves the cabinet space crunch in retrofits where you need full 30W PWR321 functionality but physical enclosure space is tight—maybe you’re retrofitting into existing panels, adding PLCs to machinery consoles, or working with high-density baseplates that require reduced-profile components. It delivers identical electrical performance to PWR321 (same input ranges, same output capacities, same protection circuits) but in a physically smaller package that fits where standard PWR321 won’t.
Where you’ll typically find it:
- Machine tool control consoles where space behind the backplane is limited by mechanical structures
- Retrofit upgrades to legacy equipment where cabinet dimensions can’t be modified
- Mobile equipment panels (construction machinery, agricultural equipment) where every cubic inch matters
Bottom line: PWR330 is electrically identical to but physically smaller—same power delivery, same reliability, fits where standard supplies don’t.
Hardware Architecture & Under-the-Hood Logic
The PWR330 shares identical electrical architecture to —AC/DC input, EMI filtering, bridge rectification, high-frequency switching, three isolated output rails. The difference is in mechanical design: more compact component layout, possibly surface-mount components in places vs through-hole on , optimized heatsink design to handle 30W thermal load in reduced volume. Electrically, you’re looking at the same beast—same protection circuits, same RS-485 diagnostics, same holdup time. The engineering challenge was squeezing performance into smaller space without overheating or sacrificing reliability.
Internal signal flow and protection logic:
- Input stage: AC/DC enters through EMI filter and bridge rectifier, feeding bulk capacitor for 20ms holdup time. Component layout is tighter, but electrical function matches exactly.
- Primary switching: High-frequency DC-DC converter generates intermediate bus voltage. Thermal management is more critical in compact design—PWR330 likely uses higher-efficiency components or optimized heatsink coupling to handle 30W in reduced volume.
- Output isolation: Three separate secondary windings create isolated rails: +5VDC for backplane, +24VDC relay for output modules, +24VDC isolated for field devices. Each rail has its own rectifier, filter capacitor, and linear regulator stage.
- Protection circuitry: Current limiters on each rail sense output current—when you hit 110% of rated load, PWM throttles back. If short circuit occurs, protection crowbar fires, shutting down that rail instantly while leaving other rails alive.
- Diagnostic monitoring: Voltage dividers feed into supervisory circuit that drives front-panel LEDs and RS-485 status registers. Same threshold logic as —no electrical differences in diagnostic behavior.
GE IC693PWR330
Field Service Pitfalls: What Rookies Get Wrong
Terminal Block Count ReductionPWR330 uses 5-terminal blocks vs 6-terminal blocks on later revisions. Techs swap a PWR321W/U/Y for PWR330 without realizing the terminal arrangement is different. Fewer screws means fewer connection points—if you’re retrofitting, your existing wiring might need to be consolidated or you’ll find yourself with orphaned wires.
Field Rule: Compare terminal block screw count before removing the old module. will have 5 screws—verify your existing wiring diagram maps to the reduced block layout. The terminal block is removable—swap it if you’re retrofitting and want to preserve wire connections, but prepare for possible wire consolidation.
Thermal Derating in Confined Spaces is designed for reduced space, but that doesn’t mean it eliminates thermal stress. Techs jam into tight compartments with zero airflow and expect it to handle 30W continuously like a in a well-ventilated cabinet. The compact form factor reduces surface area for heat dissipation—thermal management becomes more critical, not less.
Quick Fix: Calculate clearance around before installation. You need at least 25mm (1 inch) of clearance above and below for convection cooling. If you’re installing in a tight machine console, add forced ventilation or derate your load. Don’t assume compact design means better thermal performance—it means the same performance in less space, which requires better airflow.
Fuse Replacement Confusion uses the same internal fuse catalog number as (44A724627-109), but techs get confused by the different physical layout and struggle to locate the fuse holder in the compact design. The fuse is there, but access might be tighter due to reduced component spacing.
Field Rule: Remove the module from the baseplate for fuse replacement—don’t try to access the fuse in situ if clearance is tight. The compact design means less working room around the fuse holder. Work on a bench where you can see clearly, and verify the fuse catalog number printed on the fuse end cap matches GE 44A724627-109.
Backplane Current MisunderstandingTechs assume ‘s compact design means reduced current capacity, then load it beyond 30W or 3A +5VDC because “it’s smaller, so it must handle less.” Electrically, it’s identical to —same 30W total capacity, same 3A +5VDC limit. The compact form factor is physical only, not electrical derating.
Quick Fix: Treat exactly like for load calculations. Don’t derate it just because it’s smaller—the electrical ratings are identical. If your installation was marginal at 25W load, won’t magically handle 30W comfortably. Calculate your load using specs—same numbers apply.
Clearance for Connector Access‘s compact design might position the RS-485 serial connector closer to adjacent modules or cabinet edges. Techs install and realize they can’t plug in the programming cable or diagnostic cable without removing neighboring modules. The connector exists, but physical access is tighter due to reduced form factor.
Field Rule: Check connector clearance before final installation. Verify you can plug in your RS-485 cables without hitting adjacent modules or cabinet structures. If access is tight, leave one empty slot next to or reroute your cables. Don’t discover access problems after the cabinet is buttoned up.
Heat Sink Obstruction in Tight Cabinets likely uses an optimized heatsink design to manage 30W thermal load in reduced volume. Techs install adjacent to other heat-generating modules or directly behind cabinet doors without clearance, obstructing convection airflow. The heatsink needs free air movement—block it and the supply will overheat.
Quick Fix: Maintain at least 25mm clearance above the heatsink fins. If you’re installing in a machine console, ensure ventilation slots or cutouts align with the heatsink area. Don’t block airflow with cable bundles, terminal blocks, or other modules. The compact design relies on proper airflow more than larger supplies—obstruct it and thermal problems will surface quickly.
Model Number Confusion During Parts OrderingTechs order when they need because “it’s the same 30W supply,” then receive the wrong physical size and can’t install it. The electrical specs match, but the form factor doesn’t fit the space-constrained application.
Field Rule: Verify the exact model number on your existing module before ordering replacement. and are not interchangeable physically—same power, different size. If your cabinet space requires , order specifically. Don’t assume “30W 90-30 supply” is a generic part number—the physical dimensions matter.
