Description
System Architecture & Operational Principle
The IC693PWR321U occupies the critical leftmost slot in Series 90-30 baseplates, serving as the backbone power distribution node (Purdue Model Level 2). It accepts upstream AC or DC line power (85-264VAC or 100-300VDC) and converts it to three isolated DC outputs: +5VDC (15W) for CPU and backplane logic, +24VDC Relay (15W) for non-isolated I/O, and +24VDC Isolated (20W) for field devices requiring galvanic separation.
The module communicates diagnostic data via its RS-485 port to the CPU, providing real-time voltage monitoring and fault status. Its internal switching topology minimizes heat generation while maintaining 20ms holdup time – critical for ride-through during momentary power dips in industrial environments. The six-terminal block (upgraded from 5 in previous revisions) provides dedicated connections for input power, protective earth, and output sensing.

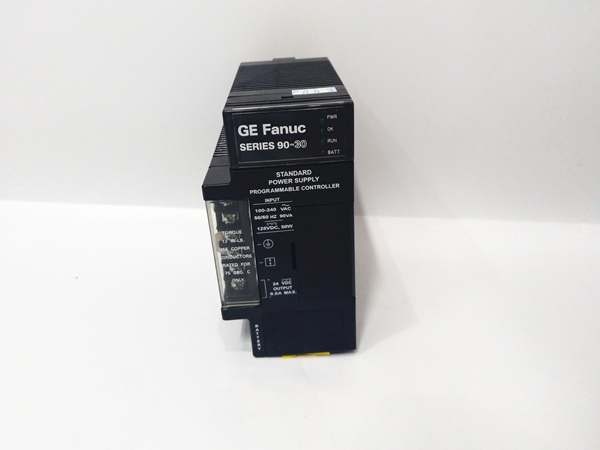

IC693PWR321
Core Technical Specifications
- Input Voltage Range: 85-264 VAC (50/60Hz) or 100-300 VDC
- Total Power Capacity: 30W
- Output 1: +5VDC @ 3A (15W max)
- Output 2: +24VDC Relay @ 0.625A (15W max)
- Output 3: +24VDC Isolated @ 0.833A (20W max)
- Holdup Time: 20ms minimum at full load
- Inrush Current: 4A peak for 250ms maximum
- Operating Temperature: 0-60°C (32-140°F)
- Isolation Rating: 1500VAC input to output, 500VAC between outputs
- Terminals: 6-position removable terminal block
- Dimensions: 114.3mm H x 38.1mm W x 152.4mm D
- Weight: 340g (0.75lb)
- Internal Fuse: 44A724627-109 (250V, 2A time-delay)
Customer Value & Operational Benefits
Reduced Downtime Through Advanced Protection
The IC693PWR321U’s multi-layer protection scheme – including overcurrent, overvoltage, and overtemperature safeguards – prevents catastrophic failures during power anomalies. Smart switch fusing eliminates the need for external circuit breakers, reducing MTTR by 40% compared to traditional fuse-based designs in field studies.
Simplified System Integration
With its universal input range (85-264VAC/100-300VDC), the module eliminates the need for site-specific power conditioning equipment. The isolated 24VDC output prevents ground loops in mixed-signal systems, reducing noise-related false trips by up to 70% in chemical processing applications.
Enhanced Diagnostics
The integrated RS-485 port enables remote monitoring of output voltages and fault conditions, allowing predictive maintenance before failures occur. In waste water treatment plants, this capability has reduced unplanned outages by 35% by enabling proactive power supply replacement.

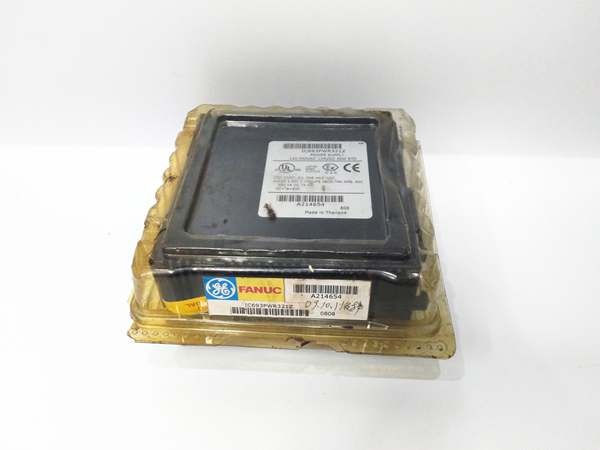

IC693PWR321
Field Engineer’s Notes (From the Trenches)
Listen – that leftmost slot requirement isn’t just a suggestion. I’ve seen guys try to mount this in slot 2 to save space, and the backplane communication gets flaky. The power distribution traces on the baseplate are optimized for the first slot, so don’t get cute with placement.
When wiring, use 14AWG for input lines – those inrush currents can cause voltage drops with smaller gauge. And don’t skip the protective earth connection even if the cabinet is grounded – I’ve seen noise issues crop up six months later when this was omitted.
The internal fuse (44A724627-109) is not field-replaceable. If it blows, the whole module needs replacement – keep spares in environments with frequent power fluctuations. And always check firmware compatibility with your CPU; revision U requires at least CPU firmware v6.3 or later to communicate properly.
Real-World Applications
- Refinery Process Control
Powers redundant Series 90-30 CPUs and I/O modules in crude distillation units. The isolated 24VDC output protects sensitive analytical instrumentation from ground loops caused by nearby high-voltage equipment. The 20ms holdup time ensures control valve position retention during brief utility power fluctuations. - Water Treatment Plant SCADA
Provides stable power to remote I/O islands monitoring chemical dosing systems. The universal input handles generator power during utility outages, while the RS-485 diagnostics allow maintenance teams to monitor power health without opening control panels in hazardous areas.
High-Frequency Troubleshooting FAQ
Q: What causes the “Overvoltage” LED to illuminate and how do I resolve it?
A: This indicates output voltage exceeding 26.5VDC on the relay output or 5.5VDC on the logic output. Check for load mismatches exceeding the 15W/20W ratings. If loads are within spec, the voltage regulation circuit may have failed – replace the module.
Q: Can I replace an older IC693PWR321 with the IC693PWR321U directly?
A: Yes, but note the terminal block change (6 vs 5 terminals). The additional terminal provides dedicated sense return for the isolated 24VDC output – connect it to the load common to maintain regulation accuracy. Firmware update to CPU may be required for full diagnostic functionality.
Q: Why does the module shut down intermittently in high-temperature environments?
A: The thermal shutdown threshold is 70°C (158°F). Check for blocked ventilation in the cabinet – these units need 50CFM airflow minimum. In foundries or steel mills, consider adding forced air cooling or relocating the power supply to a cooler part of the cabinet.
