Description
System Architecture & Operational Principle
The IC693MDL940L occupies a single slot on the GE 90-30 universal backplane, functioning as a discrete AC input interface at Level 1 of the Purdue Model (Basic Control). It receives 120V AC signals from field devices (dry contacts, limit switches, pushbuttons) and converts these signals into logic levels readable by the CPU. Upstream, the CPU reads the input state via %I memory mapping during each scan; downstream, the module provides optical isolation and zero-crossing detection to prevent false triggering from contact bounce or voltage transients.
The -L suffix indicates this is a very late or final extended production revision of the IC693MDL940 platform. This revision builds upon all cumulative engineering improvements from earlier iterations (A through K), incorporating any final component updates, manufacturing optimizations, or regional compliance adjustments. Unlike the IC693MDL930 with its 8-point isolation groups, the IC693MDL940L features a single common reference for all 32 inputs. All inputs share the same neutral connection and ground reference, which simplifies wiring for applications where all field devices are powered from the same 120V AC source.

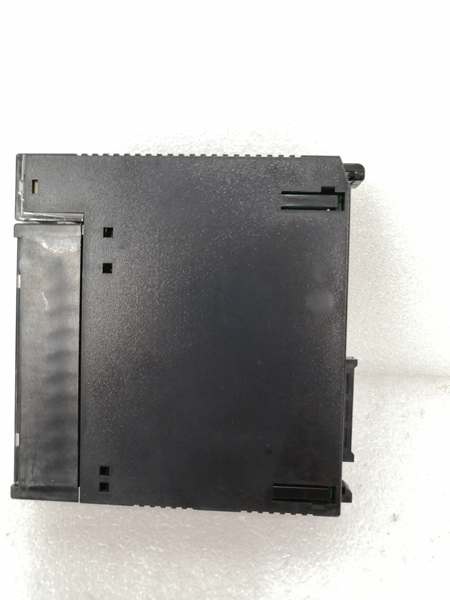

GE IC693MDL940
Core Technical Specifications
- Specific Revision: Very late or final extended production revision (-L) with cumulative engineering improvements vs. earlier revisions
- Physical Interface: 40-pin terminal block (2 connectors, 16 points each) or front-facing removable terminal block option
- Internal Bus: 90-30 universal backplane (5V DC power, signal exchange via %I memory)
- Input Type: 32-point discrete input, 120V AC, non-isolated (single common reference)
- Input Voltage Range: 90-132V AC at 47-63 Hz (platform rated; verify specific module labeling)
- Input Current: 12mA per point at 120V AC
- Isolation: 1500V RMS optical isolation between field side and backplane; inputs share common reference (no group isolation)
- Backplane Current Draw: Approximately 480mA @ 5V DC
- Response Time: 20-40ms typical (zero-crossing detection adds inherent delay)
- LED Indicators: Individual LEDs per input point (ON when input energized) plus module status LEDs
- Environmental: Operating temperature 0°C to 60°C (32°F to 140°F), humidity 5-95% non-condensing
- Letter Code: Revision letter L indicates a very late or final extended production iteration
- Terminal Block: 40-pin plug-in terminal block, supports wire gauges 22-14 AWG
- Field Wiring: Single common neutral for all 32 inputs; inputs accept dry contacts or sourcing 120V AC signals
- Diagnostic Capabilities: No onboard diagnostics beyond LED indication (discrete module, not intelligent)
- Zero-Crossing Detection: Input state changes recognized only at AC zero-crossing points (every 8.3ms at 60Hz)
- Revision Status: Very late or final extended production iteration with all cumulative improvements
Customer Value & Operational Benefits
Ultimate Reliability from Final Extended Production Engineering
The IC693MDL940L represents the very late or final extended production evolution of the IC693MDL940 platform, incorporating all engineering improvements from prior revision cycles. This revision delivers the highest reliability and longest service life of any 940 variant. Facilities installing -L modules benefit from years of field feedback and component stress testing—known failure modes from earlier revisions have been eliminated through design refinements. For new installations or complete rack replacements, the -L revision provides optimal lifecycle value, reducing long-term maintenance costs and minimizing the risk of premature module failure.
Simplified Wiring with Single Common Reference
The IC693MDL940L’s non-isolated design with a single common neutral significantly reduces wiring complexity compared to isolated input modules. Technicians only need to connect one neutral for the entire module, reducing terminal block wiring time and minimizing the potential for wiring errors during installation. For applications where all field devices are powered from the same 120V AC source and share the same ground reference, this design provides optimal simplicity—no need to track which inputs belong to which isolation group or connect multiple neutrals.
Zero-Crossing Detection Provides Noise Immunity
The zero-crossing detection circuitry ensures that input state changes are only recognized when the AC waveform crosses zero volts, providing inherent immunity to voltage spikes and contact bounce. In noisy electrical environments (near large motors, transformers, or welding equipment), DC inputs or non-zero-crossing AC inputs may false-trigger from transient noise. The -L revision’s zero-crossing requirement means that momentary voltage spikes occurring during the AC waveform’s peak are ignored—the input only recognizes sustained signals that span multiple zero-crossings.
GE IC693MDL940
Field Engineer’s Notes (From the Trenches)
Here’s the critical detail on the -L revision: as a very late or final extended production run, the -L may include subtle regional compliance adjustments or component substitutions that don’t affect function but can matter for documentation. I’ve encountered -L modules with updated labeling for specific markets (e.g., additional CE markings, updated safety certifications) that differ slightly from earlier revisions. The lesson? Check the module’s certification markings if your facility requires specific regional compliance (e.g., IEC standards for international plants). However, functionally, the -L behaves identically to earlier late revisions. Also, the -L inherits the 940 platform’s fundamental limitation—no input-to-input isolation. All 32 inputs share a common reference. I’ve seen techs assume the -L revision added isolation features because it’s “the latest,” then wire inputs from different 120V AC sources with different ground references, which causes ground loops. The -L revision improves component durability but does not change the platform architecture—it remains a non-isolated module designed for applications where every input shares the same 120V AC source and ground. If you have mixed power sources or different ground references, use the isolated IC693MDL930 instead. Finally, verify terminal block compatibility—late revisions sometimes use updated terminal block plastics that may have different torque specifications or locking mechanisms.
Real-World Applications
High-Reliability Assembly Line with Long-Term Operational Requirements
In automotive final assembly plants where production uptime is critical and module replacement logistics are complex, the IC693MDL940L monitors 32 limit switches, pushbuttons, and selector switches for workstation interlocks and sequencing. The -L revision’s ultimate reliability is valuable for these high-cycle applications where inputs may switch thousands of times per shift and module replacement requires coordinated production shutdowns. The single common neutral simplifies wiring in the crowded control cabinet—technicians connect one neutral for all 32 inputs, reducing wiring time and minimizing the potential for errors. The zero-crossing detection provides noise immunity in the electrically noisy assembly environment near resistance welding robots and large motors.
Pharmaceutical Manufacturing Facility with Extended Validation Cycles
In pharmaceutical manufacturing plants where equipment validation cycles are lengthy and replacement logistics are challenging, the IC693MDL940L monitors 32 inputs from process equipment status contacts, valve position switches, and operator controls. The -L revision’s extended production status ensures long-term component availability, which is critical for validated systems where module replacements require revalidation and documentation updates. The non-isolated design matches the centralized power architecture—all inputs share the same 120V AC source and ground reference, eliminating the need for isolation groups. The zero-crossing detection eliminates false triggers from contact bounce on mechanical limit switches and from electrical noise generated by HVAC systems and process equipment.
High-Frequency Troubleshooting FAQ
The is a very late or final extended production revision of the 940 platform, incorporating all engineering improvements from earlier revisions (A through K). Functionally, the modules are identical—32 input points, 120V AC, non-isolated with single common reference, identical response times and current draw. The -L revision may include subtle regional compliance adjustments, updated labeling, or component substitutions for long-term availability, but these changes do not affect field operation. No programming changes, wiring modifications, or configuration updates are required when upgrading from earlier revisions—the -L is a drop-in replacement with functional parity.
Should I standardize on the -L revision for long-term 90-30 operations?
For facilities planning long-term operation of 90-30 systems, the -L revision is an excellent choice for standardization. As a very late or final extended production iteration, the -L represents the mature, battle-tested evolution of the platform with the highest reliability and longest expected service life. However, if -L units have limited availability or if your facility has already standardized on an earlier late revision (such as -J or -K), the functional differences are minimal. The decision should be based on your facility’s specific spare parts strategy, lead time requirements, and regional compliance needs.
Do I need to worry about isolation with the -L revision?
Yes, the inherits the 940 platform’s non-isolated architecture—all 32 inputs share a common reference. The -L revision improves component reliability and may include regional compliance adjustments but does not add isolation groups. If your application requires inputs from different 120V AC sources or different ground references, you must use the isolated IC693MDL930 with its 8-point isolation groups. The -L revision is designed exclusively for applications where all field devices share the same 120V AC source and ground reference. Attempting to mix power sources on an -L module will cause ground loops, erratic behavior, or potential damage.
How do I verify regional compliance on the -L revision?
Check the module’s certification markings on the front label or side casing. Late revisions like the -L may include updated regional compliance labels such as additional CE markings, IEC 61010 certifications, or country-specific safety approvals. If your facility requires specific regional compliance (e.g., IEC standards for international plants, CCC certification for China), verify that the -L module displays the appropriate markings. If the module lacks required certifications for your region, contact GE or your distributor for clarification—some late revisions may have multiple certification variants. Always document the certification status in your asset management system for compliance audits.
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
