GE IC693CMM302P | GCM+ Global Data Module – Revision P – Technical Brief

Description

Hard-Numbers: Technical Specifications

• Module Type: Enhanced Genius Communications Module (GCM+) – Revision P
• Communication Type: Global Data on Enhanced Genius I/O Serial Bus
• Network Topology: Token-passing peer-to-peer
• Maximum Devices per Module: 31 devices on Genius bus
• Maximum PLC Connections: Up to 2 GCM+ modules per Series 90-30 PLC (up to 62 total devices per controller)
• Global Data Capacity: 128 bytes transmit, 128 bytes receive per GCM+ module
• Supported Registers: %G (Global), %I (Discrete Input), %Q (Discrete Output), %AI (Analog Input), %AQ (Analog Output), %R (Register Memory)
• Slot Width: Single slot
• Slot Assignment: Any slot except CPU slot
• Compatible Baseplates: CPU baseplate, Expansion baseplate, Remote baseplate (CPU baseplate recommended for optimal performance)
• LED Indicators: OK (module status), COM (bus communication status)
• Backplane Current Draw: <300 mA at 5 VDC
• Configuration Method: Handheld programmer or GE Logicmaster 90-30 software (rel. 3.5 or later required)
• Power Requirements: 5 VDC logic power from backplane
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -25°C to +70°C (-13°F to +158°F)
• Humidity: 5% to 95% non-condensing
• Vibration/Shock: 0.2 inch displacement (5Hz-10Hz), 1 G (10Hz-200Hz), 5 G (10ms duration)
• Compatible PLC Series: Series 90-30 (primary), Series 90-70, Series Six (with respective Genius Bus Controllers)
• GCM Compatibility: NOT compatible with standard GCM modules (IC693CMM301)
• Data Monitoring: Industrial or personal computer with PCIM card
• Additional Features: Peer-to-peer communication, master-slave communication, I/O emulation, data monitoring from Genius I/O blocks
• Revision: Series P – GE Fanuc revision designation for manufacturing/feature set identification
• Product Lifecycle Status: Discontinued/Obsolete

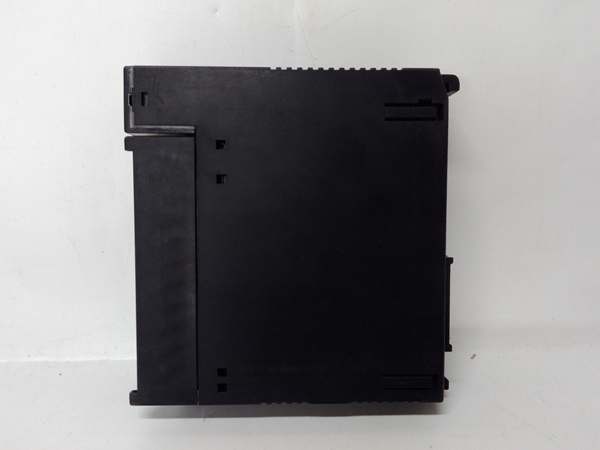

  GE IC693CMM302

The Real-World Problem It Solves

• Large-scale distributed I/O architectures: Manufacturing plants, material handling systems, and process facilities with extensive Genius I/O networks
• Multi-PLC coordination systems: Applications requiring large data exchange between multiple Series 90-30, Series 90-70, and Series Six PLCs
• Data-intensive monitoring: Industrial computers monitoring extensive process data from multiple PLCs and Genius I/O blocks
• High-density automation: Systems where standard GCM data capacity and device limits are insufficient for application requirements

Hardware Architecture & Under-the-Hood Logic

1. Enhanced Genius Bus Protocol ArchitectureThe Revision P GCM+ implements the advanced Genius Communications protocol:
   • Token-passing topology: Each device receives the token in predetermined order
   • Peer-to-peer communication: No master device required
   • Enhanced device capacity: Up to 31 devices per module (vs. 8 on standard GCM)
   • Deterministic data exchange: Token rotation time remains predictable and bounded
   • Noise-immune design: Differential signaling on shielded twisted pair cable
   • Cable specifications: Enhanced cable types supporting longer runs and higher baud ratesThe Revision P maintains the enhanced protocol while potentially incorporating minor optimizations.
2. Expanded Global Data Exchange MechanismRevision P GCM+ provides the enhanced global data capacity:
   • 128 bytes (1024 bits) transmit per module (vs. 32 bytes on standard GCM)
   • 128 bytes receive per module (vs. 32 bytes on standard GCM)
   • Broad register support: %G, %I, %Q, %AI, %AQ, %R memory areas
   • Automatic and repeated data transmission without program logic
   • All devices on the bus receive all global data simultaneously
   • Shared database creation across all participating devicesThe quadrupled data capacity supports complex data sharing scenarios.
3. Dual-Module Support and Network SegmentationRevision P GCM+ supports multiple modules per PLC:
   • Up to 2 GCM+ modules can be installed in a single Series 90-30 PLC
   • Each GCM+ module operates its own independent Genius bus
   • Enables network segmentation: Separate Genius buses for different system areas
   • Maximum device capacity per PLC: Up to 62 devices (31 per module × 2 modules)
   • Prevents GCM+ and GCM module mixing in the same PLC
   • Enables complex network architectures with isolated segmentsDual-module capability provides flexible network design and expanded connectivity.
4. Revision P CharacteristicsThe P revision denotes specific manufacturing characteristics:
   • GE Fanuc revision designation for production run identification
   • May incorporate minor feature enhancements or manufacturing improvements
   • Maintains full GCM+ functionality and compatibility
   • Electrically and functionally compatible with other IC693CMM302 revisions
   • Revision-specific manufacturing date or feature setThe P revision provides identical technical specifications while potentially incorporating quality improvements.
5. Enhanced Application CapabilitiesRevision P GCM+ supports multiple communication modes:
   • Data monitoring by industrial or personal computers via PCIM cards
   • Peer-to-peer communications among devices on the bus
   • Master-slave communications emulating remote I/O
   • Data monitoring from Genius I/O blocks (read-only, no control capability)
   • Software diagnostics with status bits and fault reporting to Series 90-70 PLCs
   • I/O emulation for remote I/O applicationsThe enhanced functionality provides versatile integration options for complex automation systems.
6. Module Placement and Performance OptimizationWhile Revision P GCM+ can be installed in multiple baseplate types:
   • Compatible with CPU, expansion, and remote baseplates
   • CPU baseplate installation recommended for optimal performance
   • Sweep impact time depends on PLC model and baseplate location
   • CPU baseplate installation minimizes sweep impact and maximizes performance
   • Expansion or remote baseplate installation supported but reduces efficiency
   • Installation location affects data update latency and system responsivenessProper placement is critical for achieving optimal GCM+ performance.
7. Register Integration and Memory MappingRevision P GCM+ provides comprehensive register access:
   • %G (Global register): Dedicated global data memory
   • %I (Discrete Input): Share discrete input data
   • %Q (Discrete Output): Share discrete output data
   • %AI (Analog Input): Share analog input data
   • %AQ (Analog Output): Share analog output data
   • %R (Register Memory): Share register memory data
   • Flexible mapping enables sharing virtually any PLC data type on the Genius busThe broad register support enables comprehensive data sharing across the network.
8. LED Status Indicators and DiagnosticsTwo LEDs provide diagnostic information on Revision P:
   • OK LED: Illuminates when module passes power-up diagnostics and operates properly. Off indicates module failure or fatal power-up error.
   • COM LED: Illuminates when PLC has initialized the module and module receives bus communications. Normally stays ON during operation. Blinking indicates excessive communication errors. Off indicates failed bus or no configuration received.
   • Enhanced diagnostics include status bits and fault reporting
   • Software diagnostics support monitoring and troubleshootingLEDs provide immediate visual feedback for operational status.
9. Power and Backplane InterfaceRevision P GCM+ draws power from the Series 90-30 backplane:
   • Backplane current draw: <300 mA at 5 VDC
   • Lower power consumption compared to many communication modules
   • Enables multiple modules in same PLC without exceeding power budget
   • No external power supply required
   • Backplane provides all necessary power and communication interfaceEfficient power design supports dual-module configurations.
10. Compatibility and Integration ConstraintsRevision P GCM+ has specific compatibility requirements:

• NOT compatible with standard GCM modules (IC693CMM301) in same PLC
• If GCM is present in a system, GCM+ modules cannot be added
• Compatible with Series 90-70 and Series Six PLCs via respective Genius Bus Controllers
• Requires Logicmaster 90-30 software rel. 3.5 or later for configuration
• PCIM cards enable computer integration for monitoring applicationsCompatibility constraints must be respected for proper system operation.

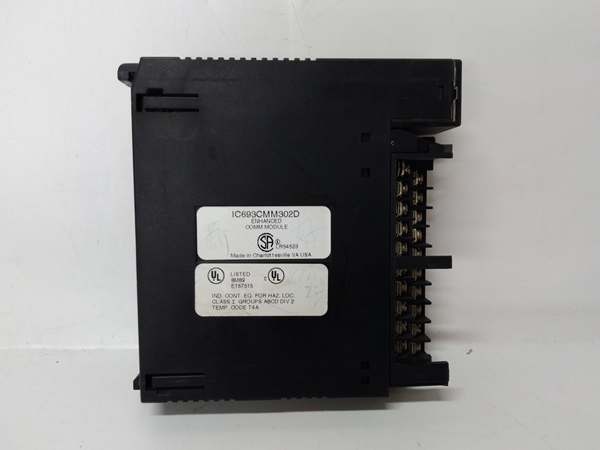

  GE IC693CMM302

Field Service Pitfalls: What Rookies Get Wrong

• Field Rule: Revision P is a manufacturing/design revision identifier. All IC693CMM302 revisions (A through Z) maintain identical technical specifications: 128 bytes global data capacity, 31 devices per module, dual-module support. Revision P may incorporate quality improvements but does not change core functionality.

• Field Rule: GCM+ modules (any revision including P) are NOT compatible with standard GCM modules in the same PLC. You must choose one type per PLC system. If you need GCM+ capabilities, remove all standard GCM modules first, regardless of revision.

• Field Rule: Maximum 31 devices per GCM+ module Genius bus, regardless of revision. This includes all devices: PLCs, Genius I/O blocks, remote drops, field control stations, and any other Genius devices. Count all devices—exceeding 31 causes instability and unpredictable communication failures.

• Field Rule: Maximum 2 GCM+ modules per Series 90-30 PLC, regardless of revision (P or otherwise). Each module requires its own independent Genius bus. If you need more than 62 total device connections (31 per module × 2 modules), use multiple PLCs or network segmentation. The 2-module limit is a hard constraint.

• Field Rule: GCM+ modules (any revision including P) can be installed in any slot EXCEPT the CPU slot. The CPU slot is reserved for the processor module only. Use I/O slots for the GCM+ module. CPU slot installation causes conflicts and prevents proper system initialization.

• Field Rule: CPU baseplate installation is recommended for optimal GCM+ performance, regardless of revision. Sweep impact time depends on PLC model and baseplate location. While expansion and remote baseplates are supported, expect reduced performance. Install in CPU baseplate whenever possible for maximum responsiveness.

• Field Rule: GCM+ modules (any revision including P) require Logicmaster 90-30 software release 3.5 or later for proper configuration. Earlier versions may not recognize the module or may lack GCM+ configuration options. Verify software version before attempting configuration.

• Field Rule: GCM+ modules (any revision including P) can monitor data from Genius I/O blocks but cannot control them. For I/O control functionality, use appropriate Genius Bus Controllers or other I/O control modules. GCM+ is primarily for global data exchange and monitoring, not direct I/O control.

• Field Rule: Maximum 128 bytes (1024 bits) transmit and receive per GCM+ module, regardless of revision. While this is quadruple the standard GCM capacity, it’s still a limit. Configure data within these boundaries. If you need more data capacity, install a second GCM+ module in the PLC.

• Field Rule: GCM+ modules (any revision including P) may require enhanced cable specifications for optimal performance, especially for longer runs or higher baud rates. Consult the GCM+ manual for specific cable requirements. While some standard cables may work, enhanced cables provide the performance characteristics GCM+ is designed for.

• Field Rule: GCM+ modules (any revision including P) support broad register access including %G, %I, %Q, %AI, %AQ, and %R. Leverage this capability by configuring data sharing directly from the appropriate register type. Eliminate manual data copying and maximize the value of GCM+ enhanced register integration.

• Field Rule: Always terminate the Genius bus at both ends using proper termination resistors specified for GCM+ operation, regardless of revision. Unterminated buses cause signal reflections that create ghost data, CRC errors, and communication failures. Proper termination is critical for reliable operation.

• Field Rule: COM LED should stay ON steadily during normal GCM+ operation, regardless of revision. Blinking indicates bus errors from noise, improper wiring, baud rate conflicts, device number conflicts, or termination issues. Address blinking immediately—waiting leads to complete communication failure.

• Field Rule: Every device on the GCM+ Genius bus requires a unique device number, regardless of module revision. Document device numbers and verify no duplicates before powering up. The token passing protocol requires unique identifiers—duplicate numbers prevent bus initialization.

• Field Rule: Never hot-swap the IC693CMM302P. Power down the PLC rack before installing or removing the module, regardless of revision. Backplane transients during hot insertion can destroy module electronics or corrupt CPU memory. Always power down before module changes.
