Description
Section 3. Product Introduction
The GE IC693CMM301 is a Genius Communications Module for Series 90-30 PLC systems. It provides automatic global data communications between a Series 90-30 PLC and up to seven additional devices on a Genius bus using token-passing peer-to-peer architecture.
This unit differs from standard I/O modules by supporting multi-PLC data sharing without central controllers. Rated for 32–140°F operating range with 256-bit data capacity. Supports up to 31 devices total on bus—verify with OEM datasheet.
Section 4. Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Genius Communications Module (GCM) |
| Product Line | Series 90-30 |
| Data Type | Global Data |
| Maximum Data Rate | 256 Bits (32 Bytes) |
| Bus Protocol | Token-Passing Peer-to-Peer |
| Maximum Devices | Up to 8 Series 90-30 PLCs (31 total devices on bus) |
| Cable Type | Twisted-Pair Shielded (daisy-chained) |
| Operating Temperature | 32–140°F (0–60°C) |
| Storage Temperature | -13–158°F (-25–70°C) |
| LEDs | 2 (OK, COM) |
| Weight | 1.00 lbs (0.45 kg) |
| Configuration | Software or Handheld Programmer (no DIP switches) |

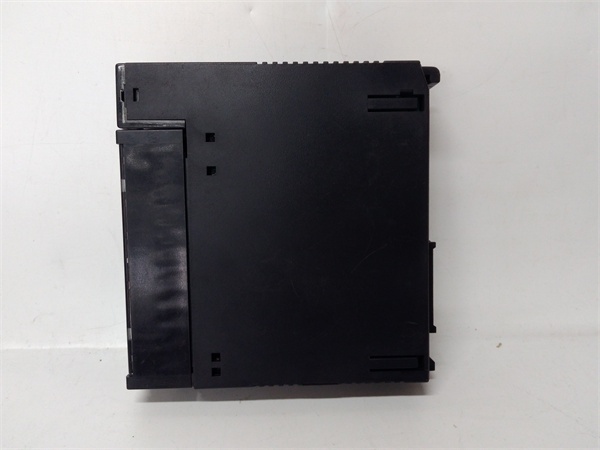

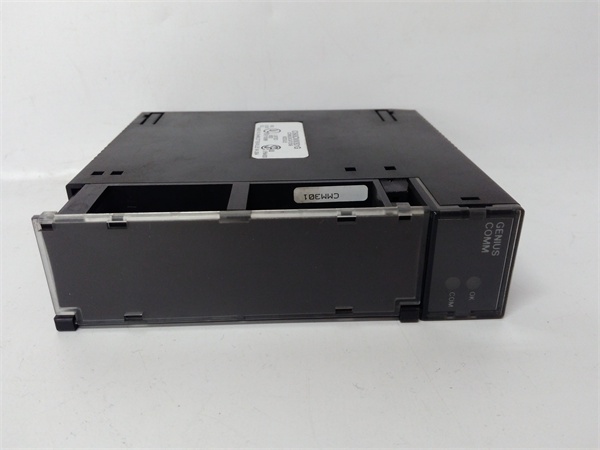

GE IC693CMM301
Section 5. Quality Control Process
1. Incoming VerificationTrace source documentation and cross-check serial numbers against OEM records. Visual inspection for corrosion, impact damage, or connector wear on terminal block pins. Verify revision code matches system requirements.
2. Live Functional TestInstall in CPU baseplate Slot 2–10. Power-on and verify OK LED illuminates after diagnostics. Establish Genius bus handshake with second PLC; confirm COM LED steady-state. Run continuous global data exchange >24 hours.
3. Electrical Parameter TestMeasure backplane current draw at 5 VDC; verify within nominal range. Test insulation resistance between bus terminals and ground using 500 V Megger; must exceed 10 MΩ. Verify shield continuity on twisted-pair cable.
4. Firmware VerificationRead module revision via programming software (IC693CMM301D/E/F/G). Photograph front label for documentation. Confirm compatibility with host CPU firmware version—earlier modules may require upgrade kit for newer CPUs.
5. Final QC & PackagingSeal in anti-static bag with desiccant pack. Apply QC Passed label with date and technician initials. Double-box with foam inserts; terminal block requires protective cap.
Section 6. Replacement Pitfall Guide
❗ Firmware CompatibilityThe IC693CMM301 has revision-specific CPU compatibility. Modules versions E and earlier are incompatible with CPU 311H, 321H, 331J or later. Verify your CPU firmware before ordering—incompatibility causes no-communication faults.
❗ Bus Configuration ConflictsGenius bus requires proper termination resistors at both ends. Factory modules ship without configuration; missing termination causes signal reflection errors. Document existing bus topology before swapping.
❗ Cable Distance LimitsMaximum cable run depends on baud rate and cable type. At 153.6 kbps, maximum distance is 7500 ft with 100-ohm twisted-pair shielded cable. Exceeding limits causes intermittent COM failures.
❗ Global Data MappingThis module supports 256 bits maximum across the bus. Adding too many devices or oversized data maps causes buffer overflow errors. Calculate total global data requirements before expansion.
❗ Remote Rack RestrictionsOnly revision F and later modules support installation in remote racks. Earlier revisions must be upgraded using Kit 44A286397-G03 for remote deployment. Installing incompatible revision causes initialization failure.
Keep these in mind and you’ll cut 90% of rework time.

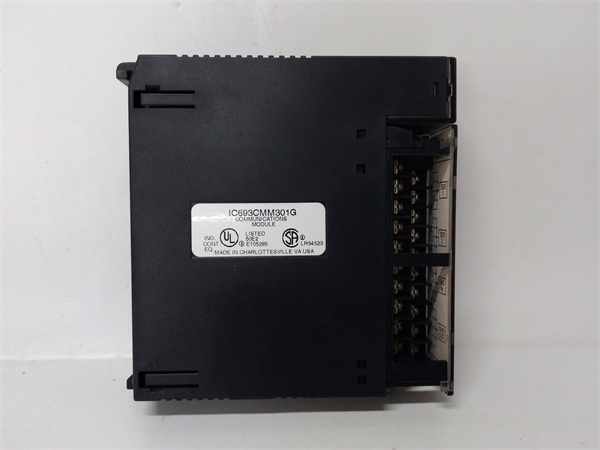

GE IC693CMM301
Section 7. Compatibility Matrix & Benchmarks
Compatibility Matrix
- IC693CMM301 → IC693CMM302 (enhanced GCM) : Needs Adaptation — Same form factor, different features
- IC693CMM301 → IC693BEM331 (Genius Bus Controller) : Incompatible — Different module type, not direct replacement
- IC693CMM301 → IC693CMM301F/G (later revisions) : Direct — Same function, verify CPU compatibility
- IC693CMM301 → IC697CMM301 (Series 90-70 GCM) : Incompatible — Different product line
- IC693CMM301 → IC693CMM321 (Ethernet Module) : Incompatible — Different communication protocol
Benchmarks
- Global data exchange: 32 bytes (256 bits) per cycle
- Bus throughput: Up to 153.6 kbps (maximum baud rate)
- Token rotation time: 10–50 ms (typical 8-device configuration)
- COM response time: <5 ms (module initialization after power-up)
