Description
Hard-Numbers: Technical Specifications
- Protocol Support: Profibus-DP
- Communication Speed: 12 Mbit/s maximum
- Port Count: 8 digital output channels (positive logic)
- Output Voltage: 24 VDC
- Output Current: 2 A per channel
- Logic Type: Positive logic (sourcing)
- Protection Rating: IP67
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Mounting: DIN rail mounting
- Indicators: One LED per output point for status visualization
- Configuration: Software-configurable output parameters

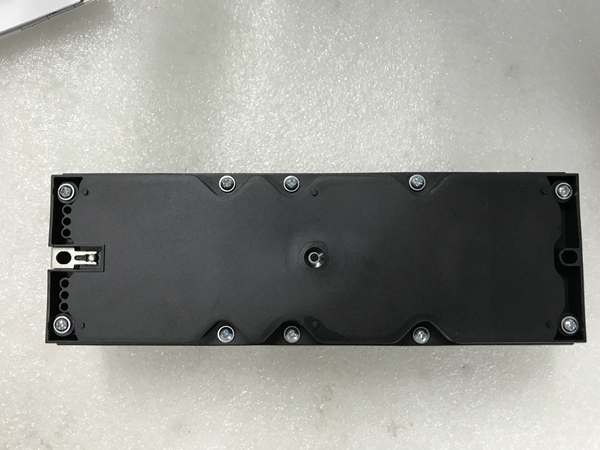

GE IC676PBO082
The Real-World Problem It Solves
This module brings high-current control directly to the field while surviving water and dust exposure. The IP67 rating allows installation without an enclosure in washdown areas, outdoor locations, or harsh environments where standard I/O modules would fail.
Where you’ll typically find it:
- Washdown environments: Food and beverage processing lines requiring regular cleaning.
- Outdoor equipment: Material handling systems exposed to weather and dust.
- High-current control: Direct solenoid valve and contactor driving without intermediate relays.
Bottom line: It trades bus interface complexity for ruggedness and high per-point current in a compact package. Use it where environmental sealing matters more than distributed I/O flexibility.
Hardware Architecture & Under-the-Hood Logic
This is a “smart” Profibus node with integrated control electronics, not a passive output block. Each channel handles its own load switching, and the module communicates directly with the Profibus master (PLC) over the network.
-
Profibus Communication:
- Module connects to Profibus-DP network via 9-pin D-sub connector.
- Data exchange occurs at up to 12 Mbit/s, ensuring real-time responsiveness.
- Node address and communication parameters are configured via software (Hand-Held Programmer or configuration tool).
-
Output Control:
- 8 positive logic (sourcing) outputs source current to loads.
- Each channel can switch up to 2 A at 24 VDC.
- Solid-state switching devices (likely FETs or MOSFETs) handle the load current.
-
Environmental Protection (IP67):
- Sealed enclosure prevents dust ingress and water immersion up to 1 meter depth for 30 minutes.
- Gasketed connectors and sealed housing maintain IP rating when properly installed.
- Allows direct field mounting without additional protective enclosures in many applications.
-
Diagnostics:
- Individual LED indicators show each output’s status (ON/OFF).
- Module reports diagnostics to Profibus master (fault detection, open-circuit, overtemperature).
- Self-monitoring for internal faults ensures reliability.
-
Power Supply:
- Requires external 24 VDC power (not powered from Profibus network).
- Internal power regulation ensures stable operation under input voltage variations.
GE IC676PBO082
Field Service Pitfalls: What Rookies Get Wrong
Ignoring IP67 sealing during installation
The IP67 rating only applies when connectors are properly seated and gaskets are intact. Rookies leave dust caps off or damage connector seals, compromising the waterproof rating and causing corrosion in washdown areas.
- Field Rule: Always install protective dust caps on unused ports. Inspect gaskets before installation and replace if damaged. Ensure connectors are fully seated and tightened to specification.
Overloading 2A per channel rating
Each channel maxes at 2 A, but rookies attempt to drive larger loads directly, causing thermal shutdown or output failure. The 2A rating is per point, not shared across channels.
- Field Rule: Calculate individual load currents. If a device draws more than 2 A, use an interposing relay or contactor. Never exceed the 2 A limit on any single output.
Missing the positive logic (sourcing) requirement
This is a positive logic (sourcing) module—outputs switch to +24VDC. Rookies wire loads expecting sinking behavior, resulting in loads that never energize.
- Field Rule: Load negative returns go to 0V/common. Output terminals switch to +24VDC when activated. Verify polarity with a multimeter before connecting field devices.
Overlooking software configuration
The module requires software configuration for Profibus addressing and output parameters. Rookies assume default settings will work, leading to communication failures or unexpected output behavior.
- Field Rule: Always use the Hand-Held Programmer or configuration software to set the correct Profibus node address and output parameters before commissioning.
Neglecting operating temperature limits
The module is rated 0°C to +55°C. Rookies install it in outdoor enclosures exposed to sub-freezing temperatures or direct sunlight exceeding the upper limit, causing intermittent failures.
- Field Rule: Ensure the installation environment stays within the 0–55°C range. Use enclosure heating or cooling if ambient temperatures fall outside this range.
Assuming IP67 eliminates all enclosure needs
While IP67 is robust, it doesn’t protect against all hazards. Rookies mount the module without considering mechanical impact, chemical exposure, or UV degradation from sunlight.
- Field Rule: Assess environmental hazards beyond dust and water. Use protective enclosures or covers if the module is exposed to mechanical impact, aggressive chemicals, or prolonged UV exposure.
