Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | GE IC660TBD025 |
| Manufacturer | GE Fanuc |
| Product category | Digital Input/Output Module |
| Operating Voltage | 10-30 V DC |
| Input Channels | 16 |
| Output Channels | 16 |
| Input Type | Digital |
| Output Type | Digital |
| Input Voltage Range | 10-30 V DC |
| Output Voltage Range | 10-30 V DC |
| Maximum Output Current per Circuit | 0.5 A |
| Maximum Inrush Current | 4 A for up to 10 ms |
| Input Impedance | 3.3 kΩ |
| Input Filter Time | 1-100 ms (selectable) |
| Input Processing Time | 1.4 ms |
| Output Turn-on Delay | 0.5 ms max |
| Total Block Output Current | 16 A |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | 224 mm × 90 mm × 112 mm |
| Weight | 1.8 kg |
| Certifications | CE, UL, RoHS |

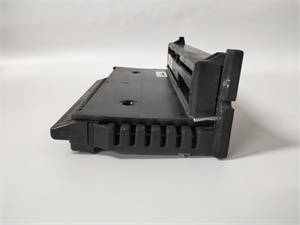

IC660TBD025
Product Introduction
The GE IC660TBD025 is a high-performance digital input/output module designed for industrial automation systems. It is part of the Genius I/O series and provides reliable and efficient signal processing, making it suitable for various industrial environments.
Core Advantages and Technical Highlights
High-Density I/O
The GE IC660TBD025 offers 32 digital input and output channels, providing high-density I/O capabilities. This makes it ideal for applications requiring a large number of I/O points in a compact form factor.
Reliable Performance
This module is designed to operate reliably in harsh industrial environments, with an operating temperature range of 0°C to 60°C and a storage temperature range of -40°C to 85°C.
Flexible Configuration
The module supports multiple voltage levels, including 5V DC, 12V DC, and 24V DC, making it adaptable to different power requirements within industrial environments.
Enhanced Diagnostics
The GE IC660TBD025 includes advanced diagnostic features that enable real-time monitoring and troubleshooting. Users can quickly identify issues, reducing downtime and maintenance costs.

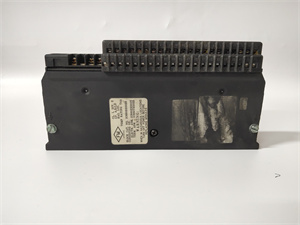

IC660TBD025
Typical Application Scenarios
The GE IC660TBD025 is widely used in various industrial applications, including:
-
Manufacturing: Controlling production lines and robotic systems.
-
Power Generation: Real-time monitoring and control of turbines and generating units.
-
Chemical Processing: Monitoring and controlling hazardous processes in chemical plants.
-
Water Treatment: Managing water treatment processes and monitoring environmental parameters.
Related Model Recommendations
-
GE IC660TBD024: A similar module with different voltage and current ratings.
-
GE IC660TBD026: A module with enhanced features and higher performance.
-
GE IC660TBD023: A module with fewer I/O channels, suitable for smaller applications.
-
GE IC660TBD022: A module with different I/O configurations, offering more flexibility.
-
GE IC660TBD021: A basic module for simple digital I/O applications.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the GE IC660TBD025, ensure that the power to the system is turned off to avoid electrical hazards. Check the module for any visible damage and ensure that the installation environment meets the specified temperature and humidity ranges.
Maintenance Suggestions
Regular maintenance is essential to ensure the longevity and reliability of the GE IC660TBD025. Periodically inspect the module for loose connections, signs of wear, or corrosion. Clean the module and its surroundings to prevent dust accumulation, which can lead to overheating.
Service and Guarantee Commitment
The GE IC660TBD025 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. GE Fanuc is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
