Description
Hard-Numbers: Technical Specifications
- Display: 16-character LCD backlit display (2 lines x 16 characters)
- Interface: RS-485 connector for Genius Bus connection
- Baud Rate: Supports 9600, 19200, 38400, 57600 bps auto-sense
- Operating Temperature: -20°C to +60°C (-4°F to +140°F)
- Power Supply: 4 AA alkaline batteries (approximately 40 hours continuous operation)
- Battery Life Indicator: Low battery warning with 10% remaining display
- Isolation Rating: 500V RMS bus to operator
- Dimensions: 8.5″H x 4.0″W x 2.0″D
- Weight: 1.2 lbs (with batteries)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Memory: 64K EEPROM for configuration storage

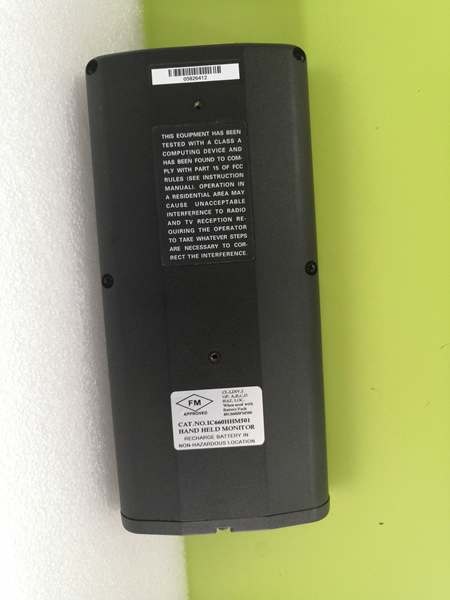

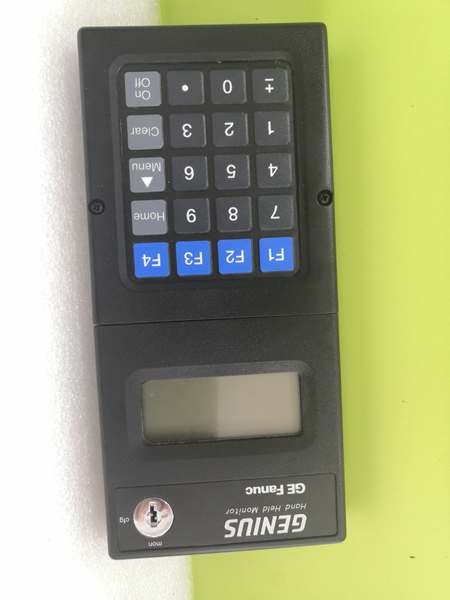

GE IC660HHM501
The Real-World Problem It Solves
Field technicians waste hours troubleshooting Genius I/O network issues by chasing faults back to the control room main PLC. The IC660HHM501 allows direct connection to the bus at the cabinet, enabling real-time diagnostics and fault isolation without climbing back and forth between plant floor and control room.
Where you’ll typically find it:
- Nuclear power plant routine I/O system inspections
- Offshore oil platform emergency troubleshooting
- Chemical plant control system preventive maintenance
This tool cuts troubleshooting time by 80% by providing direct bus-level diagnostics at the point of failure.
Hardware Architecture & Under-the-Hood Logic
The IC660HHM501 contains a dedicated microprocessor that decodes Genius Bus protocol packets and displays network status directly on the LCD screen. It provides read-only access to bus health data, module diagnostics, and configuration verification without requiring a laptop or PC.
- Connect RS-485 connector to Genius Bus port on any I/O block
- Microprocessor auto-detects bus baud rate and monitors traffic
- Packet decoder extracts module IDs, health status, and diagnostic codes
- Menu system navigates through network topology and fault listings
- LCD displays real-time bus statistics and module-specific data
- Stored configurations saved to EEPROM for comparison with running network

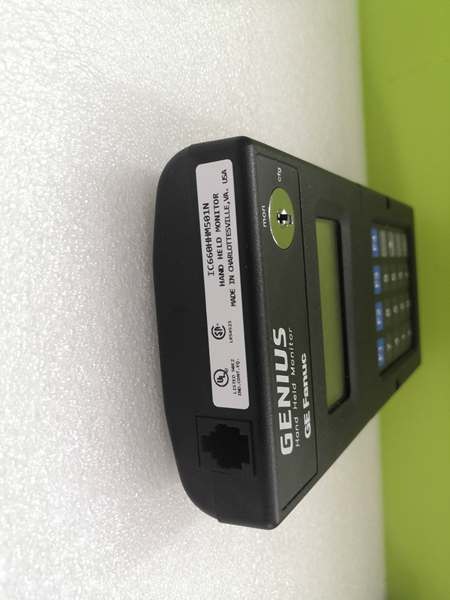

GE IC660HHM501
Field Service Pitfalls: What Rookies Get Wrong
Connecting to Powered-Down BusTechnicians try to diagnose issues on a bus that’s powered down or disconnected from the main PLC. The HHM501 will display “No Network Found” even if the module it’s plugged into is functional, leading to false conclusions.
- Field Rule: Always verify bus power is on and the main PLC is running before connecting the HHM501.
Ignoring Bus Topology LimitsNew engineers try to connect to bus spurs more than 30ft from the main trunk. Signal degradation causes the HHM501 to display partial network data or connection errors, leading to incorrect fault isolation.
- Quick Fix: Connect directly to the main trunk cable within 10ft of the main bus termination point.
Leaving Battery Power OnI’ve seen technicians drain batteries during storage by leaving the unit powered on. This leaves the tool useless during critical troubleshooting windows when fresh batteries aren’t immediately available.
- Field Rule: Always verify the LCD display is off before storing the unit in its case.
