GE IC660EBD110P | 115VAC 16-Circuit Discrete Input Electronics – Field Service Manual

Description

Hard-Numbers: Technical Specifications

• Product Type: Electronic Assembly Block (EBD Only) for IC660BBD110 16-Point Input Block

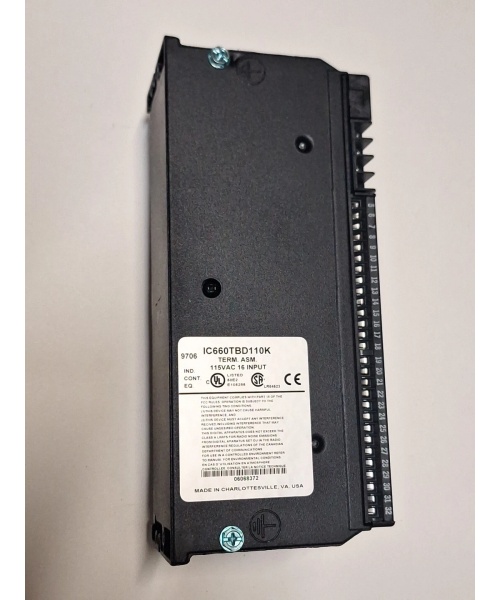

• Compatible Terminal Base: IC660TBD110 (required for complete assembly)
• Complete Assembly: IC660BBD110 (IC660EBD110 + IC660TBD110)
• Number of Inputs: 16 AC input circuits (arranged in 2 banks of 8 inputs each)
• Nominal Input Voltage: 115 VAC
• Input Voltage Range: 93–132 VAC
• Frequency: 47–63 Hz
• Input Type: Positive logic/sourcing inputs (receives current from AC input devices, returns on common)
• Input Thresholds:
  • ON/OFF Thresholds: Programmable from 25% to 85% of incoming line voltage (separate for each 8-input group)
  • Short Circuit Detection: Selectable at 10% to 90% of incoming line voltage (per individual input)
• Input Filter Time: Selectable from 10ms to 100ms in 10ms increments
• Input Processing Time: Approximately 1 ms (typical, plus selected filter delay)
• Input Impedance: 11.6 kΩ (typical)
• Preload Current: 9.9 mA at 115V (typical)
• Required Block Power: 80 mA maximum (drawn from same line power supplying inputs)
• Input to Ground Isolation: 1500 V
• Heat Dissipation: 28 W maximum (all 16 inputs active at full current)
• Communication: Genius bus protocol
• Supported Topology: Daisy-chain
• LED Indicators:
  • Unit OK (block health)
  • I/O Enabled (block operational status)
  • 16 individual channel input LEDs (one per input)
• Environmental Ratings:
  • Operating Temperature: 0–60°C (32–140°F)
  • Storage Temperature: –40–100°C (–40–212°F)
  • Relative Humidity: 5–95% non-condensing
• Mechanical Specifications:
  • Dimensions (H × W × D): 8.83 × 3.50 × 3.94 inches (22.44 × 8.89 × 10.00 cm)
  • Weight: Approximately 1.8 kg (4 lbs)
• RIUP Support: No (Removal and Insertion Under Power not supported; must be installed/deinstalled without power)
• Certifications: UL, CE, RoHS compliant

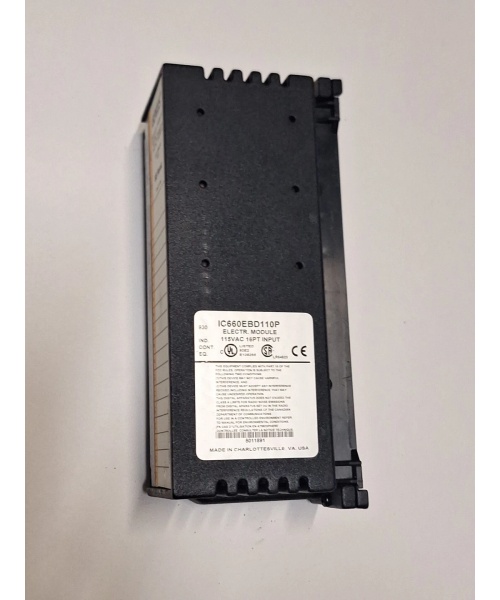

  GE IC660EBD110P

The Real-World Problem It Solves

• Control panels with limit switches, pushbuttons, and selector switches in manufacturing plants
• Material handling systems with proximity sensors for position detection
• Assembly lines with photoelectric sensors and safety interlocks
• Power generation facilities with high-voltage status monitoring
• Water treatment plants with pump/motor status indication

Hardware Architecture & Under-the-Hood Logic

1. Field devices (limit switches, pushbuttons, 2-wire/3-wire proximity switches) provide 115VAC input signals
2. Inputs arranged in 2 banks of 8 circuits each, with separate ON/OFF thresholds per group
3. Programmable thresholds allow compatibility with various input devices by setting activation points between 25-85% of line voltage
4. Configurable filter times (10-100ms) provide noise immunity and debounce functionality
5. Input processing circuitry signals processed (typically 1ms plus filter delay) and converted to digital signals
6. Diagnostics continuously monitor for open-wire and shorted-wire faults, configurable per input
7. Fault information reported to CPU via Genius bus and indicated via Unit OK LED
8. Individual input LEDs provide immediate status indication for each of the 16 channels
9. Control power derived from same line voltage supplying inputs (no separate power supply required)
10. Galvanic isolation (1500V) protects control system from high-voltage transients and noise
11. Data transmitted to PLC/PAC via Genius bus for processing and control logic execution


    GE IC660EBD110P

Field Service Pitfalls: What Rookies Get Wrong

• Field Rule: Always match revision letters when replacing electronics. Revision K or later requires newer style plastic door; verify compatibility before procurement.

• Field Rule: Calculate appropriate thresholds based on sensor specifications. Test with known input states to verify activation/deactivation points before full commissioning.

• Field Rule: Start with 10-20ms for general applications. Increase only for noisy environments or mechanical switches with bounce issues. Validate response time with timing analysis tools.

• Field Rule: IC660EBD110P is electronics assembly only—requires IC660TBD110 terminal base for field wiring connections. Never attempt direct field wiring to electronics assembly.

• Field Rule: This module does NOT support RIUP (Removal and Insertion Under Power). Always disconnect power before installation or removal. Verify zero voltage with multimeter before handling electronics.

• Field Rule: Verify sensor impedance matches input requirements (11.6 kΩ typical). Use external resistors if necessary for 2-wire proximity switch compatibility.
