Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | GE IC660BBD023 |
| Manufacturer | GE Fanuc |
| Product category | I/O Block |
| Operating Voltage | 24 VDC |
| Input Voltage Range | 18-30 VDC |
| Number of Points | 16 |
| Load Current | 2 Amps |
| Heat Dissipation | 68.8 Watts |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | 22.4 cm × 9.05 cm × 11.23 cm |
| Weight | 1.8 kg |
| Certifications | UL, CE, RoHS |

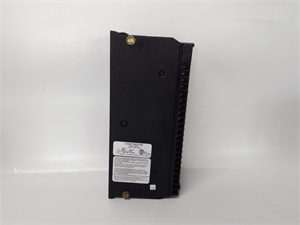

GE IC660BBD023
Product Introduction
The GE IC660BBD023 is a high-performance I/O block designed for industrial automation systems. It is part of the GE Fanuc Genius I/O series and is designed for 24 VDC applications. This module supports both discrete and analog functionality, making it versatile for various industrial environments.
Core Advantages and Technical Highlights
Versatile Configuration
The GE IC660BBD023 offers 16 circuits that can be configured as inputs, outputs, or tri-state inputs, providing flexibility to meet diverse application requirements without additional components. This adaptability ensures the module can interface with a wide range of sensors and actuators.
Integrated Power Supply
The module includes an integrated 24 VDC power supply, which simplifies installation by eliminating the need for separate power sources for each circuit. This feature reduces wiring complexity and enhances system reliability.
Advanced Diagnostics
The GE IC660BBD023 features comprehensive diagnostic capabilities, including short-circuit protection, over-temperature protection, and switch failure detection. These functions ensure stable operation and protect connected equipment from potential damage.
User-Friendly Design
The module is equipped with a monitoring port for easy setup and maintenance using a handheld programmer or a Windows-based PC. This connectivity allows for remote programming, monitoring, and troubleshooting, enhancing maintenance efficiency and reducing downtime.
GE IC660BBD023
Typical Application Scenarios
The GE IC660BBD023 is widely used in industrial automation fields, including:
-
Manufacturing: Controlling production lines and robotic systems.
-
Power Generation: Real-time monitoring and control of turbines and generating units.
-
Chemical Processing: Monitoring and controlling hazardous processes in chemical plants.
-
Water Treatment: Managing water treatment processes and monitoring environmental parameters.
Related Model Recommendations
-
GE IC660BBD021: A variant with different input/output configurations.
-
GE IC660BBD022: A variant with enhanced communication capabilities.
-
GE IC660BBD024: A variant with additional diagnostic features.
-
GE IC660BBD025: A variant with extended temperature range.
-
GE IC660BBD026: A variant with higher load current capacity.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the GE IC660BBD023, ensure the environment is free from excessive dust and moisture. Verify that the power supply matches the module’s requirements (24 VDC) and that the operating temperature range (0°C to +60°C) is suitable for the installation location.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the GE IC660BBD023. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
Service and Guarantee Commitment
The GE IC660BBD023 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. GE Fanuc is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
