Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC200CHS001 |
| Manufacturer | GE Fanuc |
| Product Category | I/O Carrier Module |
| Series | VersaMax |
| Number of Channels | 32 I/O points |
| Voltage Range | Up to 264 VAC |
| Current per Point | 2 A |
| Total Current | Up to 64 A |
| Terminal Type | 36 barrier-style terminals |
| Mounting | DIN rail (7.5 mm x 35 mm) |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (L×W×H) | 4.57 x 2.80 x 2.16 inches |
| Weight | 0.5 lbs |
| Certifications | CE, UL |
GE IC200CHS001
Product Introduction
The GE IC200CHS001 is a high-performance barrier-style I/O carrier module designed for the VersaMax series. It provides reliable backplane communications and field wiring connections for a single I/O module, making it an essential component in industrial automation systems.
Core Advantages and Technical Highlights
Robust Design: The IC200CHS001 features a vibration-resistant structure and IP54 protection against dust and moisture ingress, ensuring reliable operation in harsh industrial environments.

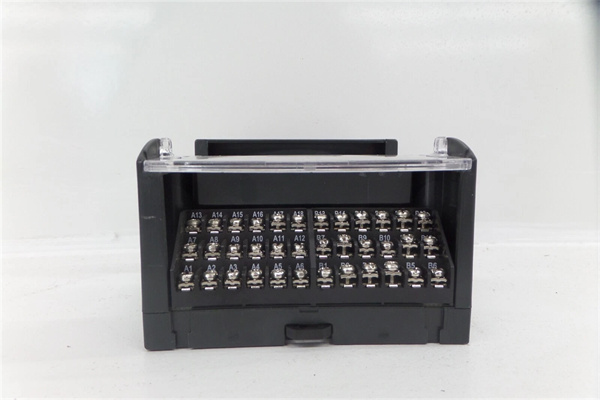

Secure Connections: Equipped with 36 barrier-style terminals, the module ensures secure and reliable connections between the I/O module and field wiring. This design reduces the risk of accidental short circuits and maintains separation between connections.
Flexible Mounting Options: The module can be mounted on a standard DIN rail or panel-mounted for enhanced stability in environments with significant mechanical vibration.
High Voltage Tolerance: The IC200CHS001 can handle voltage transients up to 300 VAC and operates with a maximum voltage rating of 264 VAC, making it suitable for applications with fluctuating power levels.
Easy Maintenance: The module features a hinged transparent door that protects the wiring terminals from contaminants while allowing easy visibility of the connections. It also includes a printed wiring card for quick access to vital information during maintenance.
Typical Application Scenarios
The GE IC200CHS001 is widely used in various industrial sectors, including:
-
Energy: Power generation and distribution systems.
-
Automotive: Robotic welding and assembly line control.
-
Food & Beverage: Packaging and processing systems.
-
Process Control: Chemical plants and water treatment facilities.
GE IC200CHS001
Related Model Recommendations
-
IC200CHS002: A box-style I/O carrier with similar functionality but different terminal types.
-
IC200CHS003: A connector-style I/O carrier offering additional configuration options.
-
IC200CHS005: A spring-style I/O carrier suitable for applications requiring compact design.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the environment meets the specified temperature and humidity requirements. Follow the installation manual carefully to ensure proper grounding and connection. Always disconnect the power source before starting the installation process to avoid electrical shock.
Maintenance Suggestions: Regularly inspect the module for signs of damage or wear. Clean the module periodically to remove dust and debris, which can affect performance and longevity. If any issues are detected, consult the troubleshooting guide or contact a professional for assistance.
Service and Guarantee Commitment
The GE IC200CHS001 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. GE Fanuc offers technical support and service to assist with installation, troubleshooting, and maintenance.
