GE H201TI-CE-X2-V1-VC0-H1-L1-F1 | Transformer DGA Gas Monitor – Field Service Notes

  • Model: H201TI-CE-X2-V1-VC0-H1-L1-F1
  • Alt. P/N: Hydran 201Ti Mark IV CE Version
  • Product Series: GE Grid Solutions Hydran DGA Monitoring
  • Hardware Type: Continuous Dissolved Gas-in-Oil Analysis (DGA) Intelligent Transmitter
  • Key Feature: Fuel cell composite gas sensor with 100% H₂ sensitivity + 4-gas detection capability
  • Primary Field Use: Transformer fault early warning system detecting H₂, CO, C₂H₂, C₂H₄ for predictive maintenance in power utilities and industrial plants
Get a Quote
In Stock
Manufacturer:
Part number: GE H201TI-CE-X2-V1-VC0-H1-L1-F1
Our extensive catalogue, including : GE H201TI-CE-X2-V1-VC0-H1-L1-F1 , is available now for dispatch to the worldwide. Brand:

Description

Hard-Numbers: Technical Specifications

  • Measurement Range: 0-2000 ppm (volume/volume, H₂ equivalent)
  • Measurement Accuracy: ±10% of reading ±25 ppm (H₂ equivalent)
  • Sensor Response Time: 10 minutes (90% of step change)
  • Gas Sensitivity (Relative): H₂: 100%, CO: 15±4%, C₂H₂: 8±2%, C₂H₄: 1.5±0.5%
  • Analog Output: 4-20mA for 0-2000 ppm range, 10V load max, isolated 2000V AC RMS
  • Communication Protocols: Modbus RTU, Hydran proprietary protocol over RS-485
  • Communication Interface: USB Type B (local), RS-485 terminal block (isolated 3000V)
  • Baud Rate: 1,200 / 2,400 / 4,800 / 9,600 bps selectable
  • Alarm Outputs: 3 dry contact relays (Type C SPDT), 3A @250V AC, 3A @30V DC
  • Power Requirements: 90-132V AC or 180-264V AC switchable, 47-63Hz, 475VA max
  • Operating Temperature (Ambient): -40°C to +55°C
  • Oil Temperature Range: -40°C to +105°C (+221°F with finned heat sink adapter option)
  • Oil Pressure Range: 0-700 kPa (0-100 psi), vacuum-resistant sensor
  • Enclosure Rating: NEMA 4X (IP66) certified
  • Isolation Rating: 2000V AC RMS (analog output), 3000V AC RMS (RS-485)
  • Dimensions: 178mm diameter × 180mm length (7″ × 7-1/8″)
  • Installed Weight: 5.6 kg (12 lb), Shipping Weight: 6.9 kg (15 lb)
  • Display: Backlit LCD, 2 lines × 16 characters with 6-key keypad
  • Mounting: Direct mount on 1″, 1.5″, or 2″ female NPT valve
  • Certifications: CE certified (compliant with EU directives)

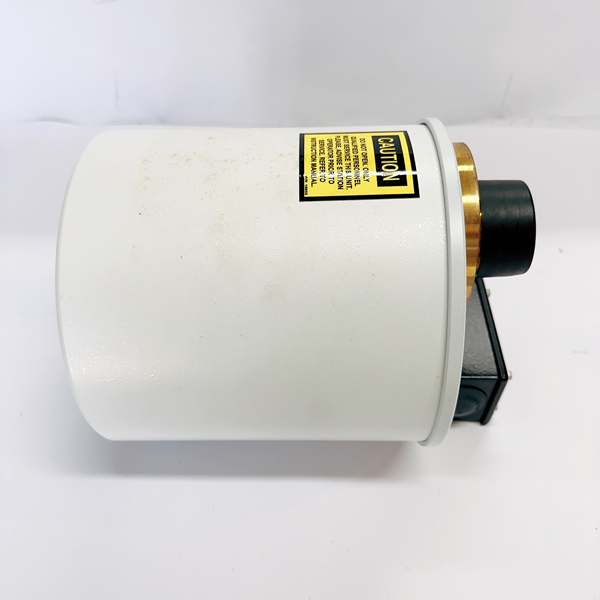

GE H201Ti

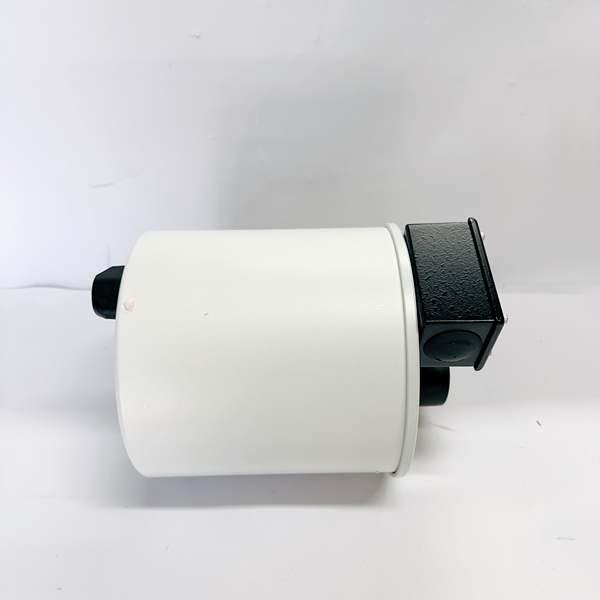

GE H201Ti

The Real-World Problem It Solves

Transformers fail catastrophically when dissolved gases in oil reach dangerous levels—hydrogen indicates general faults, CO signals overheated paper insulation, acetylene means arcing, and ethylene points to overheated oil. This unit bolts directly onto the transformer valve, continuously sampling oil without pumps or piping, detecting these gases in real-time and alerting operators before expensive transformer failures occur.
Where you’ll typically find it:
  • Utility substations monitoring critical power transformers for predictive maintenance and IEEE C57.104 compliance
  • Industrial facilities with large distribution transformers in steel mills, refineries, chemical plants where offline oil sampling is impractical
  • Wind farm step-up transformers and hydroelectric plant generators requiring remote monitoring without frequent site visits
Bottom line: This is the first line of defense for transformer health monitoring—no pumps, no piping, just bolt it on and get real-time fault gas data that catches failures months before they burn down the asset.

Hardware Architecture & Under-the-Hood Logic

The H201TI is a self-contained DGA transmitter mounted directly on a transformer oil valve with its own microprocessor and isolated I/O subsystems. Inside the NEMA 4X cylindrical enclosure, a fuel cell sensor with a gas-permeable membrane contacts transformer oil through a flooded manifold—gases dissolve through the membrane and react with the fuel cell, generating microvolt-level electrical signals proportional to gas concentration.
  1. Fuel Cell Sensor Assembly: Gas-permeable membrane allows H₂, CO, C₂H₂, and C₂H₄ to pass from oil into the electrochemical cell where gases react with oxygen, producing electrical signals measured in microvolts
  2. Signal Conditioning Circuit: Microvolt signals split into two scales, amplified through analog front-end with temperature compensation, converted to digital via 16-bit ADC
  3. Microprocessor Core: 32-bit CPU runs real-time OS, executes sensor calibration algorithms, calculates composite “Hydran gas value” using relative sensitivity factors (H₂×100% + CO×15% + C₂H₂×8% + C₂H₄×1.5%), manages data logging and self-test routines
  4. Temperature Control System: Thermistors in sensor body and 325W heating plate measure temperature; time-proportioning controller maintains sensor at 25-45°C setpoint via PWM heating control, ensuring measurement accuracy across ambient extremes
  5. Memory System: Nonvolatile memory retains calibration parameters, historic data (hourly/daily trends), and configuration during power loss or battery replacement; 3V lithium/manganese dioxide battery (950mAh) provides backup
  6. Communication Subsystem: Isolated RS-485 transceiver (3000V opto-isolated) supports Modbus RTU and proprietary Hydran protocol for supervisory link to H201Ci controllers or remote SCADA; USB Type B for local laptop configuration
  7. Alarm Relay Module: Three SPDT (Type C) relays with NO/NC contacts rated 3A@250V AC, 3A@30V DC: Gas Hi alarm, Gas Hi-Hi alarm, Service/Fail alarm (power loss, sensor fault, communication failure)
  8. Analog Output Stage: Isolated 4-20mA current loop output proportional to 0-2000 ppm gas concentration, drives up to 10V load impedance, 2000V AC RMS isolation prevents ground loops
  9. Self-Test Diagnostics: Automatic 15-day self-test cycle checks battery voltage, sensor status, power supply integrity, communication health; triggers service alarm if fault detected
  10. Enclosure Thermal Management: 325W heating plate plus convection cooling maintains sensor and electronics within 15-65°C range; thermostat limits heating plate to 100°C maximum to prevent thermal damage

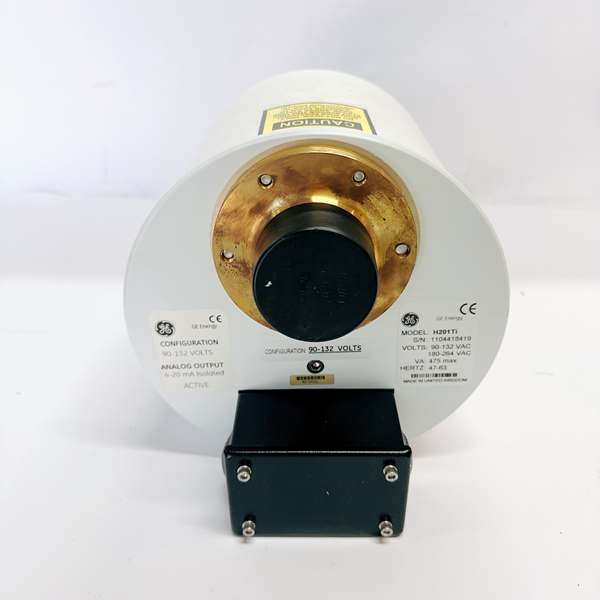

GE H201Ti

GE H201Ti

Field Service Pitfalls: What Rookies Get Wrong

Mounting Orientation and Location Errors
Techs install the H201TI vertically or at an angle on the transformer valve, causing gas bubbles to collect and creating measurement errors. They also install on dead legs where oil doesn’t circulate.
  • Field Rule: Mount horizontally only, with the bleed screw at 12 o’clock position (top). Install on active oil circulation points—main oil valve, not sampling valve or drain. Verify oil flows freely past the sensor by opening the valve briefly during installation. If strong vibration exists, install supporting bracket. Document installation location with photos.
RS-485 Network Termination and Grounding
Juniors daisy-chain multiple H201TI units without proper termination, causing communication errors and data corruption. They also ground the shield at both ends, creating ground loops.
  • Field Rule: Install 120Ω termination resistor at both ends of the RS-485 bus only. Maximum cable length for all cables combined is 1200m. Use twisted pair cable (AWG #16 or #18) with overall shield. Ground the shield at the controller end only—leave the far end floating. Verify communication quality by monitoring error counters in the H201TI diagnostics menu. If errors accumulate, check cable length, termination, and shield grounding.
Sensor Heating Failure in Cold Climates
In cold environments (-40°C ambient), the 325W heating plate can’t maintain sensor temperature if oil temperature drops too low. Techs ignore the finned heat sink adapter requirement.
  • Field Rule: For ambient temperatures below -20°C or oil temperatures below -30°C, order the finned heat sink adapter option (1.5″ NPT). This increases heat dissipation efficiency and allows operation to -40°C ambient. Verify sensor temperature stays within 15-65°C range using internal diagnostics—check “SENSOR TEMP” display in menu. If sensor temp drops below 15°C, measurements drift. In extreme cold, consider an external enclosure heater or relocate to warmer location.
Analog Output Loading Issues
The 4-20mA output drives a maximum 10V load. Techs connect multiple receivers or long cable runs, exceeding load impedance and causing output saturation or erratic readings.
  • Field Rule: Calculate total loop resistance: R = V/I. With 10V max at 20mA, maximum load is 500Ω. If connecting multiple devices, ensure total resistance stays below 500Ω. For long cable runs, measure actual loop resistance with multimeter—use larger gauge wire if needed. Test output by injecting known gas concentrations and verifying 4-20mA corresponds correctly. Use isolated receivers to prevent ground loops.
Battery Replacement Data Loss
When replacing the 3V lithium battery, techs disconnect power first, which erases sensor parameters and calibration data stored in volatile memory.
  • Field Rule: Before battery replacement, back up all configuration parameters using Hydran Host software via USB. Replace battery with power connected if possible—this preserves volatile data. If power must be disconnected, be prepared to re-enter sensor parameters from documentation. New battery wires connect to W8 (red, +) and W9 (blue, -) on the CPU module PCB. Use exact replacement type: 3V lithium/manganese dioxide, 950mAh capacity. Document battery replacement date.
Oil Valve Closed Condition Ignorance
When transformer maintenance requires closing the oil valve, techs forget to disable the H201TI or don’t understand how it responds to zero oil flow.
  • Field Rule: The H201TI detects closed oil valve conditions and triggers a Service alarm (FAIL condition). If valve must be closed temporarily, you can disable valve monitoring in the menu or accept the alarm. For extended outages, consider powering down the unit. When reopening the valve, verify oil flow by checking pressure and purging air from the sensor using the bleed screw. Document valve closure events in maintenance records.
