Description
Hard-Numbers: Technical Specifications
- Functional Acronym: TCRA (Turbine Control Relay Assembly)
- Functional Revision 1: A (First functional revision)
- Functional Revision 2: C (Second functional revision)
- Artwork Revision: C (PCB artwork revision)
- Core Function: Relay output control and isolation
- Number of Relays: 30 plug-in relays
- Relay Contact Rating: 0.5 amp per relay
- Contact Type: Gold-plated contacts
- Mechanical Operations: 500,000+ operations lifecycle
- Isolation Protection: 5kV isolation
- 34-Pin Connectors: 4 (JOR, JOS, JOT, JO)
- 12-Pin Connectors: 4 (JS3, JS4, JS5, JS6)
- Operating Voltage: 24 V DC
- Operating Current: 100 mA
- Dimensions: 10.2 × 7.5 × 1.2 inches (259 × 191 × 30 mm)
- Weight: 3 pounds (1.36 kg)
- Storage Temperature: -40°F to 185°F (-40°C to +85°C)
- Operating Temperature: -40°F to 150°F (-40°C to +65°C)
- Humidity Range: 10% to 95% (non-condensing)
- PCB Coating: Normal coating (non-conformal)
- Approvals: UL, CSA
- SIL Compliance: SIL2-compliant design
- MTBF: >100,000 hours

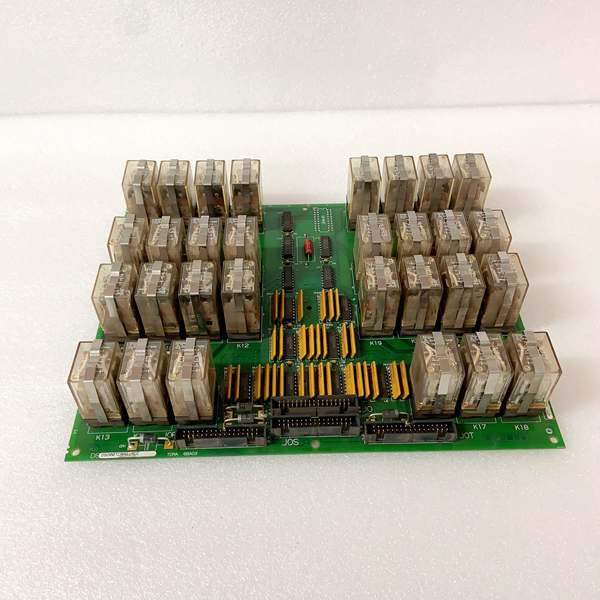

GE DS200TCRAG1ACC
The Real-World Problem It Solves
The Mark V control system in turbine applications requires reliable isolation and control of external devices through relay outputs. The DS200TCRAG1ACC (Relay Output Board) addresses this need by providing 30 individual relay outputs with high-voltage isolation (5kV) and gold-plated contacts for long-term reliability. This board solves the challenge of interfacing sensitive turbine control logic with external field devices such as solenoids, alarms, indicator lights, and auxiliary equipment while maintaining electrical isolation to protect control system integrity. The plug-in relay design allows for easy replacement of individual relays without replacing the entire board, reducing maintenance costs and downtime. The board’s multiple connector configurations (4 × 34-pin and 4 × 12-pin) provide flexible interfacing options for various signal types and routing requirements. Without this dedicated relay output capability, the Mark V system would require additional external relay racks or interface modules, increasing system complexity, cost, and potential failure points. The SIL2-compliant design ensures safety-critical applications meet industry reliability standards.
Where you’ll typically find it:
- Mark V LM turbine control racks
- Relay output cabinets
- Gas turbine control systems
- Power plant control systems
- Industrial automation applications
- Emergency shutdown circuits
Bottom line: Relay output board—providing 30 isolated relay outputs with gold-plated contacts for reliable control of external devices in turbine control systems.
Hardware Architecture & Under-the-Hood Logic

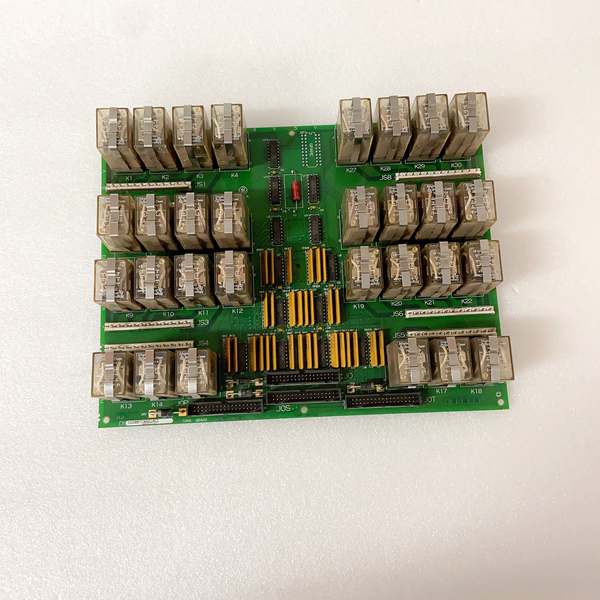

The DS200TCRAG1ACC (Functional Revision A/C, Artwork Revision C) is the Relay Output Board for the Mark V control system, serving as the isolation and interface layer between control logic and external field devices. The board houses 30 plug-in relays arranged in a compact configuration, each relay providing independent electrical isolation between control inputs and output contacts. The relays feature gold-plated contacts to ensure reliable switching operation over extended lifecycles (500,000+ mechanical operations). The board receives control signals from the Mark V processors through its connectors and drives the relay coils accordingly. Each relay provides normally open (NO) and/or normally closed (NC) contacts for flexible circuit configuration. The 5kV isolation rating protects the control system from voltage spikes, ground loops, and transients present in field wiring. The board includes four 34-pin connectors (JOR, JOS, JOT, JO) and four 12-pin connectors (JS3, JS4, JS5, JS6) to interface with various terminal boards and external devices. The normal PCB coating provides protection against environmental contaminants while maintaining adequate thermal dissipation for relay heat generation. The board’s design prioritizes SIL2 compliance for safety-critical applications, with redundant isolation paths and fault-tolerant architecture.
Signal flow:
- Control signals from Mark V processors received via 34-pin connectors
- Signal conditioning circuits process input commands
- Relay driver circuits amplify control signals
- Relay coils energized/de-energized based on control logic
- Electromechanical relays switch contacts
- Gold-plated contacts open/close for output circuits
- 5kV isolation barrier separates control and output sides
- External field devices controlled through output contacts
- Contact status feedback monitored (optional)
- Relay coil drive current limited for protection
- Snubber circuits suppress contact arcing
- LED indicators show relay status (board-dependent)
- Power distribution provides 24 V DC for relay coils
- Ground isolation prevents ground loops
- Environmental protection coating prevents contamination

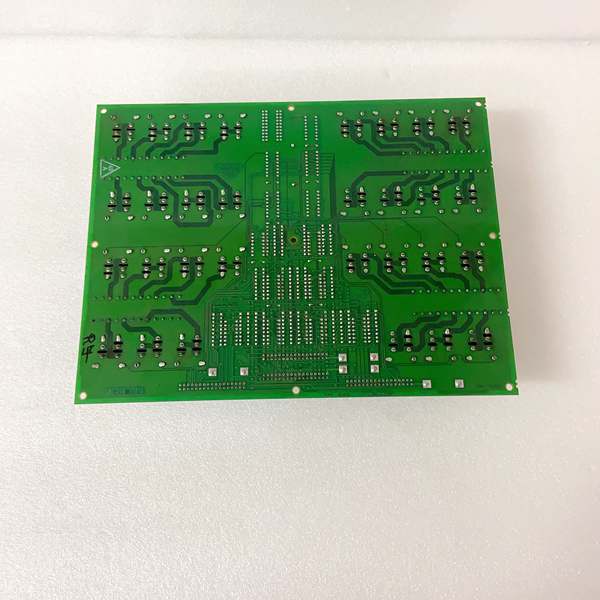

GE DS200TCRAG1ACC
Field Service Pitfalls: What Rookies Get Wrong
Mixing up connector IDs causes miswiringIncorrect cable connection to wrong connectors. I’ve seen technicians connecting cables to wrong connector IDs (JOR, JOS, JOT, JO vs JS3, JS4, JS5, JS6), causing complete system malfunction.
- Field Rule: Always verify connector IDs before connecting cables. JOR, JOS, JOT, and JO are 34-pin connectors; JS3, JS4, JS5, and JS6 are 12-pin connectors. Label cables during removal. Never rely on memory—document all connections before disconnection.
Exceeding relay contact rating causes premature failureOverloading relay contacts beyond 0.5 amp rating. I’ve seen technicians driving inductive loads directly, causing contact welding and relay failure.
- Field Rule: Verify load current does not exceed 0.5 amp per relay contact. Use intermediate relays or contactors for higher current loads. Consider inrush current for inductive loads. Never exceed contact rating—calculate load current first.
Improper relay replacement causes intermittent operationUsing wrong relay type or failing to seat relays properly. I’ve seen technicians using non-compatible relays or not seating them fully, causing intermittent connections.
- Field Rule: Use only OEM-specified relay replacements. Verify relay part numbers match specifications. Ensure relays are fully seated in sockets. Test relay operation after replacement. Never substitute relay types—use exact replacements.
Neglecting isolation causes control system damageBypassing isolation or connecting grounds incorrectly. I’ve seen technicians creating ground loops across isolation barriers, damaging control system inputs.
- Field Rule: Maintain 5kV isolation integrity. Never connect control and output grounds together. Verify isolation with megohmmeter during maintenance. Document isolation points. Never compromise isolation—protect control system integrity.
Overlooking contact arcing causes contact degradationNot using snubber circuits for inductive loads. I’ve seen technicians connecting solenoids directly, causing contact arcing and premature contact failure.
- Field Rule: Use appropriate snubber circuits for inductive loads. Install RC networks or diode clamps across contacts. Monitor contact condition during maintenance. Never connect inductive loads without protection—arcing destroys contacts.
Forgetting to label cables during replacement causes confusionNot documenting cable connections before removal. I’ve seen technicians removing cables without labeling, struggling to reconnect correctly.
- Field Rule: Label all cables before disconnecting. Document connector IDs and pin assignments. Create connection diagrams for reference. Never disconnect without labeling—proper labeling prevents errors.
Ignoring gold-plated contact handling causes contaminationTouching gold-plated contacts with bare hands. I’ve seen technicians contaminating contact surfaces with oils and dirt, increasing contact resistance.
- Field Rule: Never touch gold-plated contacts with bare hands. Use clean, dry tools for contact handling. Inspect contacts for contamination. Clean contacts with appropriate methods if needed. Never handle contacts directly—oils cause increased resistance.
Skipping relay cycle counting causes unexpected failuresNot tracking relay operation cycles. I’ve seen technicians missing end-of-life relay replacement, causing unexpected failures during operation.
- Field Rule: Track relay operation cycles for safety-critical applications. Document cumulative cycle counts. Plan preventive relay replacements before end-of-life (500,000 operations). Never ignore cycle counts—predictive replacement prevents failures.
Improper board storage causes relay degradationStoring boards in humid or corrosive environments. I’ve seen technicians storing boards without protection, causing relay contact corrosion.
- Field Rule: Store boards in climate-controlled environments. Use anti-static bags with desiccant. Maintain humidity below 60%. Inspect relays before installation after storage. Never store in harsh conditions—environmental protection preserves reliability.
Overloading board power supply causes brownoutsExceeding 24 V DC supply current capacity. I’ve seen technicians activating too many relays simultaneously, causing supply voltage drops.
- Field Rule: Calculate total coil current for simultaneous relay activation. Verify 24 V DC supply capacity (100 mA rating). Stagger relay activation if needed. Never exceed supply current—brownouts cause unreliable operation.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability. As a specialized Relay Output Board with multiple functional revisions (A/C) and artwork revision (C), availability may be limited. The 30 plug-in relays are consumable components requiring periodic replacement throughout the board’s lifecycle. This board is designed for SIL2-compliant safety applications, requiring careful verification of compatibility with specific turbine control system configurations. Proper connector identification and cable routing are essential for reliable operation. Due to legacy Mark V system status, refurbished units with replaced relays may be commonly available. Individual relay replacement kits are recommended for long-term maintenance planning.
