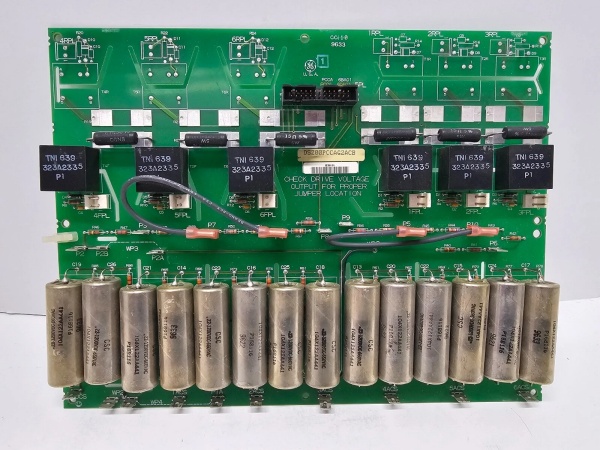

GE DS200PCCAG2ACB | Power Connect Card – Mark V G2 Field Service Notes

  • Model: DS200PCCAG2ACB
  • Product Series: GE Mark V / EX2000
  • Hardware Type: Power Connect Card (PCCA) – Group 2
  • Key Feature: Non-regenerative power interface with 240-700V armature voltage range
  • Primary Field Use: Transmits gate drive signals to SCR bridge in mid-voltage non-regenerative drive applications.
Get a Quote
In Stock
Manufacturer:
Part number: GE DS200PCCAG2ACB
Our extensive catalogue, including : GE DS200PCCAG2ACB , is available now for dispatch to the worldwide. Brand:

Description

Hard-Numbers: Technical Specifications

  • Functional Acronym: PCCA
  • Group Number: G2
  • Armature Voltage Range: 240 to 700 volts DC (non-regenerative)
  • Power Conversion Type: Non-regenerative (unidirectional power flow)
  • Fuse Type: Line fuses (not leg fuses—G1/G2/G7/G8 use line fuses)
  • Snubber Configuration: Both AC and DC snubbers (G2 group includes both types)
  • Frame Compatibility: C or G style frame reinforcements
  • Power Supply Board: DCFB compatible
  • Bus Transformer: Separate or common bus transformer support
  • Configuration Jumpers: 4 wire jumpers (JP1, JP2, WP3, WP4)
  • AC Voltage Rating: ≤600 V rms AC
  • Connectors: Multiple plug connectors for gate pulses (1FPL-6FPL, 1RPL-6RPL) and 5PL for power supply
  • PCB Coating: Normal coating (non-conformal)
  • Manual: GEI-100161 (PCCA Power Connect Card Manual)
  • Revisions: Functional Revision A, Functional Revision 2 (C), Artwork Revision B
    DS200PCCAG2ACB

    DS200PCCAG2ACB

The Real-World Problem It Solves

Mid-voltage drive systems requiring unidirectional power flow need robust power interfaces between control electronics and SCR bridges. The DS200PCCAG2ACB provides the critical gate drive signal isolation and distribution for non-regenerative applications where power flows in one direction only. Its G2 group classification tailors it for 240-700V applications commonly found in standard motor drives and pump applications where regenerative braking is not required.
Where you’ll typically find it:
  • Standard motor drive systems in industrial applications
  • Pump and fan drive applications
  • Material handling conveyor systems
  • EX2000 excitation control cabinets (non-regenerative configurations)
Bottom line: Non-regenerative power interface for SCR gate control in 240-700V applications.

Hardware Architecture & Under-the-Hood Logic

The DS200PCCAG2ACB serves as the interface between the drive control circuitry and the SCR power bridge, transmitting gate drive pulses through pulse transformers for isolation. This Group 2 variant is configured for non-regenerative operation with both AC and DC snubber networks to protect SCRs from voltage spikes during unidirectional power flow. The board uses line fuses (not leg fuses) for overcurrent protection and supports both separate and common bus transformers. Four configurable jumpers allow site-specific adjustments to capacitor connections and voltage feedback circuitry. The board lacks onboard diagnostic components like LEDs or test points, relying on system-level diagnostics for fault detection.
Signal flow:
  1. Gate drive control signals received from SDCC drive control board
  2. Signals routed through pulse transformers for galvanic isolation
  3. Isolated gate pulses transmitted via 1FPL-6FPL connectors to forward SCR bridge
  4. No reverse gate pulse transmission (non-regenerative operation—1RPL-6RPL not used or configured differently)
  5. Power supply communication handled through 5PL connector to DCFB power supply board
  6. Line fuses provide overcurrent protection on input power lines
  7. AC and DC snubber networks suppress voltage spikes across SCR devices
  8. Jumpers JP1 and JP2 configure system voltage and stab terminal connections (P3-P10)
  9. Jumpers WP3 and WP4 configure snubber capacitor connections relative to voltage feedback channel
  10. Voltage feedback signals monitored for bridge status
  11. No onboard LEDs, fuses, or test points—fault detection through system-level monitoring
  12. Board mounted on board carrier behind drive control board
    DS200PCCAG2ACB

    DS200PCCAG2ACB

Field Service Pitfalls: What Rookies Get Wrong

Confusing line fuses with leg fuses causes protection failuresWrong fuse replacement type. I’ve seen technicians replacing blown fuses with leg fuses instead of line fuses, compromising the protection scheme and potentially causing SCR damage.
  • Field Rule: G2 boards use line fuses (not leg fuses). G1, G2, G7, and G8 groups have line fuses while G5, G6, G9, and G10 have leg fuses. Verify the exact fuse rating and type for each position. Never substitute leg fuses for line fuses—the protection characteristics differ significantly. Document all fuse ratings during installation. Check line fuses after any overcurrent event.
Misconfiguring WP3/WP4 jumpers causes snubber isolation issuesWrong snubber capacitor connections. I’ve seen technicians setting WP3 and WP4 incorrectly, disconnecting snubber capacitors from the voltage feedback reference point and leaving SCRs vulnerable to voltage spikes.
  • Field Rule: WP3 connects P2A to P2B, WP4 connects P1A to P1B. These jumpers determine whether snubber capacitors connect to the same point on the power bridge as the voltage feedback channel. Photograph jumper positions before removal. Never assume default settings match your configuration. Verify snubber connections with the manual based on your group number and system voltage.
Ignoring non-regenerative polarity causes SCR firing failuresIncorrect gate pulse configuration. I’ve seen technicians attempting to configure reverse pulse paths on G2 boards, wasting time and causing confusion since G2 boards are designed for unidirectional operation.
  • Field Rule: G2 boards are non-regenerative—don’t expect or configure reverse pulse paths. Verify the 1FPL through 6FPL forward gate pulse connections are correct for your SCR bridge configuration. Never attempt to install or configure 1RPL connectors for reverse operation on G2 boards. Understand your system’s power conversion type before installation.
Assuming G2 compatibility with other groups causes system mismatchWrong group substitution. I’ve seen technicians using a G2 board to replace a G1 or G7 PCCA, resulting in voltage and fuse configuration incompatibilities.
  • Field Rule: Match the exact group number when replacing PCCA boards. The G2 designation indicates specific voltage range (240-700V), non-regenerative operation, line fuse configuration, and snubber types that differ from other groups. Cross-reference the complete part number including the group designation. Never assume group interchangeability even if the connectors look similar.
Forgetting DCFB power supply compatibility causes communication failuresWrong power supply board interface. I’ve seen technicians connecting G2 boards to incompatible power supply boards, causing communication faults through the 5PL connector.
  • Field Rule: Verify the system uses a DCFB-compatible power supply board. G2 boards require specific power supply characteristics for proper communication through the 5PL connector. Check the power supply board part number against the system documentation. Never assume all Mark V power supply boards are compatible with all PCCA groups.
Misinterpreting lack of onboard diagnostics as board failureNo LEDs or test points confuse troubleshooting. I’ve seen technicians replacing good boards because they couldn’t diagnose them directly, not realizing PCCA boards rely on system-level diagnostics.
  • Field Rule: Use the drive control panel diagnostics to identify PCCA-related faults. The board has no LEDs, test points, or switches for direct troubleshooting. System diagnostics can identify gate pulse issues, SCR firing problems, snubber faults, and communication issues through the 5PL connector. Run full system diagnostics before replacing any PCCA board.
Overlooking snubber capacitor aging causes voltage spike damageDegraded snubber capacitors fail to suppress spikes. I’ve seen technicians replacing PCCA boards without inspecting snubber capacitors, allowing voltage spikes to damage new SCRs.
  • Field Rule: Inspect all snubber capacitors for bulging, leakage, or drying during board replacement. Capacitors age faster in high-temperature environments. Test capacitance values if equipment is available. Replace suspect capacitors preventively during board swaps. Never assume capacitors are good just because the old board was working.
Incorrect torque on stab terminals causes voltage feedback errorsLoose P1-P10 stab connections. I’ve seen technicians failing to properly torque the stab terminals, causing intermittent voltage feedback signals and erratic SCR firing.
  • Field Rule: Use a torque screwdriver to secure stab terminals to specification. Loose connections cause voltage feedback noise and inaccurate firing timing. Check all P1-P10 terminal connections after installation. Verify torque values match the manual requirements. Never rely on finger-tight connections for power electronics.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
