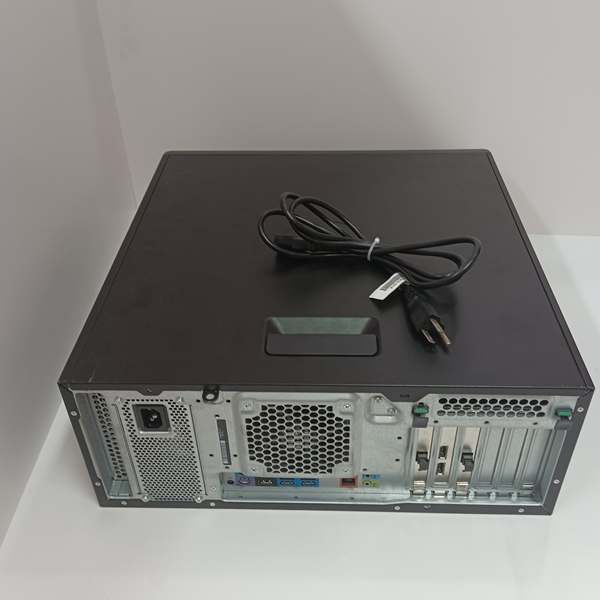

Description
Hard-Numbers: Technical Specifications
-
Measurement Range: 0-100 kPa to 0-100 MPa (configurable span)
-
Accuracy: ±0.05% to ±0.25% of calibrated span
-
Output Signal: 4-20 mA analog with HART 7 digital overlay, optional 0-10 V
-
Supply Voltage: 12-48 VDC (24 VDC nominal), two-wire loop-powered
-
Process Connection: 1/4 inch NPT standard (optional flanges available)
-
Operating Temperature: -40°C to +85°C ambient, -40°C to +125°C process
-
Protection Rating: IP67 (submersible to 1m), NEMA 4X
-
Housing Material: 316 stainless steel with corrosion-resistant epoxy finish
-
Sensor Type: Ceramic capacitive cell with welded isolation diaphragm
-
Display: LCD with local pushbutton configuration (3-button interface)
-
Communication: HART 7 protocol, FoxCom proprietary, Foundation Fieldbus optional
- Response Time: <100 ms (configurable damping 0-32 seconds)
The Real-World Problem It Solves
You know the drill: a bubbling reactor loses pressure indication at 2 AM because a diaphragm seal failed on a legacy pneumatic transmitter, or a compressor anti-surge loop drifts out of calibration costing $50K in lost production. The H929049B0500 eliminates these headaches with solid-state ceramic capacitive technology—no fill fluid to leak, no mechanical linkages to wear, and onboard diagnostics that tell you when the sensor is degrading before it fails.
Where you’ll typically find it:
-
Compressor suction and discharge pressure monitoring in natural gas processing
-
Reactor vessel pressure control in polymer and chemical plants
-
Boiler drum level calculation via differential pressure (when paired with low-side reference)
-
Safety instrumented systems (SIS) for high-pressure trip applications
Bottom line: It delivers stable 4-20 mA signals in vibrating, corrosive environments while giving you HART access to secondary variables (sensor temperature, electronics temp) for predictive maintenance.
Hardware Architecture & Under-the-Hood Logic
The H929049B0500 is a loop-powered smart transmitter that functions as a standalone pressure-to-current converter with embedded intelligence. The ceramic capacitive sensor deflects under pressure, changing capacitance values that the onboard microprocessor converts to digital readings. All signal conditioning, linearization, and temperature compensation happen inside the housing.
Signal flow and processing logic:
-
Pressure Sensing: Process pressure acts on the 316SS isolation diaphragm, transferring force to a ceramic capacitive cell that changes capacitance proportionally to applied pressure
-
Signal Conversion: The sensor capacitance change is converted to a digital value by a high-resolution A/D converter (16-bit resolution)
-
Compensation: The microprocessor applies temperature correction algorithms using data from an onboard RTD, compensating for thermal effects on the ceramic cell and electronics
-
Output Generation: The corrected digital value is converted to a 4-20 mA analog signal via D/A converter, while simultaneously broadcasting HART digital data at 1200 baud on the same two wires
-
Local Interface: The LCD displays primary variable, engineering units, and alarm status; three pushbuttons allow local ranging, damping adjustment, and loop test without a handheld configurator
Field Service Pitfalls: What Rookies Get Wrong
Ignoring the Low-Flow Cutoff Setting Many H929049B0500 units get installed on pulsating pump discharge lines where the default damping (2 seconds) causes erratic readings. Rookies crank up the damping to 10+ seconds to smooth the display, but this masks real pressure spikes that could indicate cavitation.
Field Rule: Set damping between 0.5-2 seconds for fast loops (compressor anti-surge) and 4-8 seconds for slow processes (tank level). Never exceed the process control time constant.
Improper NPT Thread Sealing The 1/4 inch NPT connection requires proper thread sealant, but rookies either use Teflon tape that shreds into the process or overtighten and crack the stainless housing. The ceramic sensor is robust, but mechanical shock from over-torquing causes zero shift.
Quick Fix: Use anaerobic thread sealant (like Loctite 545) instead of tape. Torque to 25-30 Nm (18-22 ft-lbs) maximum. If you see zero drift after installation, the sensor likely took mechanical stress—replace the unit and check your wrench technique.
Confusing HART Polling Address with Loop Current When configuring via HART, changing the polling address to anything other than “0” switches the transmitter to multidrop mode, fixing the current at 4 mA regardless of pressure. The DCS sees a dead signal and operators panic.
Field Rule: Always verify the HART address is set to “0” for point-to-point 4-20 mA operation. If you need multidrop (rare in modern systems), ensure the DCS analog input card supports digital communication and the control strategy accounts for fixed 4 mA current.
