Description
Hard-Numbers: Technical Specifications
- Series: I/A Series Fieldbus
- Output Channels: 8 (independent, isolated)
- Output Range: 4-20mA (1-21mA extended range)
- Accuracy: ±0.1% of span
- Resolution: 16-bit
- Load Resistance: 0-750Ω per channel
- Isolation Rating: 1500 VDC channel-to-channel, 1500 VDC channel-to-system
- Power Supply: 24V DC fieldbus power
- Power Draw: 15W typical
- Operating Temperature: -40°C to +70°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Certifications: CE, UL, CSA, FM, ATEX, IECEx

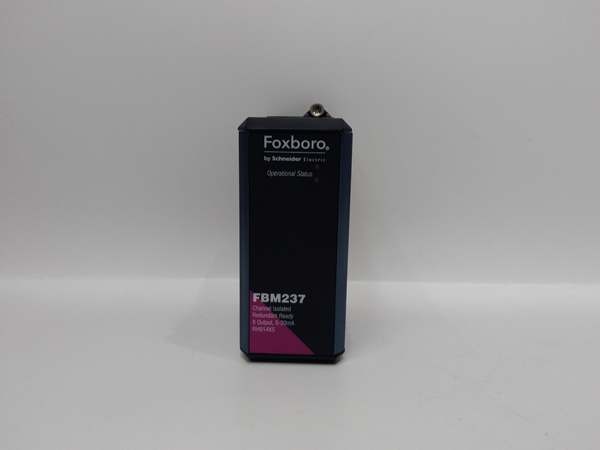

FOXBORO FBM237
The Real-World Problem It Solves
Control valves and actuators need precise analog current signals for accurate positioning. Non-isolated output modules let ground loops and stray currents corrupt output signals, causing valve position errors and process instability. The FBM237 delivers isolated 4-20mA outputs, ensuring precise analog control while preventing ground loops from affecting valve positioning accuracy.
Where you’ll typically find it:
- Control valve positioning in chemical process plants
- Flow control loop outputs in refinery operations
- Actuator control in power generation and utility systems
- Variable speed drive setpoints in industrial processes
Bottom line: It provides reliable, isolated analog output for precision process control.
Hardware Architecture & Under-the-Hood Logic
This analog output module contains isolated D/A converters and a microprocessor for signal processing and diagnostics. Each channel has independent isolation barriers, preventing ground potential differences between field devices from affecting output signals. The module communicates over the Foxboro fieldbus to the I/A Series control system.
- The I/A Series controller sends output setpoints to the FBM237 via the fieldbus.
- The microprocessor validates setpoints and routes them to the appropriate channel processors.
- Isolated D/A converters convert digital setpoints to analog current signals (4-20mA).
- Output drivers deliver current to field devices through terminal connections.
- Diagnostics circuits monitor output current, open circuits, short circuits, and wiring faults per channel.
- Watchdog timers monitor microprocessor health, triggering fault alerts and driving outputs to safe state on failure.

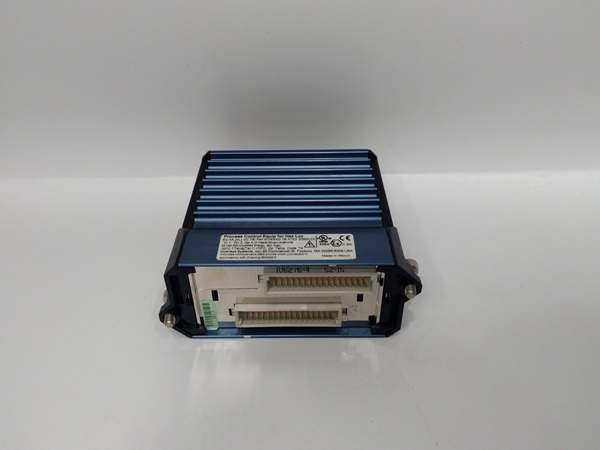

FOXBORO FBM237
Field Service Pitfalls: What Rookies Get Wrong
Exceeding Load Resistance LimitsRookies wire multiple control valves in series or add excessive resistance in the loop. Total resistance exceeds 750Ω, causing output voltage saturation and incorrect valve positioning.
- Field Rule: Calculate total loop resistance including valve positioner input resistance and cable resistance. Keep total under 750Ω per channel. For long cable runs, use larger gauge wire to minimize resistance.
Mixed Grounding on Isolated OutputsNew engineers ground the loop return side at both the module and the field device. Ground potential differences create circulating currents through the isolation barrier, corrupting output signals and causing valve position errors.
- Quick Fix: For isolated outputs, ground the loop return at the module end only. If the field device requires grounding, use an external isolator or verify grounding potentials are within 1V.
Ignoring Diagnostic Alarms During CommissioningTechnicians ignore initial diagnostic alarms during startup, assuming they’re temporary wiring issues. Unaddressed diagnostics indicate real problems like open circuits or shorted loops that cause process upsets later.
- Field Rule: Address all diagnostic alarms immediately during commissioning using the I/A Series diagnostic tools. Verify each channel operates correctly before putting the loop into service. Document alarm conditions and resolutions for future reference.
Improper Cable Sizing for Long RunsRookies use undersized wire for long-distance valve runs. Excessive resistance causes voltage drops, limiting output current and preventing full valve travel.
- Field Rule: Calculate voltage drop based on cable length and gauge. Use larger gauge wire (14 AWG or lower) for runs over 500 feet to minimize resistance. Verify output current reaches 20mA at the valve under full load.
